Home > Products > AC CHARGER > Electric Car Battery Power Charging Station Fast AC 32A Portable EV Charger Type 2
Electric Car Battery Power Charging Station Fast AC 32A Portable EV Charger Type 2
- 10000 Piece / Pieces per Month
- SHENZHEN
- T/T
- 30 days
- Battery Home Wall Travel AC mobile phone with the data cord
- 10 in 1 universal usb multi charger cable (2014 NEW Type USB Travel Charger)
- wireless android tablet charger (2014 NEW Type Travel Charger)
- multi travel battery charger for mobel phone (2014 NEW Type Travel Charger)
- 2014 newest mobile phone batery charger Ten years of production experience
- Good quality zhongshan mobile phone battery charger 2.1mA 3.1mA
Product Details
Brand Name: | Electrical hunt | Place of Origin: | China | Model Number: | NKR-AC002-014KW |
Type: | Electric | Use: | Other, ELECTRIC VEHICLE |
Product Description

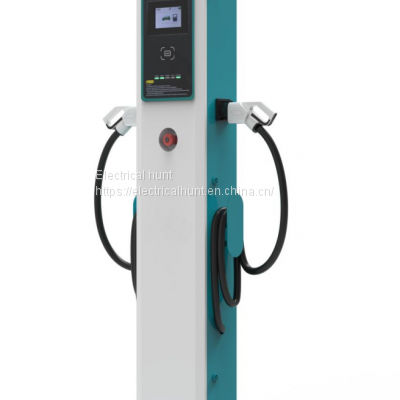

Power smart pedestal EV charger is designed to have 2 outputs, it is available for 2*7KW and 2*22KW, it is able to charge two electric vehicles simultaneously. The floor-stand design with dual charging tethered, which is convenient to use.
Compliant with the industrial standards, the charger use MID certified meter to ensure accuracy and built-in RCD to secure safety. The charger also includesType B 30mA AC+6mA DC leakage detection.
The charger can be connected to a charging network. Multiple public chargers in one location can be integrated in the network with only one internet communication connection. Thanks to open charge protocol OCPP 1.6, the charger operation and status is monitored and controlled by existing backend or central management system.
Innovativeness
One charger with two output tethered, for business use with intelligent APP control Vandal resistant and anti-corrosion
Intelligent Control
Ethernet/4G/Wi-Fi communication all supported OCPP communication protocol with CMS Intelligent operation by APP and cashless payment
Adjustable current
16A or 32A adjustable output current
Flexible Option
APP operation or RFID authentication or plug and play Customization with different color painting
Secure and Safe
Type B 30mA AC+6mA DC RCD residual current protection MID certified energy meter with accurate measurement
Specification | Model | NKR-AC002-014KW | NKR-AC002-044KW |
AC Nominal Input | Phases/Lines | 1 phase + netural+ PE | 3 phase + netural+ PE |
Voltage | 230V±10% | 400V ± 10% | |
Frequency | 50Hz | 50Hz | |
AC Nominal Output | Voltage | 230V±10% | 400V ± 10% |
Current | 2*32A | 2*32A | |
Power | 2*7KW | 2*22KW | |
Structure Design | Housing Material | Galvanized steel | |
Front Panel | Temper glass | ||
Installation Method | Floor-stand | ||
Charging Outlet | Type 2 | ||
Cable Length | 4.2m | ||
LED Indicator | Green/Yellow/Red color for different status | ||
LCD Screen | 5 inch LCD | ||
Emergency Stop Button | Yes | ||

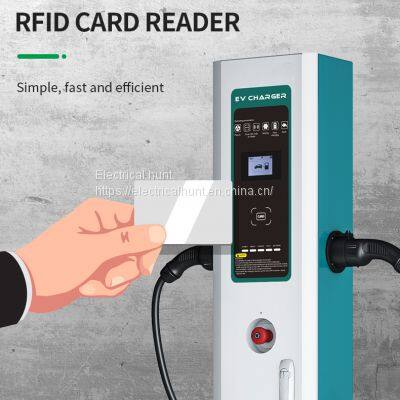

RFID Function | Yes | ||
RFID Card | 2pcs Mifare card | ||
Energy Meter | MID certified | ||
RCD | Type B 30mA AC+6mA DC | ||
Communication | Network Gateway | Ethernet (wifi/4g as option) | |
Communication Protocol | OCPP1.6(JSON) | ||
Environmental Index | Operating Temperature | - 30~ + 50℃ | |
Working Humidity | 5%~95% without condensation | ||
Working Altitude | <2000M | ||
Protection Grade | IP55 | ||
Application Site | Indoor/Outdoor | ||
Cooling Method | Natural cooling | ||
Security Protection | Multiple Protection | Over/Under voltage protection,Overload protection,Short circuit protection,Current leakage protection,Grounding protection,Surge protection,Over/Under temperature protection | |
MTBF | 100,000 hours | ||
Safety Standard | IEC61851-1/2017 | ||
Warranty | 2 years | ||
Package Information | Product Dimension | H163*W28*T19cm | |
Package Dimension | H180*W30*T21cm | ||
Net Weight | 53KG | ||
Gross Weight | 63KG | ||
External Packing | Wooden case |
