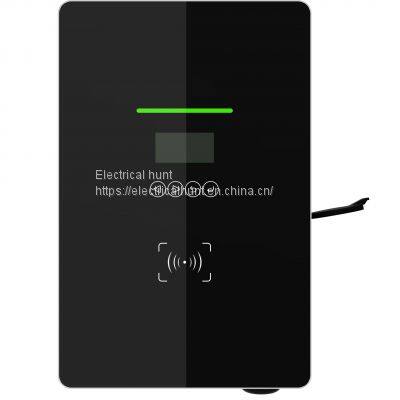

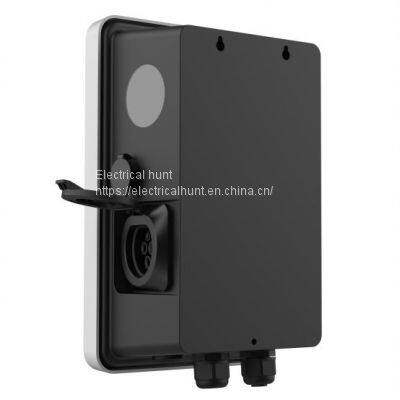

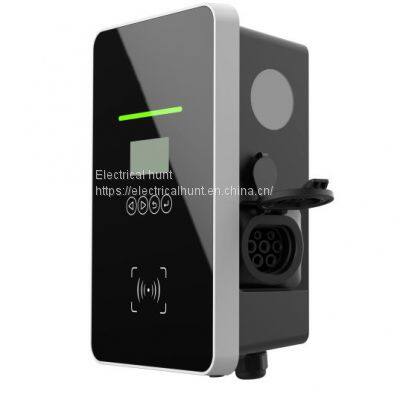

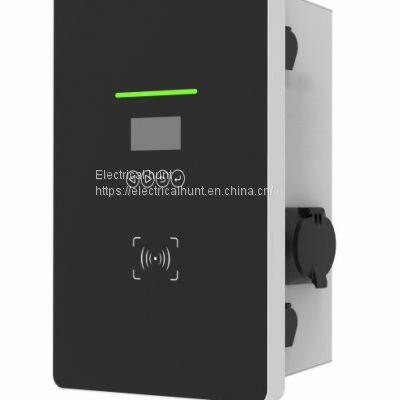

The IronMan smart commercial charger is designed for public use with RFID authorization. Equipped with a type 2 charging socket, the charger is compatible with either type 1 or type 2 cable, it is available for 7KW and 22KW.
Compliant with the industrial standards, the charger use MID certified meter to ensure accuracy and built-in RCD to secure safety. The charger also includes 6mA DC leakage detection, which eliminates the need for an expensive up cost of RCD type B.
The charger can be connected to a charging network with the help of build-in communication module through 4G/WIFI/Ethernet. Thanks to open charge protocol OCPP 1.6, the charger operation and status is monitored and controlled by existing backend or central management system.
Innovativeness
Temper glass panel, modern design
Business use with intelligent App control
WiFi Mesh technique, saving cost on wire installation
Intelligent Control
Wireless communication (Wi-Fi/Bluetooth), Ethernet/4G optional OCPP communication protocol with CMS
Intelligent operation by App and cashless payment
Adjustable current
16A or 32A adjustable output current
Flexible Option
Universal Type 2 socket, optional with Type 1/Type 2 charging cable APP operation or RFID authentication or plug and play Wall-mount or floor-stand installation
Secure and Safe
RCD Type A and 6mA DC residual current protection MID certified energy meter with accurate measurement.
| Specification | Model | AC7000-34 | AC022K-34 |
| AC Nominal Input | Phases/Lines | 1 phase + netural+ PE | 3 phase + netural+ PE |
| Voltage | 230V±10% | 400V±10% | |
| Frequency | 50Hz | 50Hz | |
| AC Nominal Output | Voltage | 230V±10% | 400V±10% |
| Current | 32A | 32A | |
| Power | 7KW | 22KW | |
| Structure Design | Housing Material | Plastic PC940 | Galvanized steel |
| Front Panel | Temper glass | Temper glass | |
| Housing color | Black or Black front+white back side | Black front+white back side | |
| Installation Method | Wall-mount/Floor-stand | Wall-mount | |
| Wall-mount Bracket | Not necessary | Yes | |
| Charging Outlet | One charging socket (Type 2) | ||
| Cable Length | No cable | ||
| LED Indicator | Green/Yellow/Red color for different status | ||
| LCD Screen | Display of charging data | ||
| Touch Buttons | 4 buttons for screen operation | ||
| RFID Function | Yes | ||
| RFID Card | 2pcs Mifare card | ||
| Energy Meter | MID certified | ||
| RCD | Type A+ 6mA DC | ||
| Communication | Charger v.s. Backend | WIFI (standard); 4G&Ethernet (option) | |
| Communication Protocol | OCPP1.6 (JSON) | ||
| Environmental Index | Operating Temperature | - 30~ + 50℃ | |
| Working Humidity | 5%~95% without condensation | ||
| Working Altitude | ＜2000M | ||
| Protection Grade | IP54 | ||
| Application Site | Indoor/Outdoor | ||
| Cooling Method | Natural cooling | ||
| Security Protection | Multiple Protection | Over/Under voltage protection,Overload protection,Short circuit protection,Current leakage protection,Grounding protection,Surge protection,Over/Under temperature protection | |
| MTBF | 100,000 hours | ||
| Safety Standard | IEC 61851-1:2017,IEC 62196-2:2016 | ||
| Warranty | 2 years | ||
| Package Information | Product Dimension | 356*221*136MM | 452*295*148MM |
| Package Dimension | 485*325*202MM | 560*380*210MM | |
| Net Weight | 3.0KG | 10KG | |
| Gross Weight | 4.5KG | 12KG | |
| External Packing | Carton | Carton | |
