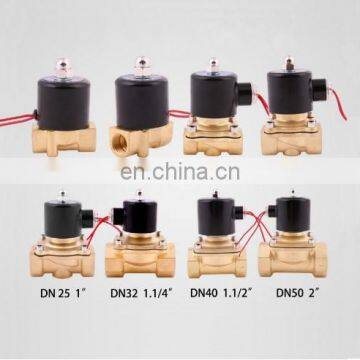

water solenoid valve brass stainless steel body 12v 24v 110v 220v micro solenoid valve
1, The direct-acting type diaphragm structure without
pressure to open .to extend the using field.
2, Using the plate diaphragm structure opening and closing
with reliable.Then extent the product life.
3 , Can choose plastic type ,explosion-proof energy-saving
micro solenoid valve
Model NO. |
2W-160-10 |
2W-160-15 |
2W-200-20 |
2W-250-25 |
2W-320-32 |
2W-400-40 |
2W-500-50 |
|
Pipe size |
3/8” |
1/2” |
3/4” |
1” |
1 1/4” |
1 1/2” |
2” |
|
Orifice size |
16mm |
16mm |
20mm |
25mm |
32mm |
40mm |
50mm |
|
CV value |
4.8 |
4.8 |
7.6 |
12 |
24 |
29 |
48 |
|
Medium |
Air ,water, oil, the neutral gas liquid |
|||||||
Service voltage |
AC380V AC220V AC11 OV AC24V DC24V DC12V(allow)±10% |
|||||||
operating |
Direct acting |
type |
Normally closed |
|||||
Body material |
Brass / Stainless steel |
viscosity |
Medium viscosity < 20 CST |
|||||
Working pressure |
Water, Air :0-10kgf/cm2 Oil:0-7kgf/cm2 |
|||||||
Sealing material |
standard: NBR for fluid Max temp. 80℃ optional: EPDM for fluid Max temp. 120℃ optional:. VITON for fluid Max temp. 150℃ |
|||||||
micro solenoid valve
Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer of electric valve
and manual valve, is a founding company of Tianjin Valve industry.Tianfei has a professional R & D team,has won many letters of petent and the recognition of the Tianjin municipal government departments.“CWX”is our brand and our company has passed theISO9001,CE,RoHS,NSF61 certificate and so on,the products have exported to many countries and regionsworldwide.
Our company motto is novative, simplified, high-valued, As having accumulated rich experiences and resources during more than 10 years developing,
we are confident inproviding you satisfied products and service in the cooperation. Tianfei pays attention to the quality of the products,use “CWX” valve is your correct choice. micro solenoid valve
1. Are you manufacturer or trading company?
We are manufacturer, we had been produced electric valve for more than 10 years. So we have advantage in price. We also could do OEM. micro solenoid valve
2. What's the payment method?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.
3.What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1piece. micro solenoid valve
4. What about the delivery time?
Sample need about 3 working days, large order delivery time will according to your quantity.
micro solenoid valve
5..Would you have a discount if l have a large order?
A; Yes we could offer different discount according to your order quantity.
6.Where is the factory located?
Tianjin city and welcome to visit our factory.
