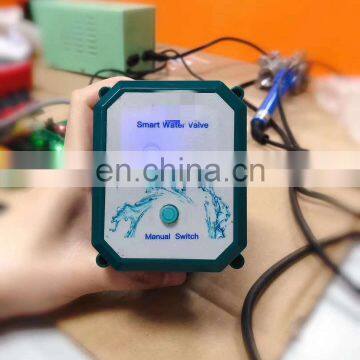

Smart Wifi Ball Valve CTF-001 10NM DN8 DN32 Ss304 UPVC DC5V Electric Tuya Smart Wifi Remote Control Ball Valve for Water
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
1993
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
24v Shut-off Valve CR01 CR02 Cr04 Cr05 BSP NPT SS304 Ctf-001 12v Motorized Ball ValveNegotiableMOQ: 1 -
UPVC Electric Shut off Valve 5v 12v 24v Cr04 Cr05 UPVC Ctf-001 Dn25 Dn50 2 Inch Pvc 2 Way Electric Shut off ValveNegotiableMOQ: 1
-
4-20ma 24V 12VDC Flow Control Valve Electric Proportional Motorized Modulating ValveNegotiableMOQ: 1
-
5V 12v 24v 110v 220v Stainless Steel PVC Motorized Valve ElectricNegotiableMOQ: 1
-
Motorized Actuator BSP NPT Motorized Ball Valve Pvc Electric Actuator Ball Valve Electric Pvc Ball ValveNegotiableMOQ: 1
CTF-001 10NM DN8 DN32 ss304 UPVC DC5V electric tuya smart wifi remote control ball valve for water
1) WIFI wireless connection;
2) 2.4G frequency transmission, in line with IEEE 802.11 b / g / n standard;

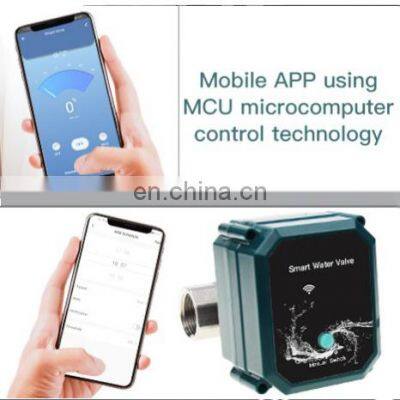

3) Mobile APP remote control;
4) Real-time status feedback;
5) Control accuracy: 0.5% ~ 1%;
6) Easy installation
7) The electric actuator has two working states: timing mode and angle adjustment mode;
|
Size |
DN8-DN32 |
Rated Voltage |
DC5V |
|
Output Torque |
10NM |
Open/close time |
<30s |
|
Transmission method |
WIFI |
WIFI Frequency |
2.4G |
|
Power |
<5W |
Working Current |
<200mA |
|
Medium Temperature |
0-90℃ |
Protection Class |
IP65 |
|
Body |
Seal |
Seat |
Ball |
|
Brass/SS304/UPVC |
Silica gel |
Teflon |
Brass/SS304/UPVC |
