Help CenterTTF F95 Mini Racing Drone FPV
Related Products
Highly integrated flight control system
High-performance OMNIBUS F3 FC
F3 flight controller
4- in-1 BLHeli - S ESC
excellent brushless UAV

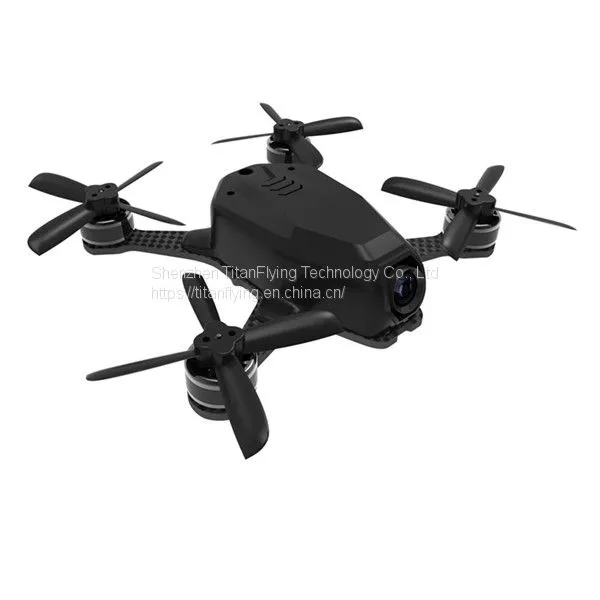

Description of Mini Racing Drone F95
Mini F95 with a wheelbase of 95mm, is one of the excellent brushless FPV racing drones for sale dedicated to indoor racing. It has a highly integrated flight control system - the F3 flight controller is connected to the 4-in-1 BLHeli - S 10A ESC. In addition, the 5.8G 48CH 25mW video transmitter has been integrated to the flight controller, making it even more compact and lighter. You can also take advantage of DShot600 digital signals to gain the superior and accurate control of the multicopper. Just add a battery and receiver, and you can have fun flying. Add FPV gear for more extreme drone FPV racing. An excellent system to keep you on the move.
Main Features of Mini Racing Drone F95
● 95mm mini palm-sized RC racing drone, only weighs 45g with propeller guards and landing struts
● High-performance OMNIBUS F3 FC has STM32F303 MCU, MPU6000, integrated VTX, OSD, 5V 1A BEC
● 4-in-1 BLHeli - S 10A ESC uses the EFM8BB2 processor, 3-in-1 MOSFET driver and supports DShot600 etc.
● 600TVL camera, 5.8G real-time FPV, 48 channels, including Race Band ( Band E ) for maximum immersion

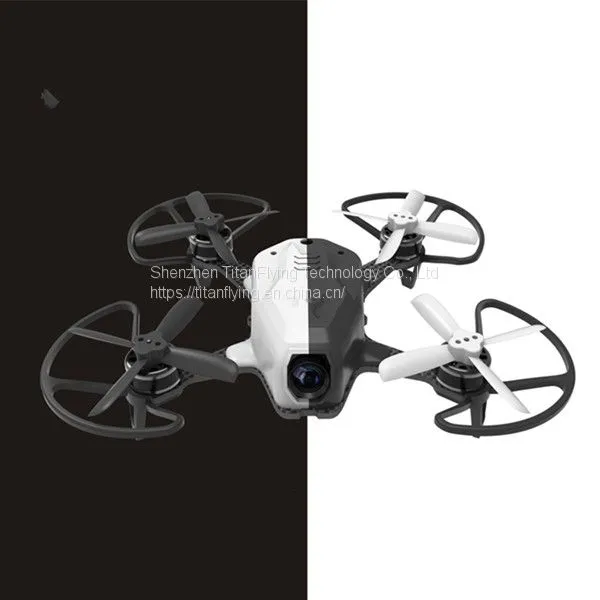

PP environmental protection material of the professional race drone with good toughness and resistance to fall with three colors to optional.
Motor: TTF1103-7500KV
Precision CNC aluminum alloy shell, anodic oxidation treatment. 420F stainless steel shaft, 2.0mm and HRC 50 hardness, QA anaerobic red pure copper enameled wire, working under 155-degree C. Unique production process, balance test
High quality Japan imported NMB bearing.
304 stainless steel U-shaped retaining spring.
Leakage test on each product.
F3 flight controller
OMNIBUS F3 firmware
Integrated BetaFlight OSD,
5V 1A BEC & filter
5.8G 48ch 25Mw VTX
4- in-1 BLHeli - S ESC
DShot600, Multishift, One-shot
2-3S LiPo support
4 x 12A burst current
Camera
600TVL CMOS camera
5.8G 48CH 25Mw vtx
3dBi whip antenna
Perfect angle (15-degree) for racing FPV
General |
Brand: TTF F95 Type: Frame Kit Version: BNF |
Motor |
Model: TTF1103-7500KV Brushless Motor NO. of Cells: 2-4S LIPO CW/CCW |
Flight Controller |
Omnibus F3 Integrated with 5.8G FPV transmitter Supporting CleanFlight |
Camera |
Video Resolution: 600TVL (horizontal resolution) Video Standards: PAL Sensor: CMOS |
ESC |
Firmware: 4- in 1 BLHeli-S 10A Functions: DShot600, Multishift, Oneshot125, Oneshot42 |
Battery |
Battery (mAh): 500mAh Battery Coulomb: 25C Flying Time: 4 mins Charging Time: 30 mins |
Package |
Product Weight: 0.045kg Package Weight: 0.145kg Product Size: 14*12*4 cm Package Size: 17*13*5 cm |
Package Contents |
Package Contents: 1 x Drone( battery Included), 8 x Propeller, 4 x Propeller Guard |
Established in 2002, Shenzhen TitanFlying Technology Co., Ltd (TTF) is located in Shenzhen University Town, known as the Silicon Valley of China. TTF has more than 20 years' experience on mechanical processing.
