Help CenterTTF F220 FPV Racing Quadcopter
Related Products
5-in-1 highly integrated flight control system
1000m long-distance control
3K full carbon fiber airframe
700TVL camera and 5.8G 32CH 600mW
11.1V 1500mAh 25C 3S LiPo
Main features of fpv racing quadcopter
- 3K full carbon fiber airframe, lightweight, robust and impact-resistant
- 700TVL camera and 5.8G 32CH 600mW presents 1020 x 596px image to you in the real time
- 5-in-1 highly integrated flight control system, including buzzer and LED taillight
- 1000m long-distance control with FLYSKY FS - i6 transmitter and 6CH receiver
- 11.1V 1500mAh 25C 3S LiPo offers you about 10 minutes' furious flight
Motor: TTF2205-2300KV
F220 FPV racing quadcopter for sale, as the professional race drone, comes with racing brushless motor 2205, a practical motor in FPV drone racing field, and 2600KV, a new racing KV.
BLHELI-S 20A ESC
High TG PCB board, blind vies, copper thickness reaches 30Z, with an excellent discharge capacity using 21 Japanese TDK capacitors, Toshiba’s top MOS tube. Flight support 4S maximum voltage, single ESC can reach 40A maximum electric current. The processor adopts EFM8BB2 and independent motor driver chip. Comprehensive performance is very excellent, ESC performance ranks top level in the market. PCB board supplier is the same with DJI’s, with very excellent process performance.
Quadcopter Racing Drone
The best budget FPV quadcopter Equipped with mainstream Omnibus F3 flight controller, which enables players to perform autonomous tuning. Provided with PPM/SBUS receiver connector, the flight controller enables DIY players to install 3rd-party receivers that are controllable using 3rd-party remote control.
RC Racing Quadcopter's Camera
F220 RC racing quadcopter equipped with HD Aerial camera, Lens 700TVL, working voltage: 12VDC.
The angle of the camera can be adjusted to yourself to get a better view.
LED Lights
In a multiplayer game, you can easily distinguish your flying machine to avoid rear end collision or other accident. By using remote control or the PDB comes with LED, you can switch mode status light easily. By turning switchover, you can switch three different modes: light up, fast flash and slow flash; turning off and switching machine tracking mode into fast flash, you can easily find your machine
General |
Brand: TTF F220 Version: RTF |
Motor |
Model: TTF2205-2300KV Brushless Motor NO. of Cells: 2-4S LIPO CW/CCW Max Thrust: 440g/ piece |
Flight Controller |
Omnibus F3 Integrated with 5.8G FPV transmitter Supporting CleanFlight |
Camera |
Video Resolution: 700TVL (horizontal resolution) Video Standards: PAL |
ESC |
Firmware: 4- in 1 BLHeli-S 20A 2-4S |
Remote |
Channel: 6- Channels Remote: 2.4GHz Wireless Radio Control Mode: Mode 2 (Left Hand Throttle) Detailed Control Distance: About 1000m Transmitter Power: 4 x 1.5V AA (not included) Model Power: Rechargeable Battery |
Battery |
Battery(mAH): 1500 maH Battery Voltage: 3S Battery Coulomb: 25C Flying Time: About 10 mins Charging Time: 60 minutes |
Package |
Product Weight: 0.35kg Package Weight: 1.57kg Product Size: 20*17*4.5 cm Package Size: 26*24*13 cm |
Package Contents |

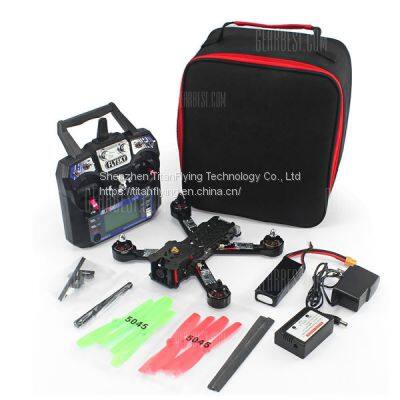

Package Contents: 1 x RC Drone (with Receiver), 1 x Transmitter, 1 x 11.1V 1500 mAh 25C LIPO Battery, 1 x Balance Charger, 1 x Power Adapter, 1 x Antenna, 8 x Propeller, 1 x Pack of Accessories, 1 x English Manual, 1 x Carrying Case |
