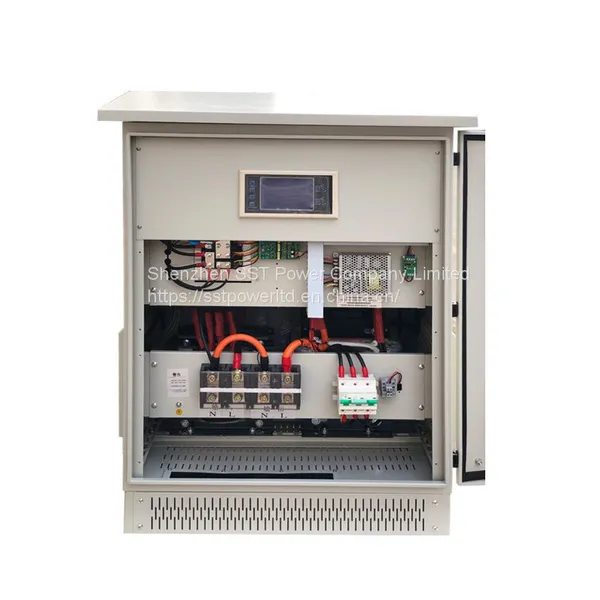

3 Phase 20KVA to 80KVA Static Voltage Stabilizer Outdoor Type IP54 Noncontact AVR

Product               ： ZW-S Three Phase Static Voltage Stabilizer

Model                 ： ZW-S10kVA-4000kVA-IP54

Input Voltage     ： 3 x 380VAC (3Phase + N)(208V,220V, 230V, 400V, 415V option)

Input Range       ： ±15%~60%(Can be customized)

Output Voltage  ：  3 x 380VAC (3Phase + N)(208V,220V, 230V, 400V, 415V option)

Output Accuracy： ±1%/±2%/±3%/±5%( Can be adjusted)

Phase                  ： Three Phase

1.Product Introduction

Outdoor voltage stabilizer, also known as three-proof voltage stabilizer, is used to be exposed to nature and has the characteristics of rainproof, dustproof, explosion-proof, and anti-corrosion. This machine adopts microcomputer thyristor integrated circuit to control the voltage stabilization range up to +60%, the efficiency is as high as 99%, and the voltage stabilization precision is higher than 0.5% to 1%

2. Working Environment

Ambient temperature: -15°C~+40°C

Relative humidity; ≤90%

Altitude: ≤1000m

No vibration or bumps in the installation site

There is no gas, steam, chemically deposited dust, dirt and other explosive and corrosive media that seriously affect the voltage and insulation.

3. Application

This product is widely used for national defense, mechanical processing equipment, transportation, communications, scientific research, industry, transportation, railways, large electromechanical equipment, metal processing equipment, CNC machine tools, printing machines, laser cutting machines, production lines, construction engineering equipment, elevators, medical equipment, Embroidery textile equipment, air-conditioning, radio and television, household appliances, lighting, new energy and other power-consuming occasions that need to be stabilized.

4. Features

●   Fast Response

     Response time within 40 millisecond.

●  Wide Input Voltage Swing Ranges

      Input Range  can be customized from - ±15% to ±60%

●  High Precision for the Output Voltage

     Output Voltage Accuracy could be ±1% (±1% to ±5% adjustable)

●  Multi-protection Design

    Highly reliable and endurable design.   With the protection of over-voltage, under-voltage ,over-load, short-circuit, automatic bypass.

●  Independent Phase Control

    Three - phase input and output  are adjusted separately to achieve balance so that the equipment can operate normally. This type voltage stabilizer has higher accuracy and more stable operation.
