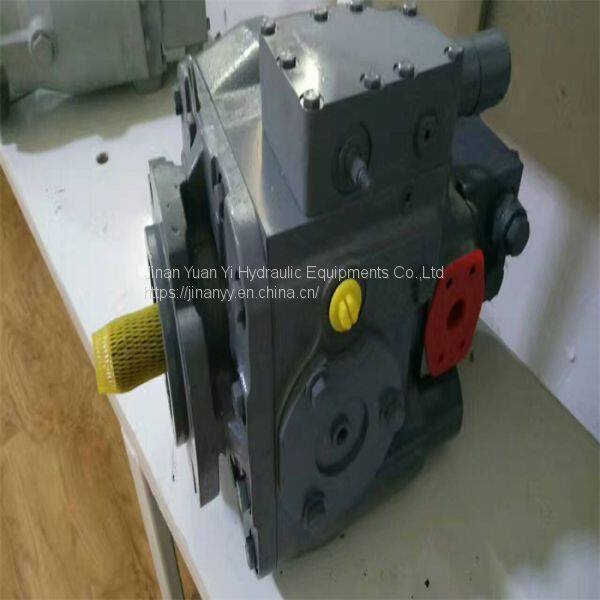

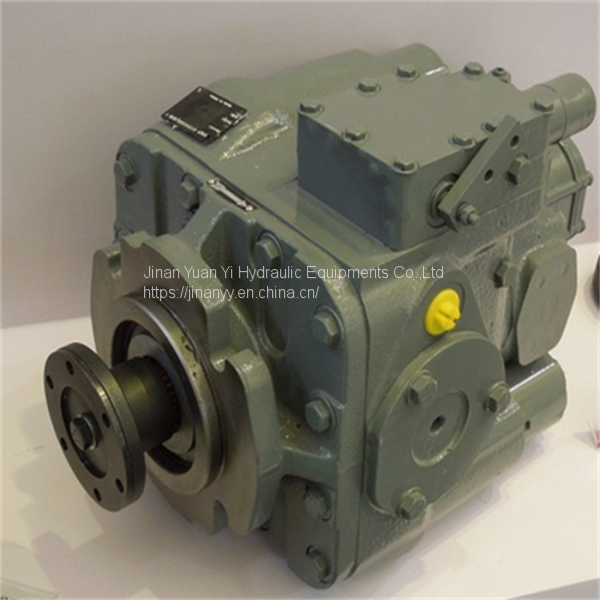

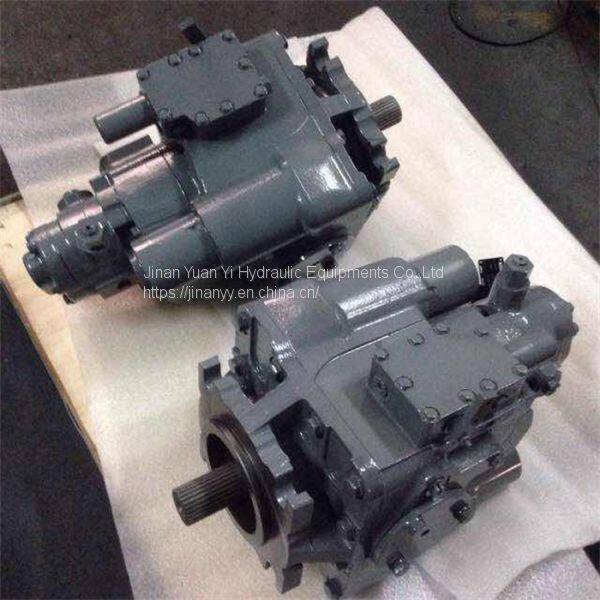

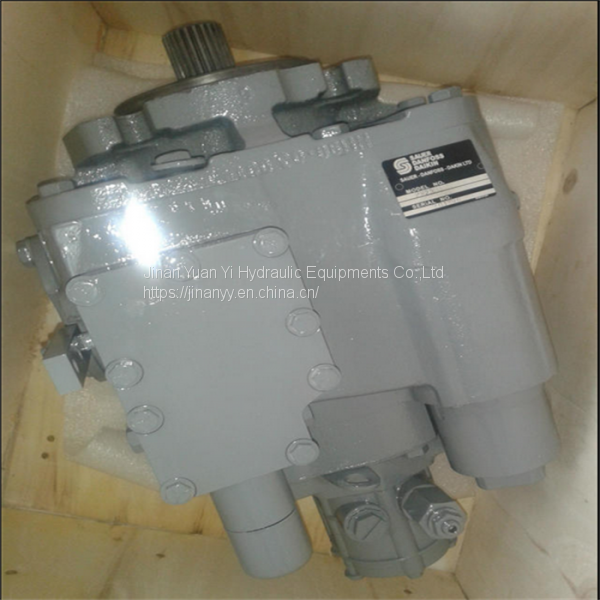

Sauer Danfoss PV23 Variable Hydraulic Piston Pump,PV23 Hydraulic Pump For Concrete Mixer

Sauer Danfoss PV23 Variable Hydraulic Piston Pump,PV23 Hydraulic Pump For Concrete Mixer

Concrete Trucks PV23 Variable Pumps PV23 Hydraulic Pumps

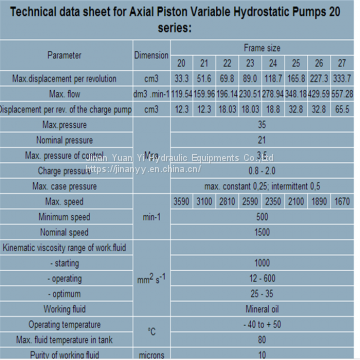

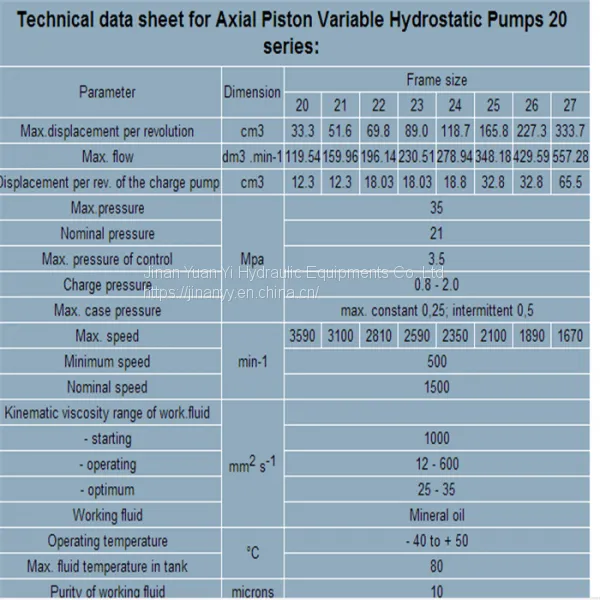

Parameter

 PV Series 20 21 22 23 24 25 26 27

 Max Displacement (cm3) 33 52 70 89 119 166 227 334

 Max Flow (L/min) 120 160 196 231 279 348 430 557

 Power (kw) 70 93 114 134 163 203 --- 325

Weight (kg) 45 55 63 78 124 164 212 270

Product Description

1. Heavy duty hydraulic piston motor

2. Completely interchangeable with original

3.Low-noise, high efficiency, high reliability, long life

4. Very comeptitive price

5. Widely applicable for agricultrual machinery, combine harvester, engineering machinery, mining machinery, industrial machinery, aviation and transport machinery etc.

6. The hydrostatic hydraulic transmission drive in close system, consisting of SAUER PV20/21/22/23/24 serie heavy duty piston pump and motor can work continuously with pressure 21Mpa under max. speed.

7. Peak pressure of system is up to 35Mpa, and min. pressure is 0.9Mpa higher than housing pressure.

8. Max. housing working presssure is 0.28Mpa.

9. Set pressure of charging relief valve of pump and motor are respectively 1.31- 1.45Mpa and 1.10-1.24Mpa higher than housing pressure, and max. oil temperature is 80°C

10.1 year of warranty

Related Products

 Piston Pump and Motor Assemble Catalogue

 Brand Number Displacement

 Rexroth A4VSO 40/ 71/ 125/ 180/ 250/ 355

 A2FE 28/ 32/ 45/ 56/ 63/ 80/ 90/ 107/ 125/ 160/ 180/ 250/ 355

 A2FO 10/ 12/ 16/ 23/ 32/ 45/ 56/ 63/ 80/ 107/ 125/ 160/ 180/ 200/ 250/ 355

 A2FM 12/ 23/ 28/ 32/ 45/ 56/ 80/ 107/ 125/ 160/ 180/ 200/ 225/ 250

 A2F 12/ 25/ 55/ 63/ 80/ 107/ 160/ 200/ 355

 A6VM 55/ 80/ 107/ 160/ 200/ 250/ 350

 A7VO 28/ 55/ 80/ 107/ 160/ 200/ 250

 A6VE 28/ 55/ 80/ 107/ 160

 A8VO/ A8V 55/ 80/ 107/ 140/ 200

 A4VG 28/ 40/ 45/ 50/ 56/ 71/ 90/ 125/ 180/ 250

 A11V(L)O 130/ 190/ 260

 A10VG 18/ 28/ 45/ 63

 A7V 28/ 55/ 80/ 107/ 160/ 225/ 250/ 355

 AP2D 12/ 18/ 25/ 32/ 36/ 42

 Brand Model Displacement

 Sauer PV Series 20/ 21/ 22/ 23/ 24

 MF Motor 20/ 21/ 22/ 23/ 24

 MV Motor 22/ 23

 90 Pump/ Motor 55/ 75/ 100/ 250

 Kawasaki K3V 63/ 112/ 140/ 180DT

 K5V 63/ 112/ 140/ 180DTP
