The Ceramic Lined Pipe
- 1000 Piece / Pieces per Month
- Shanghai
- T/T L/C
Product Details
Place of Origin: | China | Thickness: | 10, 50 | Surface Treatment: | Other, Alloy Rare Earth Wear Resistant |
Alloy Or Not: | Is Alloy | Special Pipe: | Thick Wall Pipe | ||
Section Shape: | Round | Outer Diameter: | 100, 1000 |
Product Description

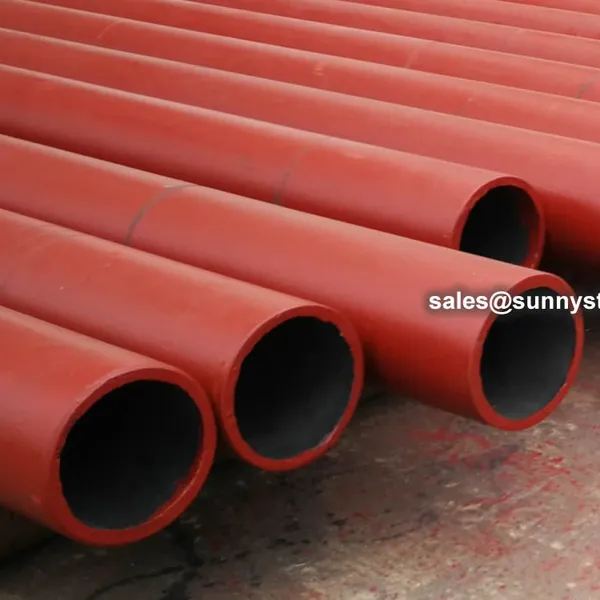

The ceramic lined pipe is a high performance pipe consisted of ceramic ring, seamless steel tube and adhesion agent. Ceramic lined pipes and fittings like ceramic bend, reducer and tee are manufactured by our plant. These ceramic lined system can provide excellent structural support and wear resistance, they are widely used in the heavy industries’ most difficult wear situation.

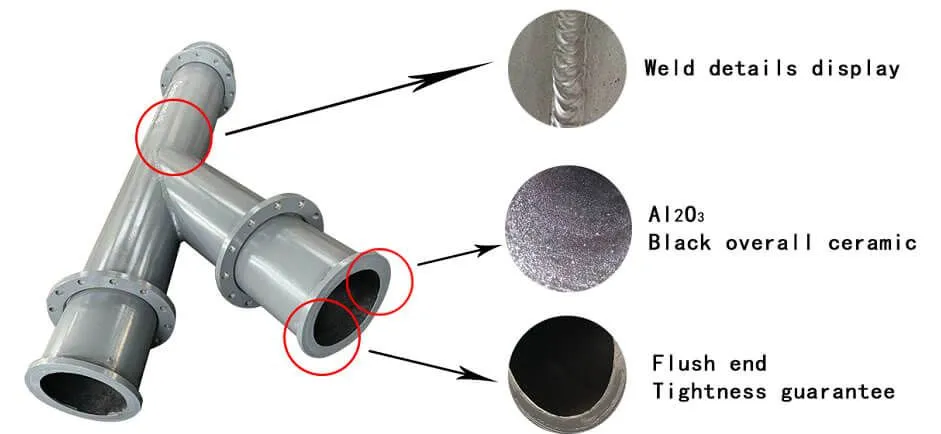

Pipe wyes and pipe tees
Pipe wyes are similar to pipe tees. The only difference is in that the branch line is angled to reduce friction which could hamper the flow. The pipe connection is typically at a 45-degree angle rather than a usual 90-degree angle. If a branch turns out at the end to be perpendicular to the through line, the pipe fitting becomes a “tee wye”.
Alumina is a cost effective and widely used material in the family of engineered ceramics. Alumina ceramics have been developed and optimized for maximum wear resistance and corrosion resistance.
A high density, diamond like hardness, fine grain structure and superior mechanical strength are the unique properties that make it the material of choice for a wide range of demanding applications. Ceramic has uses similar to Cast Basalt but it has greater resistance to wear in high velocity applications and impact resistance in extreme dynamic systems.
Technical details of ceramic lined pipe
Items | Index |
---|---|
Alumina content | 0.92 |
Bulk Density | 3.62g/cm³ |
Rockwell Hardness (HRA) | 90 |
Compressive Strength | 850MPa |
Fracture Toughness | 4.8MPa.M1/2 |
Bending Strength | 290MPa |
Thermal Conductivity 20℃ | 20W/m.k |
Coefficient of Thermal Expansion | 7.2×10-6m/×m.k |
Young's Modulus 20℃ | 277GPa |
Shear Modulus 20℃ | 113GPa |
Surface Finish: As Fired | 1.27mm |
Wear-resisting bend (wear resistant ceramic pipe)just as its name implies is a relatively traditional is more wear-resisting bend (wear resistant ceramic pipe), adopted the new wear-resistant plastic production, used in large industrial, currently occupies the market share of around 80%.
Backpack wear-resistant ceramic lined elbow for Pneumatic Conveying
Tubes and bends in pneumatic conveying lines are suffering more or less abrasion. SunnySteel’s ceramic lined pipes resists abrasion and avoids product attrition.It reduces considerabley degradation of conveyed material and avoids formation of angel hair through its patented deflection chamber.The compact design reduces cost of pipe support and installation. It is automatically self-purging with little pressure drop.
Ceramic Lined Elbows and Bends could be also applied in the parts of concrete pump owing to their advantages especially the low weight which helps to avoid the jam during the transport of concrete.
Features & Benefits:
The lining of the product is manufactured from alumina ceramics for engineering. Alumina ceramic material have a high hardness, and have a strong wear resistance.
As the amphoteric compound, the engineering ceramics will not chemically react with acid and alkali.
Since the density of the ceramic is just half that of the steel, the weight of the custom ceramic pipes and fittings is light,which contributes to easy installation.
10 to 1 life performance, reducing the maintenance cost, downtime and clean up
Application:
Replace carbon steel pipe, stainless steel pipe and SDR
High wear material discharge
Magnetite feed and drain lines
Tailing underflow
