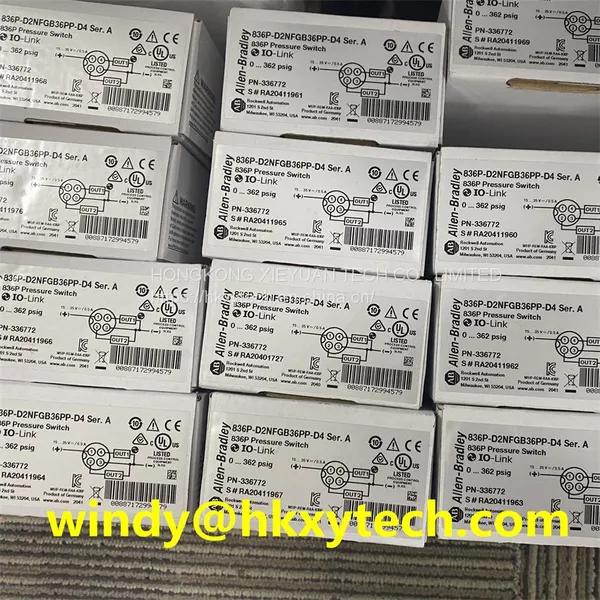

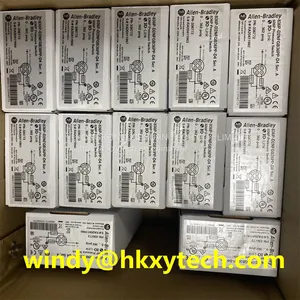

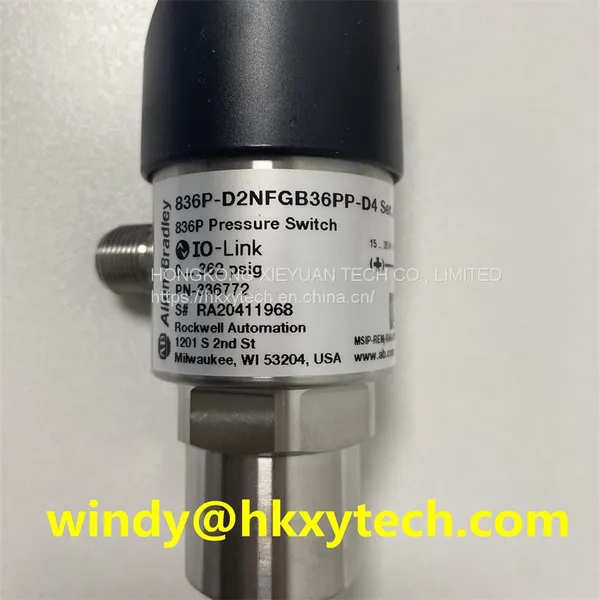

Allen-Bradley 836P-D2NFGB36PP 836P Solid-State Pressure Sensors With Good Price In Stock

Allen-Bradley 836P-D2NFGB36PP 836P Solid-State Pressure Sensors With Good Price In Stock

Rockwell Automation knows condition sensing controls are vital components in today’s control systems. High-accuracy, new technology and rigid standards are combined to manufacture these reliable worldclass products. Capable of measuring pressure of liquid or gases, the new

Allen-Bradley® Solid-State 836P Pressure Sensors are available in display and non-display models in rugged, compact housings with corrosionresistant 316L solid-state sensor elements. The display model features embedded IO-Link 1.1 communications protocol, which allows for easy integration with The Connected Enterprise while delivering data directly into a control system in a very cost-efficient and easy-to-use manner when connected to an IO-Link Master and EtherNet/IP.™ For easy on-machine programming, it can be configured manually as well as through the Studio 5000 Logix Designer® software.

With a rotatable housing (320°) and head (330°), the flexible 836P display model accommodates the most space-critical applications. And for even greater djustability, the large visual display can be rotated 180º. Additional features include pressure ranges from -1…551 bar (-14.5 psi to 8,000 psi), tactile push buttons for easy setup and an IP67 enclosure rating. These sensors have dual PNP or one PNP + one 4…20 mA output configurations and are in gauge, absolute and vacuum pressure measurement types with a large selection of process connections.

Flush mount and sanitary models are available to meet hygienic standards for the food and beverage, cosmetic and pharmaceutical industries.

The 836P non-display model offers a wide pressure range from -1…689 bar (-30 in. Hg to 10,000 psi) and has one of the the smallest footprints on the market, making it ideal for applications with limited mounting space. Non-display models have 4…20 mA analog outputs and an IP67 enclosure rating

Features and Benefits

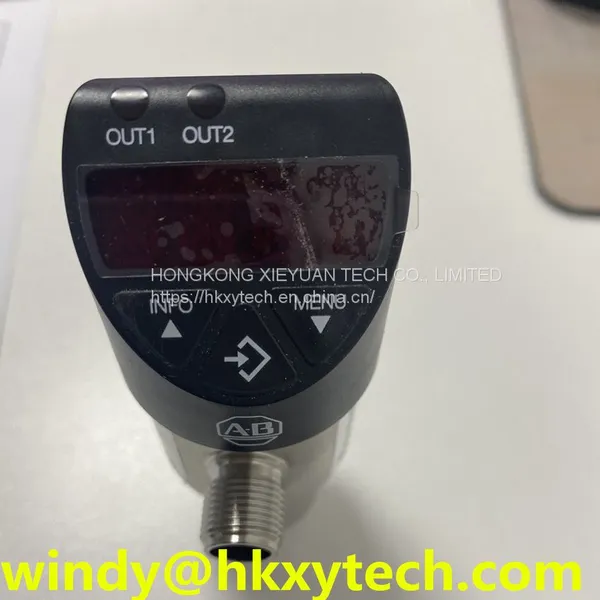

Display Model

• Pressure range: -1…551 bar (-14.5 to 8,000 psi)

• Embedded IO-Link communication protocol helps minimize downtime and increase productivity

• Available in various process connections to fit your application needs

• Flush mount option for viscous media

• Rotatable housing (320°) and head (330°) provide application flexibility

• IP67 enclosure rating

Flush Mount and Hygenic/ Sanitary Models

• Pressure range: -1…0 bar (-14.5 to 300 psi)

• Available with a 1.5" and 2" Tri-clamp® process connection (sanitary model only)

• 3-A® compliance

Non-Display Model

• Tough, miniature form factor – one of the smallest on the market

• Available in various process connections to fit your application needs

• -1…689 bar ( -30 in. Hg to 10,000 psi)

• IP67 enclosure rating

What is IO-Link?

IO-Link is a worldwide open-standard

protocol that allows sensors to easily

integrate into The Connected Enterprise.

Benefits of IO-Link technology include:

• Reduced inventory and operating costs

• Increased uptime/productivity

• Simplified design, installation,

setup and maintenance

836P-N2SMGC58A-D4

836P-N2SMGB14A-D4

836P-N2SMGB20A-D4

836P-N2SMGB25A-D4

836P-N2SMGB30A-D4

836P-N2SMGB36A-D4

836P-N2SMGB50A-D4

836P-N2SMGC10A-D4

836P-N2SMGC14A-D4

836P-N2SMGC20A-D4

836P-N2SMGC30A-D4

836P-N2SMGC36A-D4

836P-N2SMGC50A-D4

836P-N2SMGC80A-D4

836P-N2SMGA60A-D4

836P-N3GBGA14A-D4

836P-N3GBGA20A-D4

836P-N3GBGA30A-D4

836P-N3GBGA36A-D4

836P-N3GBGA60A-D4

836P-N3GBGB10A-D4

836P-N3GBGB14A-D4

836P-N3GBGB20A-D4

836P-N3GBGB25A-D4

836P-N3GBGB30A-D4

836P-N3GFGA14A-D4

836P-N3GFGA20A-D4

836P-N2SMGB10A-D4

836P-N2SMGA36A-D4

836P-N3GFGA36A-D4

836P-N2NMGC58A-D4

836P-N2NMGB14A-D4

836P-N2NMGB20A-D4

836P-N2NMGB25A-D4

836P-N2NMGB30A-D4

836P-N2NMGB36A-D4

836P-N2NMGB50A-D4

836P-N2NMGC10A-D4

836P-N2NMGC14A-D4

836P-N2NMGC20A-D4

836P-N2NMGC30A-D4

836P-N2NMGC36A-D4

836P-N2NMGC50A-D4

836P-N2NMGC80A-D4

836P-N2SMGA30A-D4

836P-N2SMAA14A-D4

836P-N2SMAA20A-D4

836P-N2SMAA30A-D4

836P-N2SMAA36A-D4
