high quality false ceiling access panels

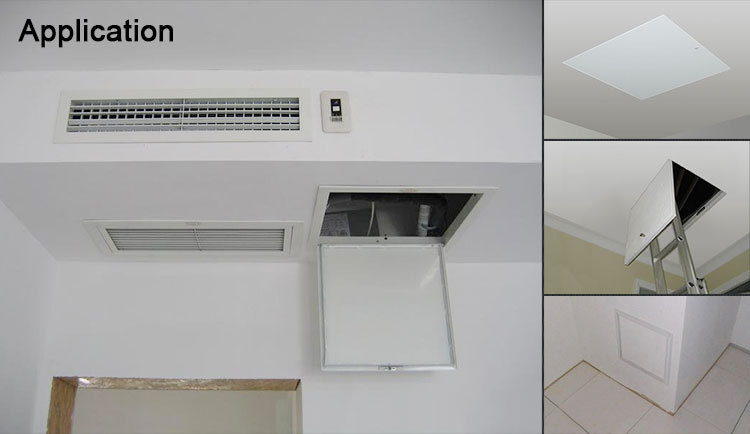

Application
Designed for use in acoustical plaster walls and ceilings
Product Features
Door is recessed 5/8" and is lined with self-furring lath
Expansion casing bead with 3" wide galvanized lath
Access Door Specifications:
Material: Steel or Stainless Steel: 16 gage door, 14 gage mounting frame
Door: Recessed 5/8" and lined with self-furring galvanized lath
Door Frame: Expansion casing bead with 3" wide galvanized lath, recessed 3/4" to receive plaster
Hinge: Concealed, pivoting rod type. (For wall applications, a continuous exposed piano hinge is suggested.)
Standard Latch:Flush to surface, screwdriver operated cam latch
Optional Latches/Locks:Cylinder lock and key, allen head cam latch, spanner head cam latch
Finish: Steel: 5-stage iron phosphate preparation with prime coat of White alkyd baked-on enamel
AVAILABLE SIZES(Special sizes available upon request)
Size:
Any size available
Standard size (Neck size=A)
Item Code |
size(mm) |
AD-GB-12 |
305x305 |
AD-GB-18 |
457x457 |
AD-GB-24 |
610x610 |
AD-GB-36 |
610x914 |
