The ANEVH（F） series is a programmable DC power supply that integrates DC power supply and feedback load, which can be used as a “source” and output power; or used as load to realize sink function, absorbing power and returning to the grid cleanly; standard dual-quadrant operation.
The ANEVH（F） series programmable bidirectional DC test power supply covers 8 voltage levels, covering 0V-2250V, supporting multiple parallel machines, and the power can be expanded up to 1MW; bidirectional energy flow, automatic seamless switching, high power density, fast dynamic response, built-in function generator and standard test curve to generate a variety of waves, excellent characteristics and rich test functions, suitable for testing applications in laboratory, automotive electronics, new energy three power, micro-grid, high-power test and other applications.
Integrating source and load functions into one, full series 3U standard chassis.
High-frequency PWM rectification and bidirectional DCDC technology, completely eliminate the noise of conventional high-power bidirectional power supply, quiet power supply.
Higher power density, compact, high speed.

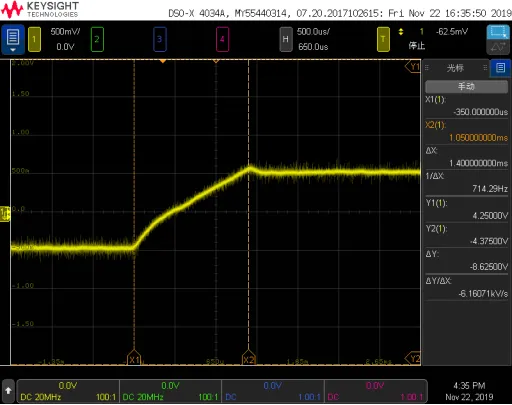

The maximum current switching time in the positive direction is as low as 1.4ms
Energy flow in both directions, automatically and seamlessly forward/reverse switching.
Feedback efficiency up to 95%, energy saving, environment protection.
Voltage: 8 levels, covering 0-2250V, industrial highest voltage level, unique high-voltage series.
Current: 0-2160A.
Built-in function generator, support arbitrary wave generation.
Built-in voltage curves for DIN40839, ISO-16750-2 and ISO21848 standard automotive grids.
Comprehensive OTP, OVP, OCP, OPP protection.
S terminal compensation
- Application
Micro-grid and micro-inverter testing
Automotive motor, controller and power battery testing
Fuel cell test, fuel cell DCDC test
UPS, on-board charger (OBC), charging spot, bidirectional DC-DC test
Industrial testing for electrolysis, electroplating, welding, etc.
Testing of communication power supply, LED product
Testing of automotive electronics, avionics
High power test, DC feedback load demand application
- Ordering and function expansion
ANEVH80-120（F）：80V/120A/5kW
ANEVH80-240（F）: 80V/240A/10kW
ANEVH80-360（F）: 80V/360A/15kW
ANEVH200-70（F）: 200V/70A/5kW
ANEVH200-140（F）: 200V/140A/10kW
ANEVH200-210（F）: 200V/210A/15kW
ANEVH360-40（F）: 360V/40A/5kW
ANEVH360-80（F）: 360V/80A/10kW
ANEVH360-120（F）: 360V/120A/15kW
ANEVH500-35（F）: 500V/35A/5kW
ANEVH500-70（F）: 500V/70A/10kW
ANEVH500-105（F）: 500V/105A/15kW
ANEVH750-25（F）: 750V/25A/5kW
ANEVH750-50（F）: 750V/50A/10kW
ANEVH750-75（F）: 750V/75A/15kW
ANEVH1000-40（F）: 1000V/40A/10kW
ANEVH1500-35（F）: 1500V/35A/15kW
ANEVH2250-25（F）: 2250V/25A/15kW
Ainuo Instrument Co., Ltd., a professional designer and manufacturer of test equipment, instrument and meters, power supply equipment, automatic test system, etc., was established in 1993. We are expert in supplying professional test equipment, power supply, test and power supply solution for institutes of Quality Inspection, Commodity Inspection and Measurement dept. etc. & industries of electrical appliance, power supply and motor manufacturing industries.
Ainuo mainly has 10 product series:
1. Photovoltaic and Inverter Test Solution;
2.Battery test solution
3.Power supply test solution;
4. Household appliance test solution;
5. Motor and transformer test solution;
6. Aviation power supply and test solution
7.Special power supply and test solution;
8. Electrical safety test solution;
9. Power electronics test solution;
10. Quality Inspection Institute Test Solution.
With high quality products and good service, Ainuo products are widely used in industries of home and commercial appliance, motor, electric tools, charger, electronic transformer, switching power supply, electronic devices and components, luminaire, low-voltage distribution, communication, aviation and areo-space, national defense field and institutes of national measurement, quality inspection and commodity inspection, etc. We win the long-term trust and cooperation of up to several tens of thousand of clients, such as Haier, Media, Gree, Hisense, Changhong, AOC, GE, Philips, Panasonic, Electrolus and so on.
Ainuo mission is to "Be an enterprise with great sense of responsibility, adopt advanced technology and manage scientificly, satisfy clients" needs with quality and intelligent products, improve efficiency and perfect quality requirement.
