ANELF（F） series fuel cell dedicated DC electronic load is an energy feedback DC electronic load developed for testing of fuel cell stack, fuel cell engine system, fuel cell backup power supply, etc. It adopts high-frequency PWM rectification and bidirectional DCDC conversion, FPGA digital control, ultra-high control accuracy, fast response, energy feedback to the grid at full power; advanced digital control, it can achieve full range of input from 0V to full scale. Low voltage large current load input characteristics and energy feedback, suitable for testing of fuel cell stacks and fuel cell engine systems etc.

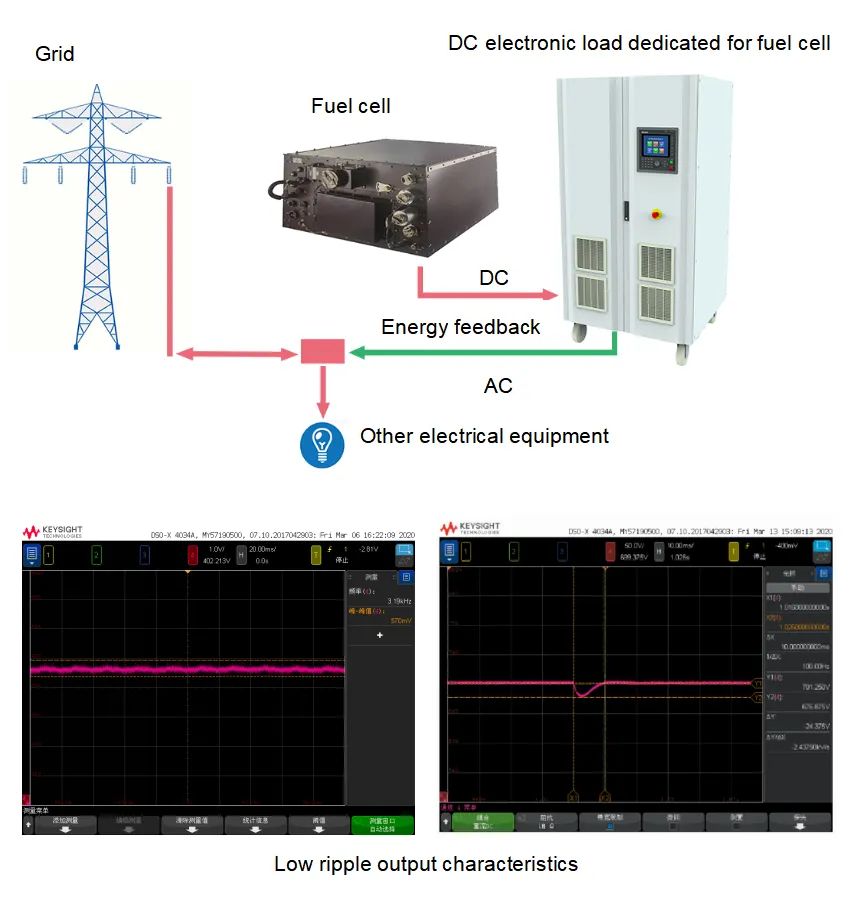

FeaturesTwo-stage circuit of PWM rectification and bidirectional DCDC, achieving load of automatic energy feedback to the grid, energy saving, green and environment protection.
Mainstream high-frequency PWM rectification control, power factor ≥0.99, THD and injected harmonic current meet the requirements of GB/T14549-93, high-quality energy feedback to the grid.
Optimized bidirectional DCDC conversion, wider range of DC input voltage, 0V-full scale DC input.
High-precision output: accuracy of voltage and current: ±0.1% F.S.
Fast dynamic response: response time for 10%-90% sudden applied load and 90%-10% sudden shedding load: ≤5ms
For testing of fuel cell industry, advanced IGBT parallel technology, low voltage large current stable control.
CC, CV, CP modes.
Multi protection: input over-voltage/under-voltage, lack phase, output over voltage, IGBT overheat, IGBT over current, over temperature protection, short circuit current-limiting protection.
Built-in EMI filter to filter the interference signal caused by the high-frequency switching process.
Communication and remote control: standard CAN, RS232/RS485 port and remote control software of the upper computer.
Strict heat management, stable and reliable.
Large-screen LCD display, compatible with buttons and touch screen, suitable for operation under various harsh operating conditions.
Screen (key) lock: After the power supply is not operated for more than 5 minutes, the keyboard and input of touch screen will automatically be locked.
Ainuo Instrument Co., Ltd., a professional designer and manufacturer of test equipment, instrument and meters, power supply equipment, automatic test system, etc., was established in 1993. We are expert in supplying professional test equipment, power supply, test and power supply solution for institutes of Quality Inspection, Commodity Inspection and Measurement dept. etc. & industries of electrical appliance, power supply and motor manufacturing industries.
Ainuo mainly has 10 product series:
1. Photovoltaic and Inverter Test Solution;
2.Battery test solution
3.Power supply test solution;
4. Household appliance test solution;
5. Motor and transformer test solution;
6. Aviation power supply and test solution
7.Special power supply and test solution;
8. Electrical safety test solution;
9. Power electronics test solution;
10. Quality Inspection Institute Test Solution.
With high quality products and good service, Ainuo products are widely used in industries of home and commercial appliance, motor, electric tools, charger, electronic transformer, switching power supply, electronic devices and components, luminaire, low-voltage distribution, communication, aviation and areo-space, national defense field and institutes of national measurement, quality inspection and commodity inspection, etc. We win the long-term trust and cooperation of up to several tens of thousand of clients, such as Haier, Media, Gree, Hisense, Changhong, AOC, GE, Philips, Panasonic, Electrolus and so on.
Ainuo mission is to "Be an enterprise with great sense of responsibility, adopt advanced technology and manage scientificly, satisfy clients" needs with quality and intelligent products, improve efficiency and perfect quality requirement.
