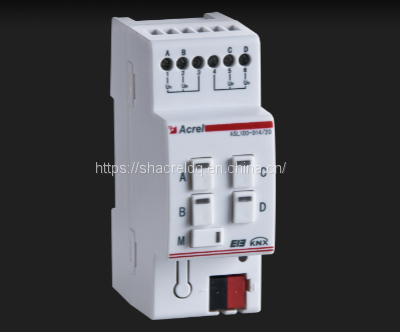

ASL100 Series of Dry Contact Input Module ASL100-DI4/20
Overview
ASL100-Dix/20 series of dry contact input module (hereinafter referred to as dry contact) is a binary input module based on Acrel-bus intelligent control system. The module is developed by Acrel and conforms to the rules of the enterprise standard Q31/0114000129C032-2017 ASL100 Intelligent Lighting Control System. European KNX communication bus is adopted in the product. The key on the dry contact is used as the input signal to switch the external control signal into the control signal conforming to KNX system. This dry contact module may dim the light, turn on or off the lamp according to the actual need. The latest single-chip microcomputer technology is adopted by the module. Thus, the module is highly stable and reliable to reliably guarantee the comfort and convenience in people's life

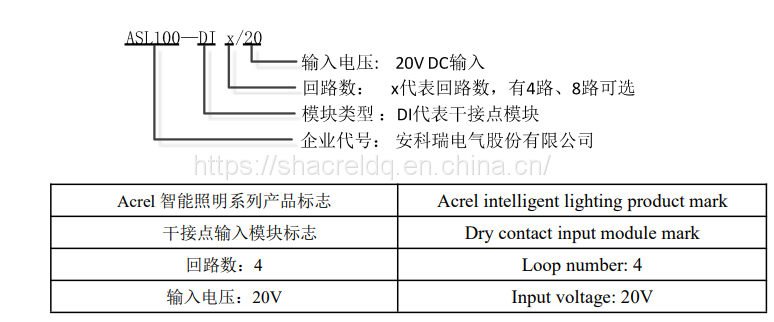

Specification and Model

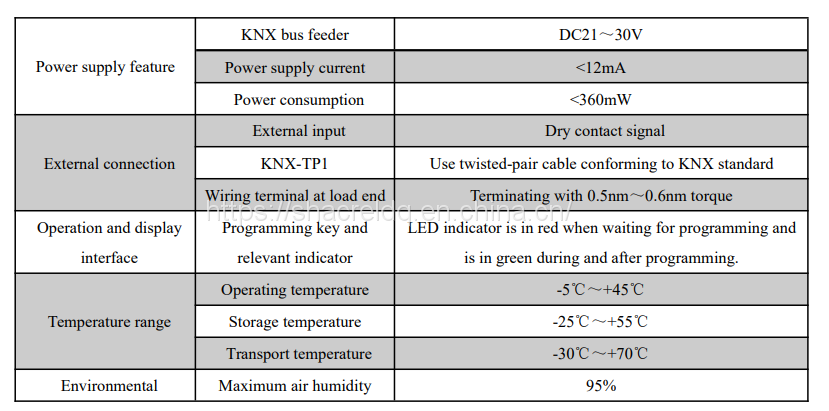

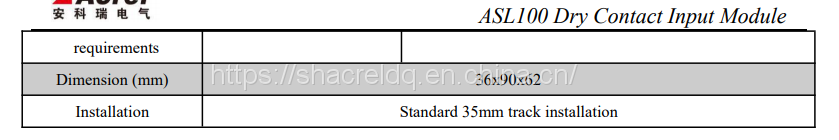

Technical Parameters

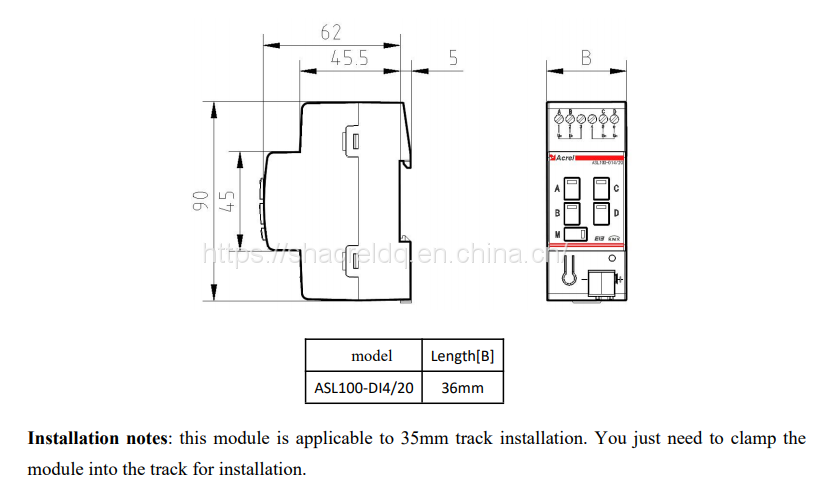

Configuration

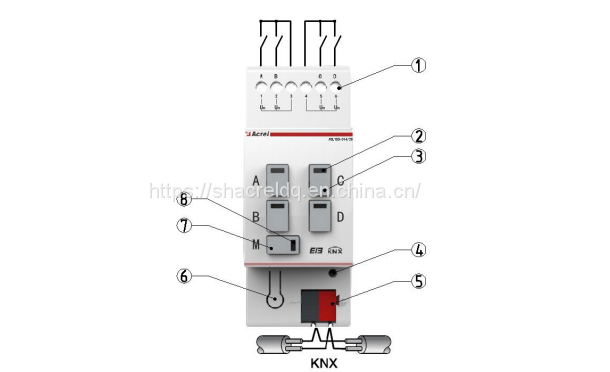

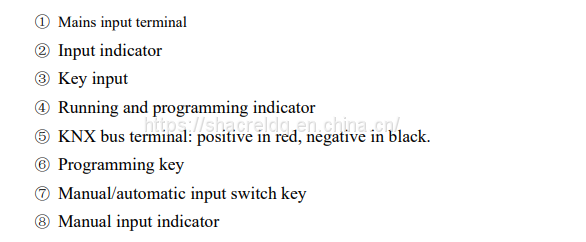

Electric Wiring Diagram
Acrel Co., Ltd. [Stock Code: 300286.SZ] is one of the few leading companies in China who provides various systematic solutions of power monitoring, power control, energy management and electrical safety for smart grid users.
Since June 2003, we has always been focused on the research, production and sales of intelligent electric meters. We concentrates on providing products and services to help customers improve electricity efficiency and safety. So far we had the following comprehensive solutions for different applications: 35(10)/0.4kV substation automation system, building mounted photovoltaic (BMPV) system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, power supply monitoring system for fire protection equipment, fire emergency lighting and evacuate indicating system, fire resistant doorsets monitoring system, smart lighting control system, Lithium battery management system and electric vehicle charging system.
Certificate
Packing
Shipping
