Acrel Series Smart Lighting Control Module Switch Driver ASL100-S8/16

Acrel Series Smart Lighting Control Module

Switch Driver ASL100-S8/16

Overview

  SL100-Sx□/16 series of switch driver (hereinafter referred to as driver) is Acre-bus output control module. The product meets the rules of Q31/0114000129C032-2017 ASL100 Intelligent Lighting Control System. European KNX communication bus is adopted to achieve intelligent lighting control of large buildings and public buildings. The latest single-chip microcomputer technology is adopted by the module. Thus, the module is an intelligent control module with high stability and reliability, such as smart panel and dry node that achieving intelligence of lighting control. The driver controls the on and off of high voltage circuit by the communication bus. 30V DC voltage is used for module power supply at the communication end and is used for system communication. The relay controls the mains on and off by the relay at the output end. The module is applicable to the resistance, inductance and capacity load.

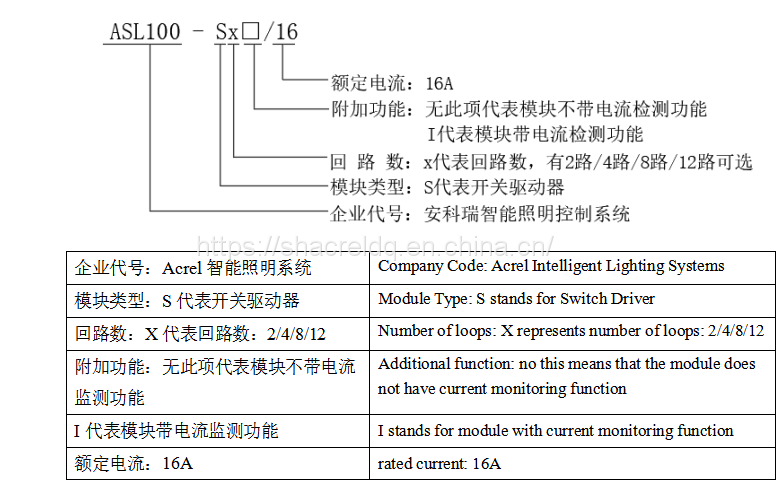

Specification and Model

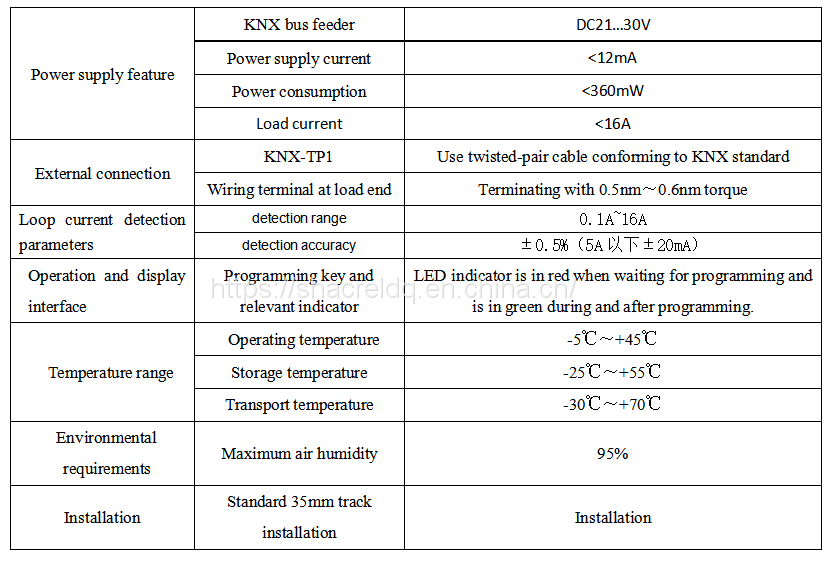

Technical Parameters

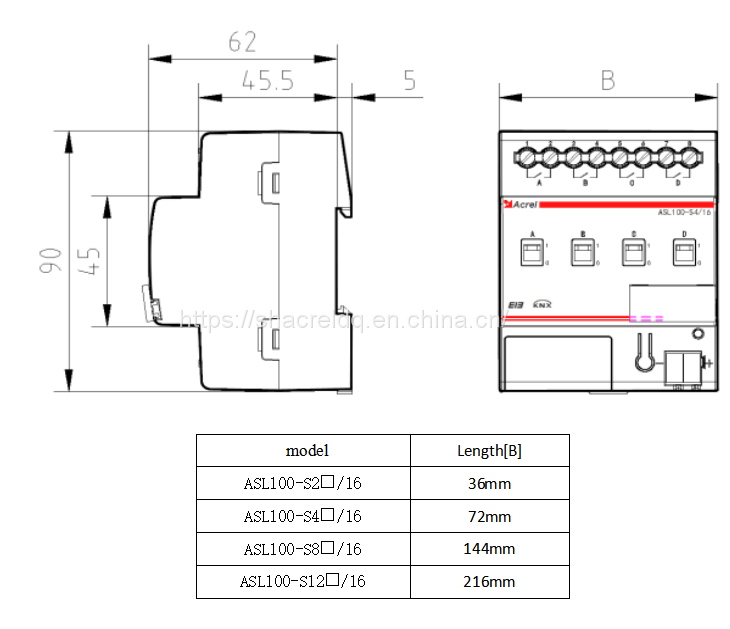

Configuration

Installation notes: this module is applicable to 35mm track installation. You just need to clamp the module into the track for installation.

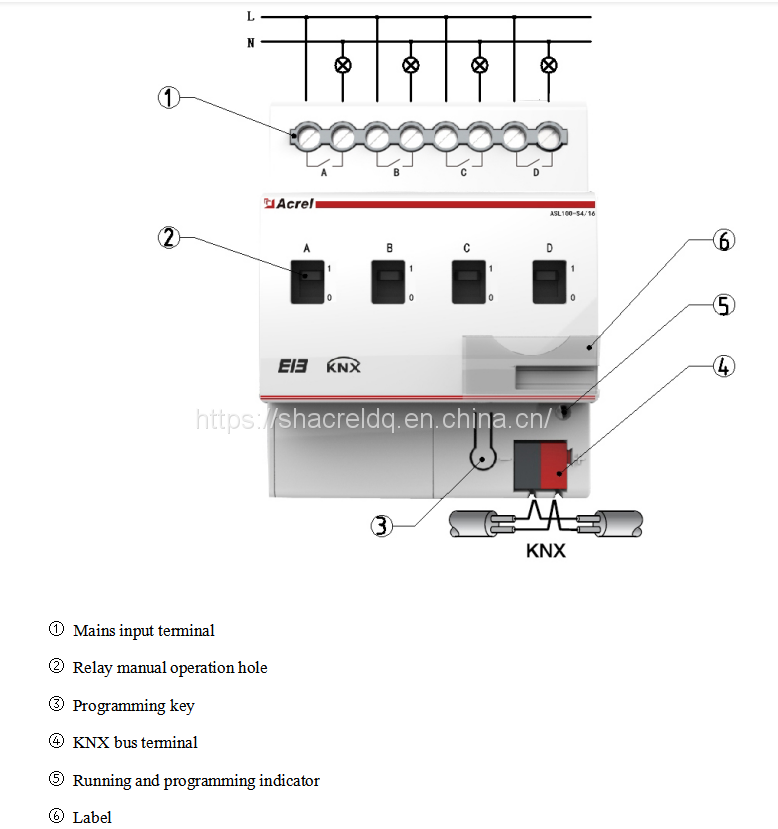

CElectric Wiring Diagram
