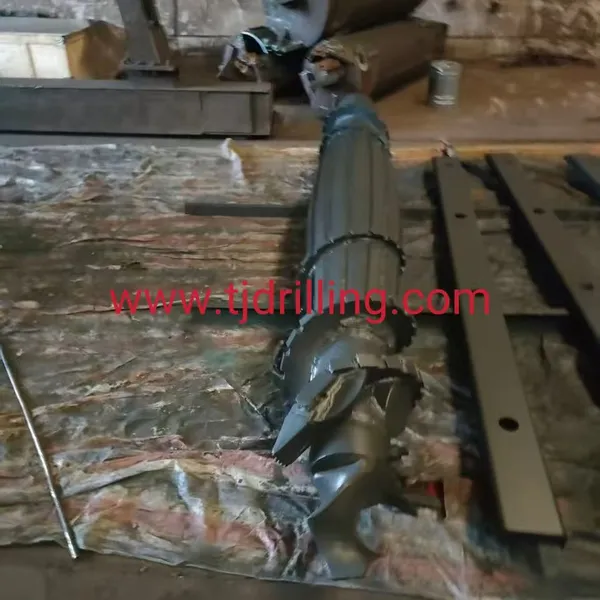

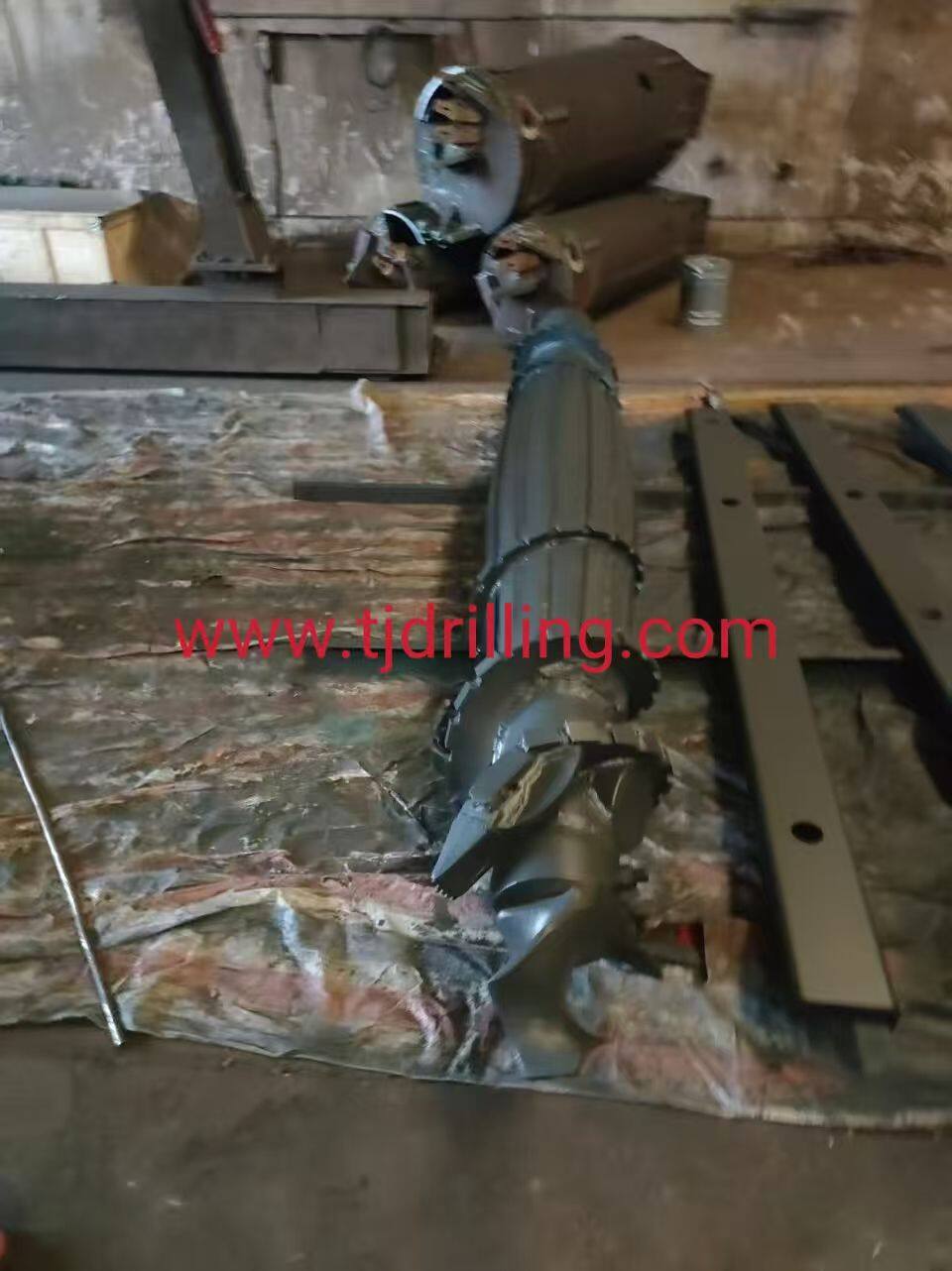

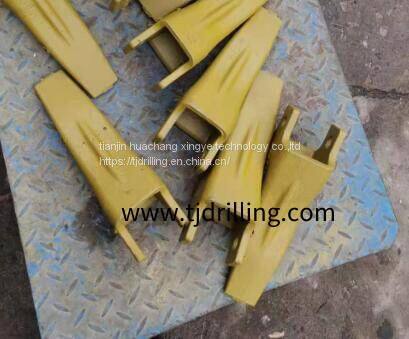

Tianjin huachang xingye technology co ltd produce full displacement piles ,fdp coupling , fdp string , fdp kelly extensions , fdp tools 300-600mm for any brand of rigs
Full Displacement Pile (FDP)—also referred to as a lateral displacement pile—is a cast-in-situ concrete piling system that combines the structural benefits of a driven displacement pile with the low-vibration execution of a bored pile.
Unlike Continuous Flight Auger (CFA) or Kelly drilling methods that excavate and extract soil to the surface, the FDP technique uses a specialized displacement tool to force the soil laterally into the surrounding matrix. This compacts and densifies the ground during advancement, improving the engineering properties of the adjacent soil.
Construction Sequence
The execution of an FDP is a highly controlled, continuous process managed via a high-torque rotary drilling rig equipped with integrated data-logging systems to track torque, penetration rate, and concrete pressure.
Positioning & Penetration: The drilling rig aligns the displacement string over the pile location. The tool is driven downward using a combination of high torque and high downward crowd force.
Lateral Displacement: As the tool advances, a short starter auger at the tip loosens a minimal amount of soil. This loosened material is immediately forced outward into the borehole walls by a wider, solid, conical displacement body located just above the tip. This creates a smooth, highly compacted cavity without removing material.
Concreting: Upon reaching the design depth, concrete (typically highly fluid, self-compacting concrete with optimized aggregate sizes) is pumped under constant positive pressure through the hollow stem of the drill string.
Controlled Extraction: The tool is withdrawn at a regulated rate. The pressure of the injected concrete fills the void left by the tool, maintaining lateral pressure against the freshly densified borehole wall to prevent any decompression or collapse.
Reinforcement Installation: Immediately after the drill string is fully extracted, the reinforcement cage is plunged into the fresh concrete. For deep or full-length cages, a top-mounted high-frequency vibrator is often utilized to assist installation.
Technical Advantages & Limitations
Advantages
Enhanced Bearing Capacity: Compacting the surrounding soil significantly increases both skin friction and base resistance. FDPs often yield a 15% to 30% higher load capacity compared to standard bored piles of identical dimensions.
Zero Spoil Generation: Because no soil is brought to the surface, it eliminates the logistics, transport, and tipping fees associated with drilling waste. This is exceptionally beneficial when operating in contaminated or environmentally sensitive ground.
Borehole Stability: The displacement body acts as a continuous internal support during drilling, making the process highly reliable in unstable, caving, or high-groundwater strata.
Low Noise and Vibration-Free: The rotary displacement mechanism minimizes noise and eliminates high-impact vibrations, making it well-suited for urban infill sites or areas adjacent to sensitive heritage structures.
Limitations
High Equipment Demands: Pushing and twisting a solid displacement body requires a specialized rotary drilling rig with massive torque capacities and significant crowd/extraction forces compared to standard auger setups.
Strata Restrictions: The system is strictly limited to displaceable formations (silts, clays, loose to medium-dense sands/gravels). It is generally unsuited for dense rock, hard overconsolidated clays, or thick strata with high Standard Penetration Test counts (typically restricted to soils with an SPT
Dimensional Boundaries: Due to the physical resistance of displacing soil, diameters typically range from 360 mm to 620 mm (sometimes up to 800 mm), with depths usually restricted to 25–30 meters depending on the rig’s mast configuration.
CFA vs. FDP: Key Operational Differences
Feature |
Continuous Flight Auger (CFA) |
Full Displacement Pile (FDP) |
Soil Mechanics |
Excavation & extraction (soil-breaking) |
Squeezing & densification (soil-compacting) |
Drill Spoil |
High volume of surface waste to manage |
Virtually zero surface spoil |
Borehole Wall |
Potential for decompression in loose layers |
Densified, increasing lateral soil stresses |
Rig Power Required |
Standard torque / high extraction force |
Extreme torque and high crowd force |
