TF-NTP-LITE NTP Server Network Time Server NTP Time Reference System for Beidou GPS GLONASS QZSS
Description:
TF-NTP-LITE is a stratum 1 NTP server with an integrated GNSS receiver. It provides NTP, 1PPS and TOD timing outputs. The NTP server uses GNSS (Global Navigation Satellite Systems) signals from GPS, GLONASS, Beidou, and QZSS as the primary time source for synchronization.
The time server can use its built-in, TCXO (temperature compensated crystal oscillator) as autonomous time base for providing several hours of accurate holdover in case that GNSS signals are not available.
The time server has 4 ethernet ports isolated physically, the ports have no communication with each other to ensure network security.

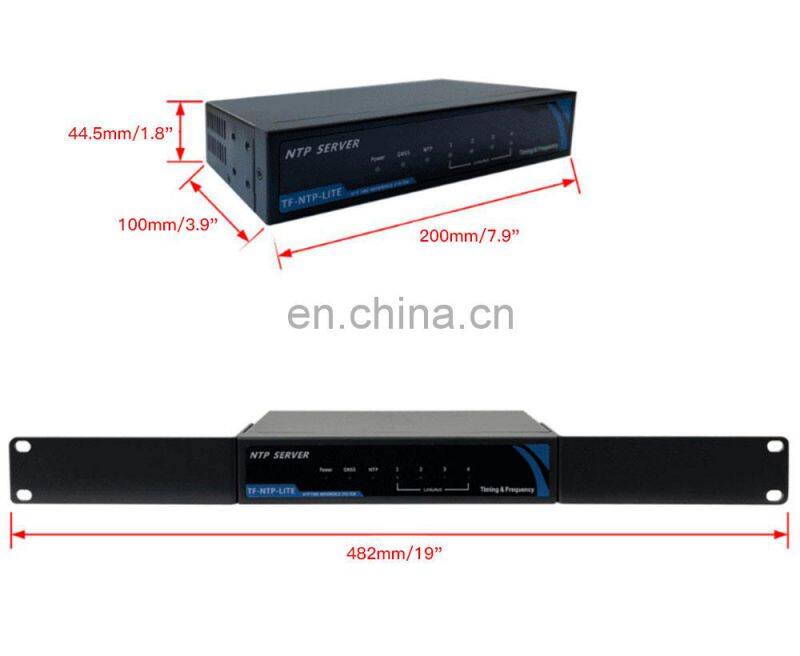

The time server has small size in a rack-mountable enclosure, convenient installation, ultra-low power consumption.
Features:
- 6000 transaction/second for every port
- NTP accuracy 0.5-2ms
- 4 ethernet ports with full physical isolation to ensure network security
- TCXO (temperature compensated crystal oscillator)
- Web UI monitoring and management
- Multi-GNSS receiver (GPS, GLONASS, Beidou and QZSS)
- NTP v2 (RFC 1119), NTP v3 (RFC 1305) and NTP v4 (RFC5905)
- SNTP v3 (RFC 1769) and SNTP v4 (RFC 2030)
- NTP md5 authentication
- NTP Unicast and Broadcast mode

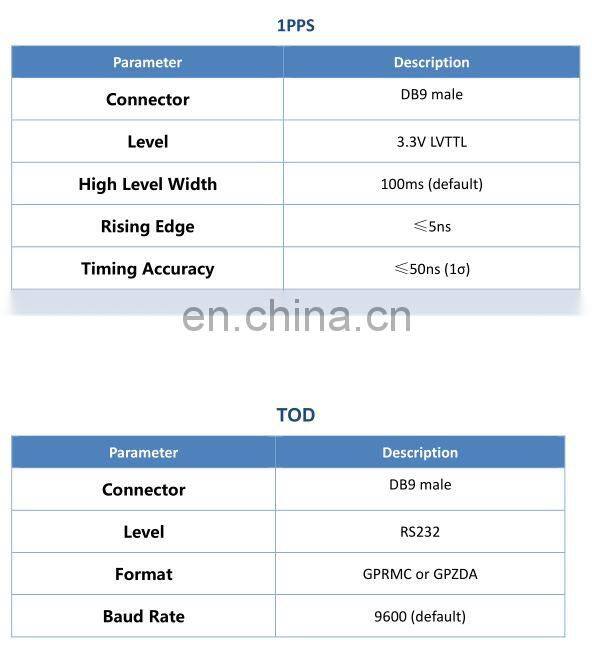

- 1PPS output
- 1 RS-232 serial port with ToD output (NMEA ZDA or RMC)
- GPS is supported via ethernet port 1 (TCP protocol, port 4001)

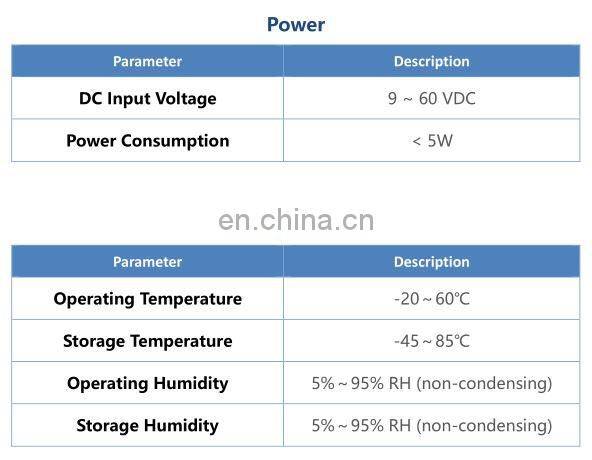

- 9 to 60 VDC
- Power consumption <5W
Package Included:
- 1 x Set of NTP Server
Package: Normally we use the standard exporting packaging. We also can according to clients' request .
