RX-666 ADC Radio 1KHz-1800MHz 16Bit Sampling 32MHz Real Time Bandwidth TCXO 0.1PPM SDR Receiver

1KHz-62MHz 16Bit SDR Shortwave Radio Receiver For Kiwisdr, Raspberry Pi 3B

Specifications:

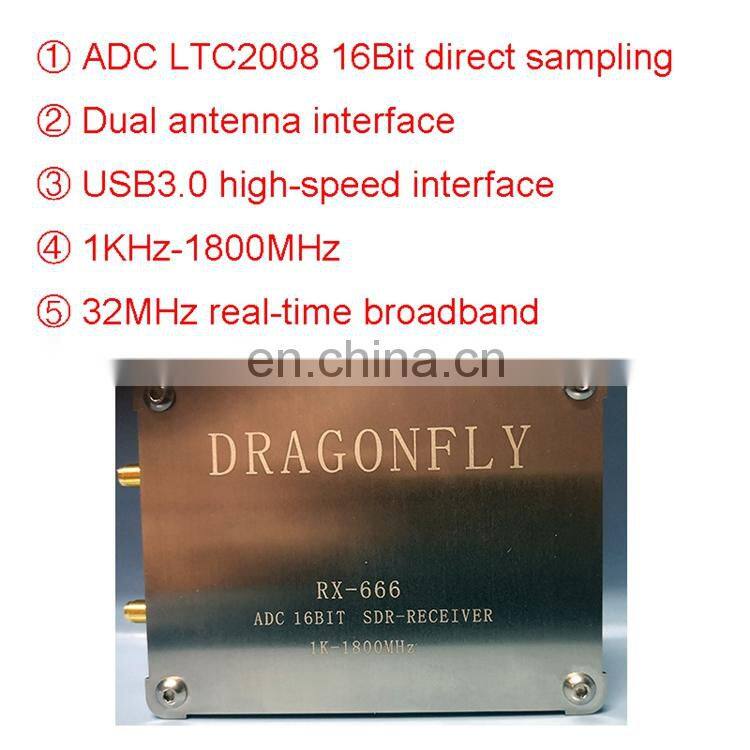

- Model: RX-666
- Size:110*85*25mm
- High performance, high dynamic, high sensitivity, no mirror image. Shortwave 32M at a glance!
- Support for software HDSDR customized version, SDRSHARPER customized version

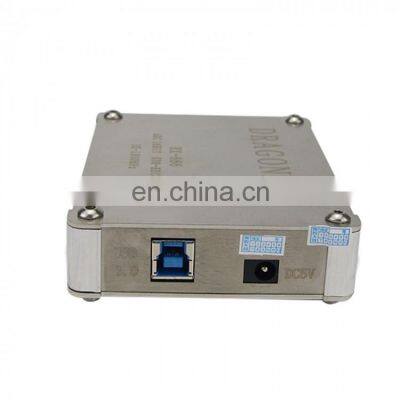

- USB3.0 interface power supply (spare external 5V power supply / no external power supply required)

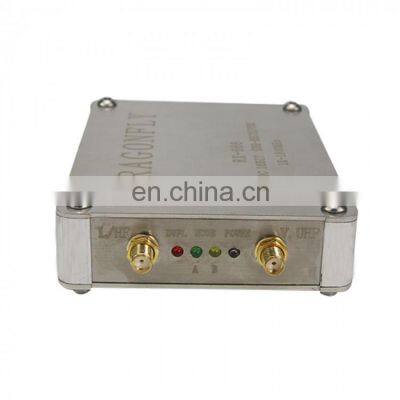

- Dual antenna interface: LW / HF and V / UHF (interface type: SMA outer screw inner hole)
- Frequency range: 1KHz-1800MHz (guarantee index 1KHz-1500MHz)

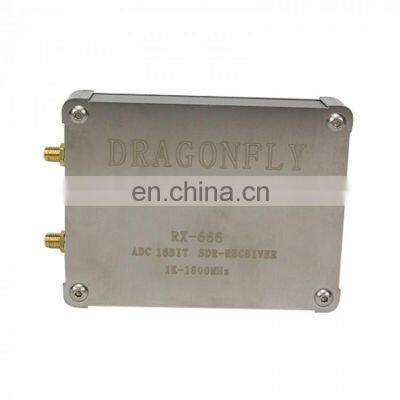

- Stainless steel housing
- Heat dissipation method: shell contact passive heat dissipation

Package Included:
- 1 x SDR Receiver Host
- 1 x USB 3.0 Data Cable
- 1 x Software (provided network disk download)

Operating Environment Requirements:
Support for windows 7, win 8, win 8.1, win 10.

The computer performance is based on the desktop computer: i5 3570 4G memory can run smoothly, 32M bandwidth USB3.0 data, there are certain requirements for computer performance. Multiple machines can be connected to a computer at the same time to run in different frequency bands.

Advantages:
- 1KHz-1800MHz. No mirroring.
- ADC adds anti-jitter, anti-interference functions, SMA dual antenna interface, USB3.0 direct power supply. Excellent performance indicators, stainless steel laser cut shell, stainless steel hexagon socket screw fastening, heavy and heavy, strong texture.
- 16bit ultra-high sampling, 32M bandwidth.
- ADC chip uses LTC2208, 16BIT 32M direct sampling, high sampling bandwidth of 32M! The rate of LTC2208 is much higher than LTC2217, the noise is also 2db lower than that of LTC2217, the throughput is very large.
- It is necessary to use a high-performance computer equipped with USB3.0 interface to run it smoothly.

Applications:
- Telecommunications
- Receiver
- Cellular base station
- Spectrum analysis
- Imaging system
- ATE (Automatic Test Equipment)

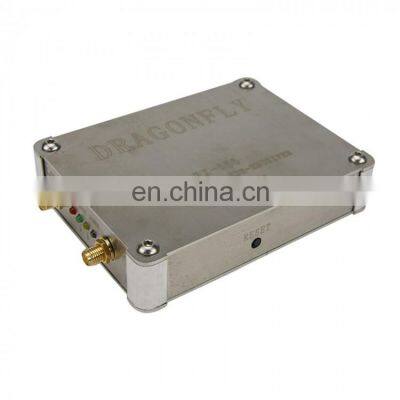

Detail photo
