250W 20A 100V Adjustable Constant Current Discharge Board Resistor Electronic Load Module

250W 20A 100V Adjustable Constant Current Discharge Board Resistor Electronic Load Module

Description:
This electronic load uses IR power tube and double high-speed ball bearing fan, with big fin heat sink, which is not afraid of dust and can guarantee the stability for a long time use, power redundancy is no less than 50% (25℃).

Specifications:
Power supply voltage: DC 12V (±5%)
Maximum load voltage: 100V
Constant current discharge adjusting range: 0-20A
Work mode: single mode constant current mode (CC)
Maximum discharge current error: 0.7%-0.01A
Maximum discharge power: 250W

Features:
-Adopts IR power tube and double high-speed ball bearing fan, with big fin heat sink.
-Digital tube display, intuitive and long lasting, more resistant to high temperature.
-During discharging constant current, it can display voltage and current, visually reflecting the discharge conditions.
-Voltage and current wiring connectors are separated, with appropriate connection, it can eliminate the influence of wire resistance to voltage.
-Suitable for assembly of power adapter fully-automatic burn-in cabinet.

Instructions:
1. Turn on the 12V working power supply and turn on the electronic load mode. Make sure that it is in the stopped state (the knob is the smallest counterclockwise) and connect the tested power supply to the test input power port. Be careful not to connect the wrong polarity.
2. Set the constant current through the knob.

Package list:
1 x Electronic Load Module

Note: Because it is open work, there is no internal voltage limit and power limit, but the normal work should be below 100V, and work below 250W.

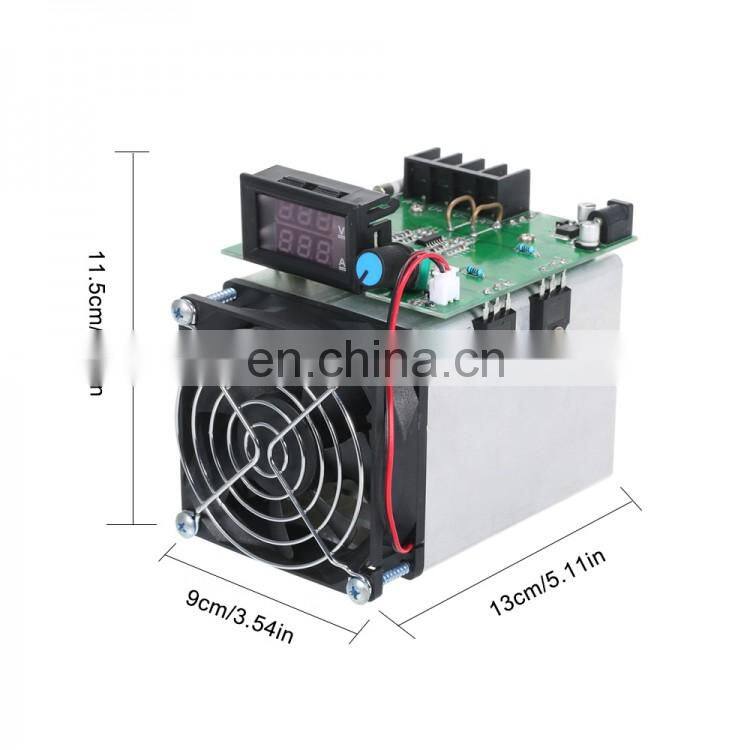

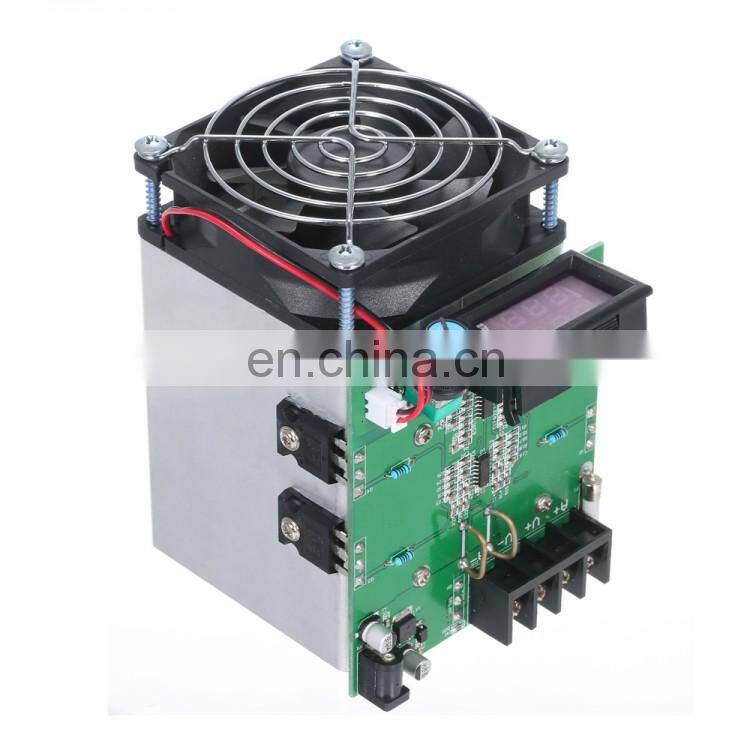

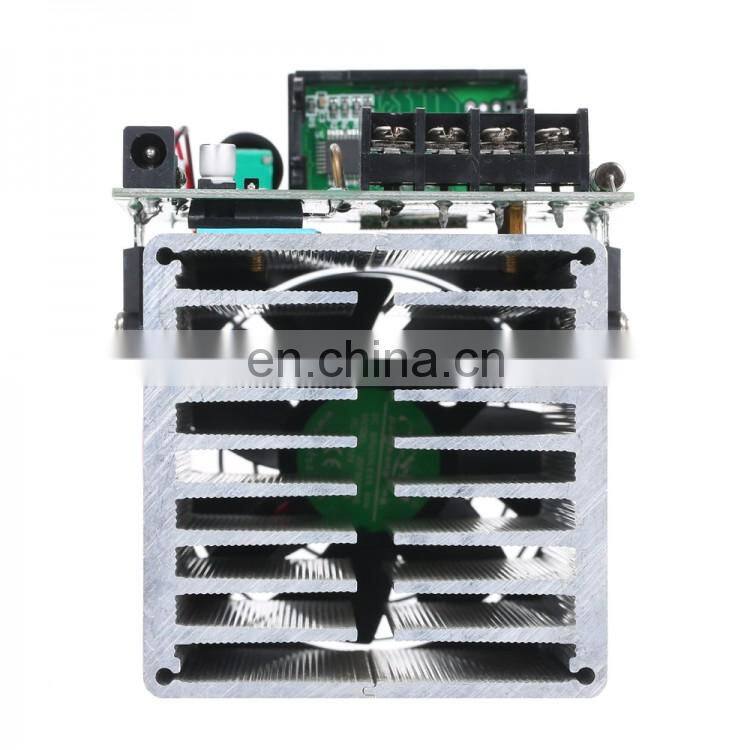

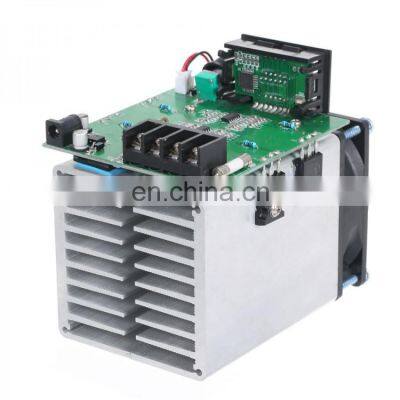

Detail photo
