LNA 0.1M-2G Gain 60DB Two-Stage Amplification Professinal Audio RF Wideband Amplifier Module
Description:
- The RF Amplifier has the advantages of wide frequency range, high gain, low noise figure, etc.
- Using two cascaded, it is suitable for weak signal detection LNA low noise.
- With the characteristic of excellent performance, uniformity and reliability.
- Higher gain flatness when working within 500M, and low power consumption
- The gain can be adjusted with the power supply voltage
Specification:
- Low noise factor NF=2.0, can be used as RF preamplifier
- Working frequency: 0.1M-2G
- Power gain: 60dB 500M
- Noise figure NF: 2dB 300M
- Maximum output power: +10 dBm (10mW) 1dB compression point
- Working current: 70mA (12V)
- Supply voltage: 12V recommended, (9-15V)
- System Impedance: 50 ohms
- Size: 7.5 x 3cm / 2.95 x 1.18in
- colour:black
- Material:metal+pc
Package Contents:
1 * RF Wideband Amplifier
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

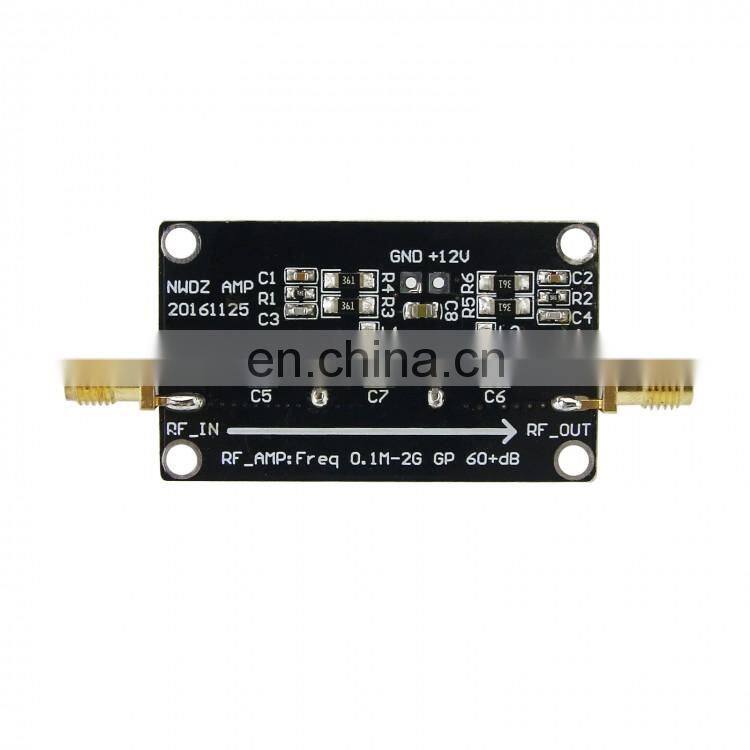

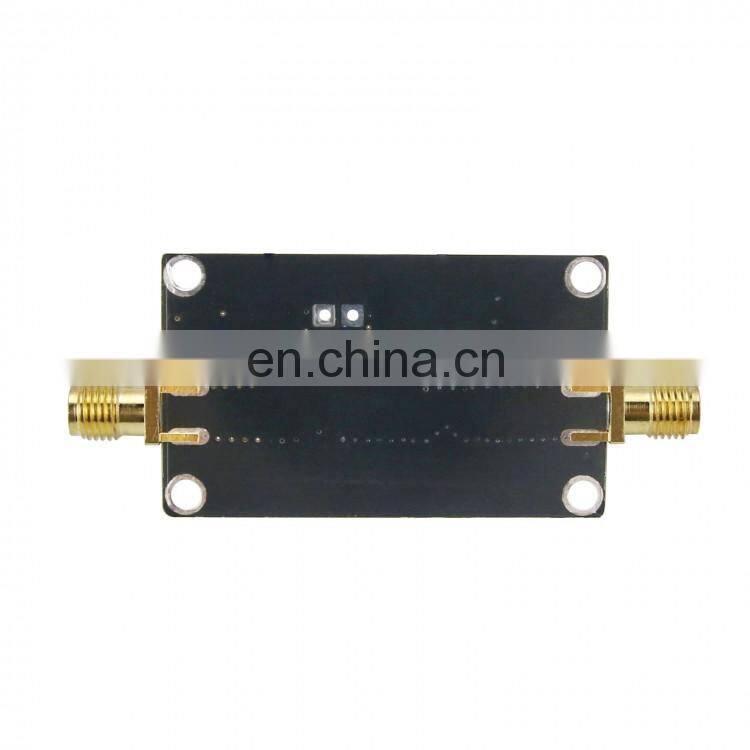

Detail photo
