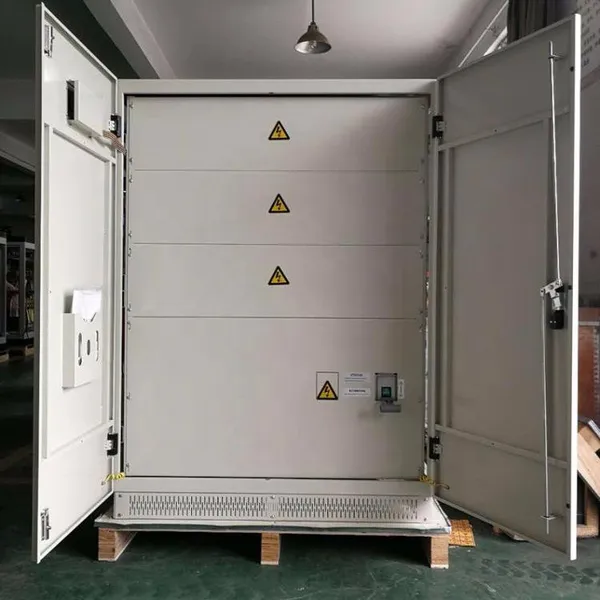

500kva 3 phase static voltage regulator
400v voltage stabilizer 3 phase IGBT type for Hospital machine
Application:
Our ASR series can be used widely in communication equipment,broadcast TV, production line, numerical control machine,textile equipment,medical equipment,hotel,computer house and other
places that need stabilized voltage.
It's features:
1,No extra waveform distortions(static),SCR more intelligent
2,Three phase can be balanced automatically
3,Quik response time(within 40ms)
4,Output delay(Stabilize voltage before output,prevent equipment from impacting)
5,Voltage accuracy:±1%
6,maintenance-free
7.2 years warranty
500kva static contactless stabilizer Specifications:
1 |
Type |
ASR |
|
2 |
Capacity |
500KVA |
|
3 |
AC Input voltage |
Switch |
3P1000A |
Phase |
Three Phase |
||
Voltage |
380V(Accoding your require) |
||
Frequency |
50/60HZ |
||
4 |
AC Output voltage |
Phase |
Three Phase |
Voltage |
380V(According your require) |
||
Frequency |
50/60HZ |
||
5 |
Rated output current |
906A |
|
6 |
Voltage Accuracy |
±(1-2)% factory set ±1% |
|
7 |
Power factor |
0.8 |
|
8 |
Filter Distortion |
No additional waveform distortion ( static state) |
|
9 |
3 phase balanced |
The voltage of 3ph can be balance automatically |
|
10 |
Response time |
≤ 40 ms |
|
11 |
Cooling method |
Natural cooling/ Fan system |
|
12 |
Resist electric strengh |
2500VAC/min |
|
15 |
Size: |
Length1200 *Width 800* High1600(mm) |
|
16 |
Weight : |
Net weight:850KG Gross weight: 930KG |
|
17 |
Environment |
Ambient Temperature |
-10~35℃ |
Related humidity |
15~85%(25℃) |
||
Altitude |
|||
18 |
Warranty |
2 years |
|
