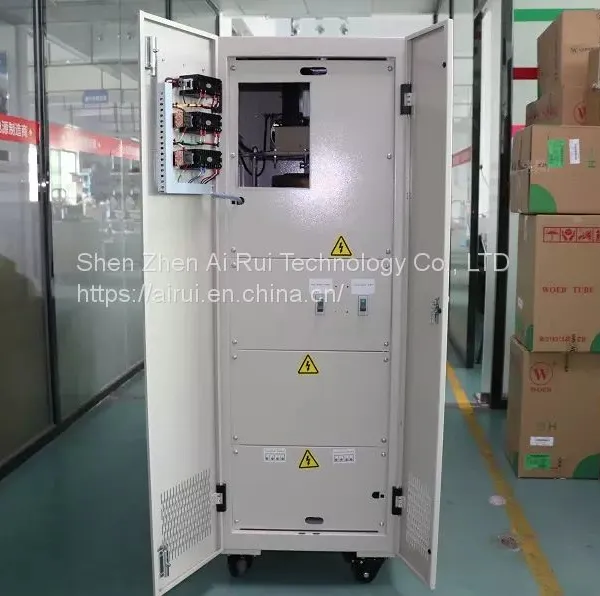

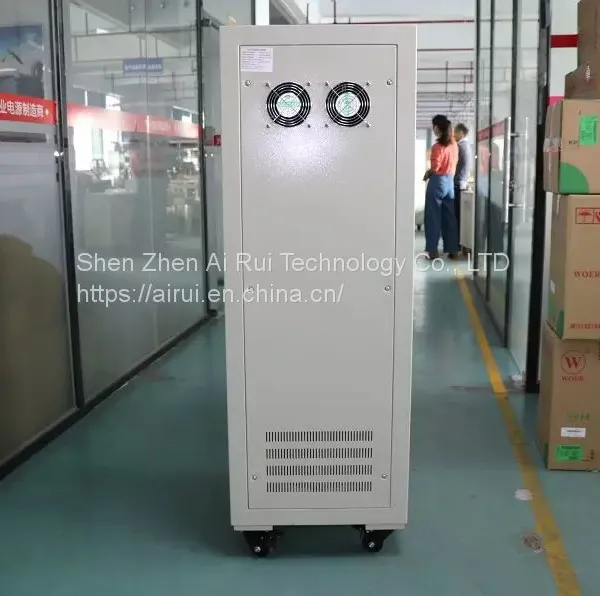

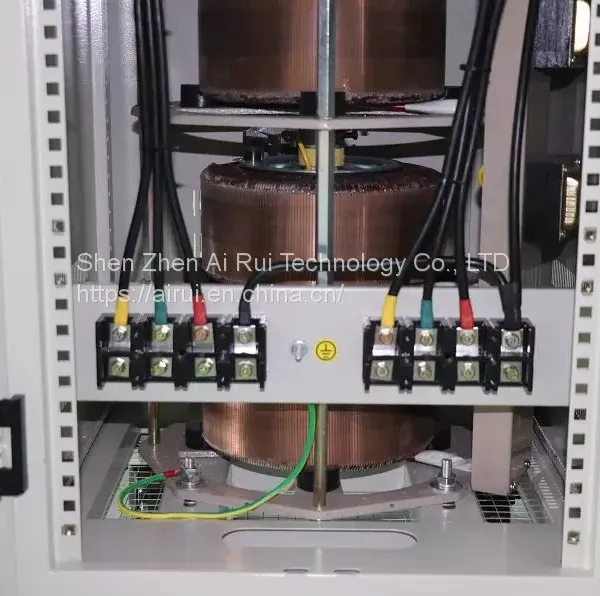

Help Center50kva 3 Phase Variac Transformer Automatic Voltage Regulator Input 415v Output 0-456v Adjustable 2 Years Warranty
Related Products
-
Single Phase Manual Variac 3kva ac Adjustable Voltage Regulator 220VUS$ 1 - 399MOQ: 1 Piece -
480v to 220v 3 Phase Dry Type Step Down Isolation Transformer 600kvaUS$ 5799 - 6099MOQ: 1 Piece
-
3 Phase 10kva Voltage and Frequency Converter Variac Stabilizer Output 0-480v AdjustableUS$ 1 - 2999MOQ: 1 Piece
-
500kva 3 Phase Static Voltage Regulator 400v Voltage Stabilizer IGBT Type for Hospital MachineUS$ 1 - 2999MOQ: 1 Piece
-
Microwave Multiple Output Isolation Toroidal Transformer 230V 1000WUS$ 1 - 86MOQ: 1 Piece
Why choose us:
This is our mature product, we got CE,ROHS certificates.
Our STED,DTED series are our Update new type, more smart and good-look
We offer 2 years warranty, Longer after-sales service guarantee.
Strong R&D department, if any special requires, email us, we will make drawing for you ASAP.
50kva adjustable transformer Specifications:
1 |
Type |
STED |
|
2 |
Capacity |
50KVA |
|
AC Input voltage |
Phase |
Three Phase |
|
Voltage |
415V (according your requires) |
||
Frequency |
50HZ |
||
4 |
AC Output voltage |
Phase |
Three Phase |
Voltage |
0-456v adjustable (according your requires) |
||
Frequency |
50HZ |
||
5 |
Rated output current |
63A |
|
6 |
Material |
Copper |
|
7 |
Load working |
Long time continuous working keep 80% load |
|
8 |
Efficiency |
>95% |
|
9 |
Insulation strength |
2500V/Min |
|
10 |
Insulation Class |
H class |
|
11 |
Cooling method |
Natural cooling/Fan system cooling |
|
12 |
Resist electric strengh |
2500VAC/min |
|
13 |
Noise |
≤60db(Noclude forced air cooling system) |
|
14 |
Temperature Rise |
≤75℃ |
|
15 |
Size: |
Length500 *Width 450* High1450(mm) |
|
16 |
Panel indication |
Input / output voltage, output current, boost button, step down button. |
|
17 |
Environment |
Ambient Temperature |
-10~35℃ |
Related humidity |
15~85%(25℃) |
||
Altitude |
|||
18 |
Warranty |
2 years |
|
Packaging Details
Packing:three-ply board wooden box package
Size: Length680 *Width 360* High550(mm)
Weight:Net weight:100KG Gross weight: 115KG
(OEM/ODM service are available, welcome customied order.
Shenzhen Manufacturer
Port
Shenzhen,Shanghai
Lead Time:
Quantity(Sets) 1 - 2 >2 Est. Time(days) 7 To be negotiated
