Product Description
FPA101A Signal Power Amplifier Module 100W 100KHz for Digital DDS Function Signal Generator
Description:

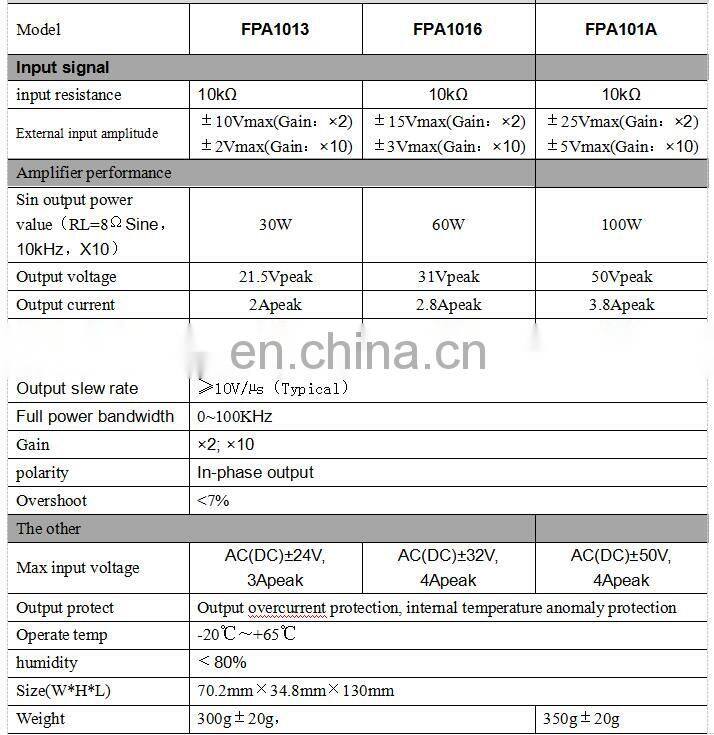

- FPA1000 series power amplifier has a full power bandwidth of 100KHz, a maximum output current of 4A, and an output slew rate of Slew Rate greater than 10V/μs. It can be used with our signal source or as a separate power amplifier with other manufacturers' signal sources. use. FPA1000 series power amplifiers are currently available in FPA1013, FPA1016, and FPA101A models. FPA1013 maximum output amplitude 50Vpp (plus or minus 25V), maximum output current 2A, maximum output power up to 30W; FPA1016 maximum output amplitude 60Vpp (plus or minus 30V), maximum output current 2.8A, maximum output power up to 60W; FPA101A maximum output The amplitude is 100Vpp (plus or minus 50V), the maximum output current is 4A, and the maximum output power is up to 100W.

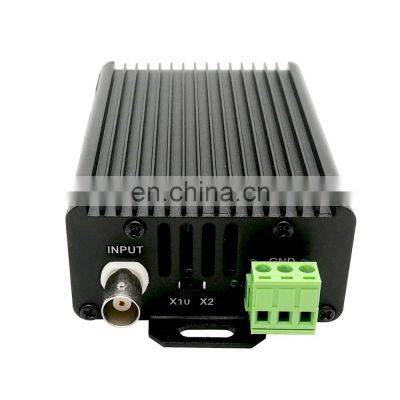

- FPA1000 series power amplifier gain multiple can be selected on the power amplifier body, flexible and simple to operate, the amplifier gain can be set to (X2 or X10); with high input impedance of 10kΩ; complete output protection circuit (internal temperature anomaly protection), To ensure stable, reliable and safe operation of the instrument; the product adopts exquisite aluminum alloy casing, self-heating ability, compact size, easy to carry and very convenient to use.

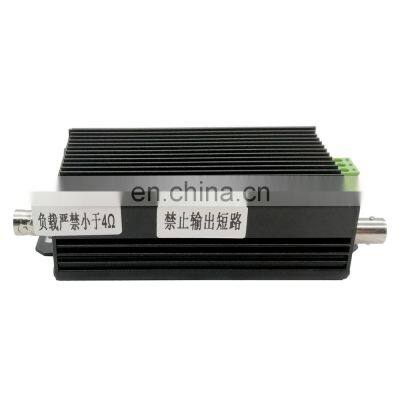

Note: The power amplifier load impedance needs to be greater than 4 ohms!
This listing is for FPA101A 100W Power amplifier
Package Included:
1x signal AMP
1x power cable
1x BNC cable
Package: Normally we use the standard exporting packaging. We also can according to clients' request .
