Description:
MINIWARE MHP30 Mini Hot Plate Preheater is an ultra-mini smart constant temperature hot plate (heating station). It eliminates redundancy, retains sufficient effective heating area, greatly saves energy and heating time. MHP30 condenses the large desktop heating station into pocket size. Used with a popular PD power supply, MHP30 turns out to be a portable tool kit.

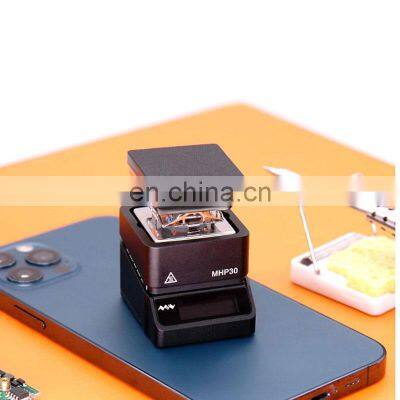

MHP30 has a small and exquisite appearance, with a square tower shape and a total height of only 5.2cm (2 inches). MHP30 controller and hot plate can be flexibly separated and replaced. The controller is equipped with an OLED display and two physical buttons (on the back). A pair of support feet at the bottom can be spread out to better support the whole station. The hot plate's heating body is made of brass with nano-ceramic coating, smooth on surface and evenly heated. A futuristic stainless steel hollow bracket connects the heating part with the circuit board that can be directly inserted into the controller.

Inheriting the high-efficiency performance of MINIWARE heating tools, MHP30 has excellent thermal performance. When using a 65W PD power supply, it only takes 150 seconds to heat from 26℃ room temperature to 300℃. The controller has a built-in true color LED that changes color with the rises and falls of the temperature, letting you know the warm and cold at a glance. In addition to the upgradeable firmware function, MHP30 also has smart modes such as preset temperature, tilt protection, power wake-up and automatic sleep. Users can set to turn on or off these functions according to their needs.

Features:
- Ultra-mini size, exquisite and compact
- Separable controller and hot plate, flexible to replace
- High quality aluminum alloy shell and stainless steel heat dissipation slices
- Built-in OLED display and true color LED, light color changes with heating temperature
- Two supporting legs at the bottom can be spread out to provide stable support
- Nano-ceramic coating on brass hot plate, smooth, durable, and evenly heated
- Hot plate features a futuristic stainless steel heat dissipation bracket,artistic and practical
- Support PD power supply input, power up to 60W
- Takes only 150s to heat from room temperature to 300℃ (65W PD power supply)
- Energy saving and environmentally friendly
- Multi smart modes: preset temperature, tilt heating, power wake-up, automatic sleep, firmware upgrade
- Applications: Portable for out fields; preheating, desoldering circuit boards, components, LED beads, etc.

Specifications:
- Model: MHP30
- Hot plate model: BS30
- Heating area: 30 x 30mm/1.2 x 1.2"
- Temperature range: 100-350℃
- Temperature stability: 3%
- Resistance to ground: <2Ω
- Power: 60W (maximum)
- Input: PD protocol (Max 20V)
- Certification: CE/FCC
- Other functions: multiple smart modes: preset temperature, tilt protection, power wake-up, automatic sleep, firmware upgrade
- Product size: controller: 43 x 35 x 31mm/1.7 x 1.4 x 1.2" (LxWxH); hot plate: 31 x 31 x 28mm/1.2 x 1.2 x 1.1" (LxWxH)
- N.W. (control terminal + heating element): 82g/0.2 lb

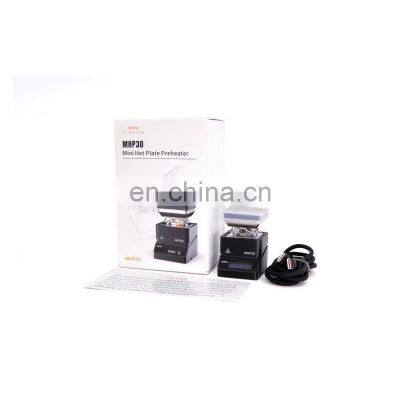

Package Included:
- 1 x MHP30 Controller
- 1 x Hot Plate (BS30)
- 1 x Type-C-C Data Cable
- 1 x Safety Notice

Note:
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
