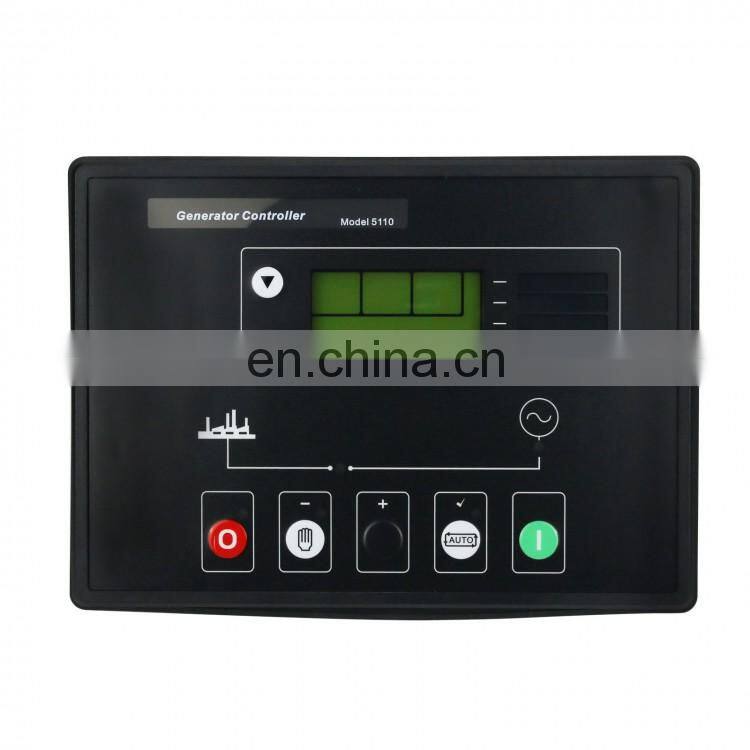

DSE5110 Diesel Generator Controller Panel

DSE5110 Diesel Generator Controller Panel

Generator Set Controller:
The microprocessor with LCD display, controls multifunctional engines. As an automatic start module, it has fault shutdown protection functions and LEDs to display status. Graphic LCD displays the parameters of generators in real time: three-phase voltage, three-phase current, unit frequency, cooling water temperature, oil pressure, engine speed, cumulative running time, failure reasons, etc. And various protection conditions can be set: generator overspeed/underspeed, low oil pressure, high water temperature, start failure, emergency stop, speed signal loss, charging failure. You can also set the start time, number of times, remote start, automatic recording of parking faults and query, and system password lock function. It can be connected to a PC computer through 810 communication interface and quickly set the parameters!

Controller Display Parameters:
- Generator phase voltage L1-N, L2-N, L3-N
- Generator line voltage L1-L2, L2-L3, L3-L1
- Generator current L1, L2, L3
- Generator frequency Hz
- Generator speed RPM
- Engine oil pressure (PSI & Bar)
- Engine water temperature (℃ & ℉)
- Unit operating time

DSE5110 Controller Alarm/Shutdown Protection:
- Underspeed/overspeed, alarm/stop
- If it fails to charge, it will alarm
- Emergency shutdown
- Low oil pressure, alarm/shutdown
- High water temperature, alarm/shutdown
- Start failure, alarm
- The speed signal is lost and the machine stops

Basic Parameters:
- Model: DSE5110
- Power supply: DC 8~35V continuous
- Start-up voltage drop: Power supply provided before start-up is not less than 10V, and the voltage is restored to 5V, which can ensure that the control system maintains normal after 20ms of 0V voltage
- Start relay and fuel relay output: 16Amp DC system DC voltage
- Auxiliary relay output: 5Amp DC system DC voltage
- Operating temperature range: -30℃ to +70℃

Package Included:
- 1 x Set of Generator Controller

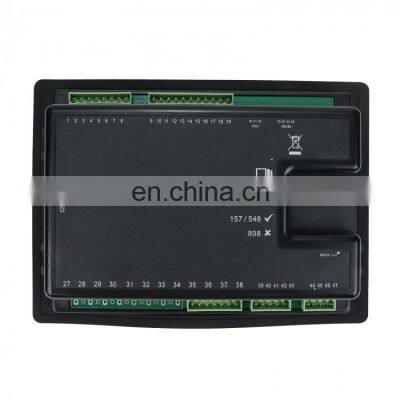

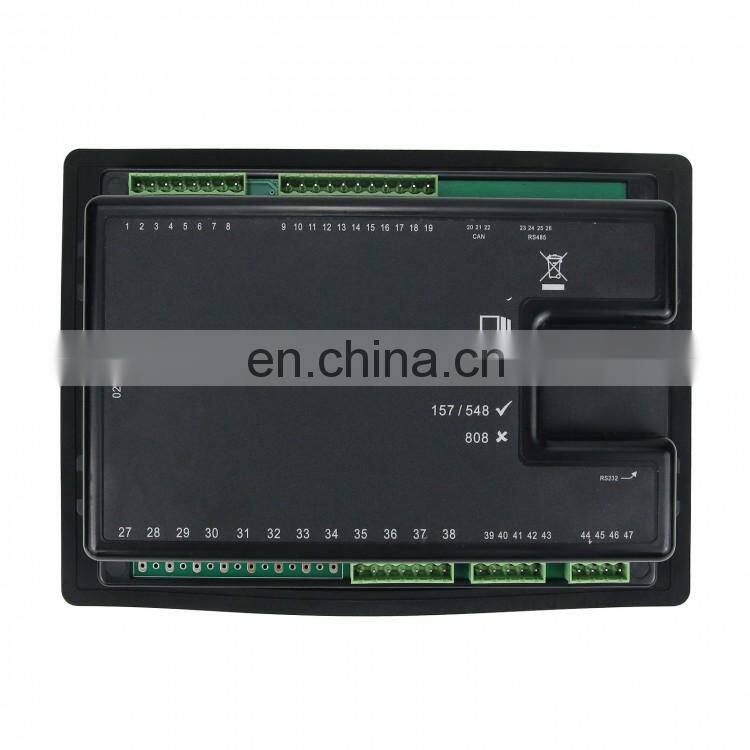

Detail photo
