Product Description
TC5540V 4Axis TC5530V 3Axis TC5520V 2Axis TC5510V 1Axis 3.5"CNC Motion Controller For CNC Router Servo Stepper Motor
Description:
It is an upgrading version of TC55. It is equipped with a 3.5-inch color screen, RS485 communication, Chinese/English Switch, and USB connection. Boot picture can be set as pictures or company name as you will. It is highly reliable, highly accurate, low noise, and easy to use.
Technical Specifications:
- Minimum data unit 0.001 mm
- Maximum data size ± 99999.999mm
- Maximum Speed: 9000mm/min (pulse is 0.001mm)
- Maximum pulse output frequency 150KHz
- Axis: 1, 2, 3 or 4 (X, Y, Z, C). X, Y, Z, C axis can conduct linear interpolation, X, Y can do circular interpolation.
- Electric Gear: numerator: 1-99999 denominator: 1-99999
- System main functions are automatic, manual, program editing, system parameters, self-check, settings, etc.
- Maximum 480 commands each program
- USB Connection and upgrade
- Stop and Start of Spindle motor
- PLC Extension
- I/O Extension
- Isolated I/O port
- Self-defining of I/O port
- Chinese/English panel display
- Freeboot picture setting
Conversational Programming Code:
The conversational programming method automatically leads you to finish programming.
Programming Function Introduction:
Programming Code: Interpretation
Incremental: Incremental Programming
Absolute: Absolute Programming
Pause: Pause unless a certain condition is met, then skip to command called
Output: Define on and off of output port, ex. Stop and start of the spindle motor
Repeat: Go back to command called and repeat
Clockwise: Clockwise circular interpolation (Incremental programming)
Counter-clockwise: Counter Clockwise interpolation (Incremental programming)
Delay: Define the time of delay
Judge: Judge if a certain condition is met and skip to command called
Skip: Whenever this command is executed, unconditionally skip commanding called.
Fast: Fast positioning
Machine Zero: Go back to machine zero
Speed: Axis moves at a certain speed and will stop when certain condition met
Register: When this command is executed, the number on the main interface and the manual interface will be sent to this number.
Count: When this command is executed, the number on the main interface and manual interface will increase by 1 or decrease by 1.
Subprog Call: Subprogram Called
Subprog Start: Subprogram Started
Subprog End: Subprogram Ended
Coordinate: Set the current position as new coordinates
End: When the commands cannot be read, it will be considered as "End".
Coordinating: This command is similar to Judge when the certain condition of coordinates is met, it will skip commanding called.
PLC Judge: When a certain condition of PLC register value is met, it will skip commanding called.
PLC Set: Set Register address and value
Package Included:
- 1 x Set of CNC Controller

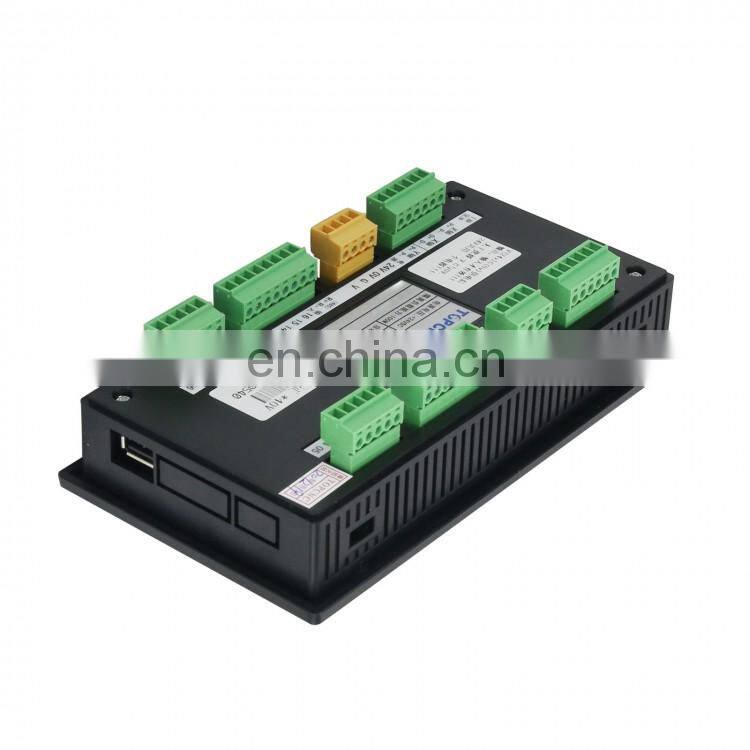

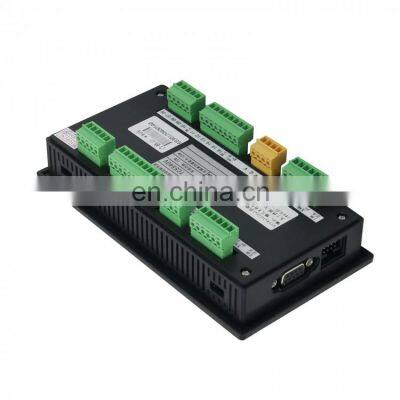

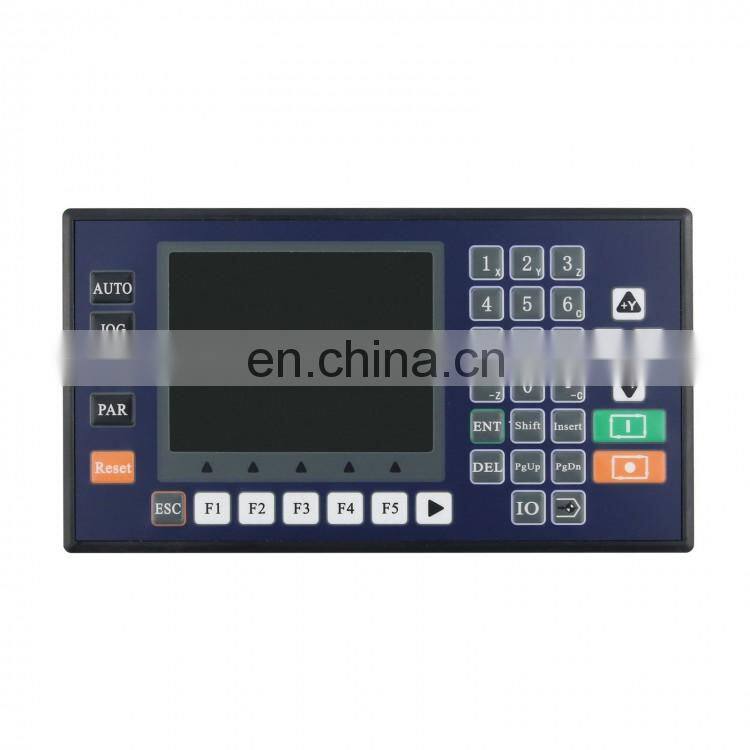

Detail Photo
