3 Axis READOUT Digital Display DRO for Mill Lathe Machine and 3 Linear Scale

Description:

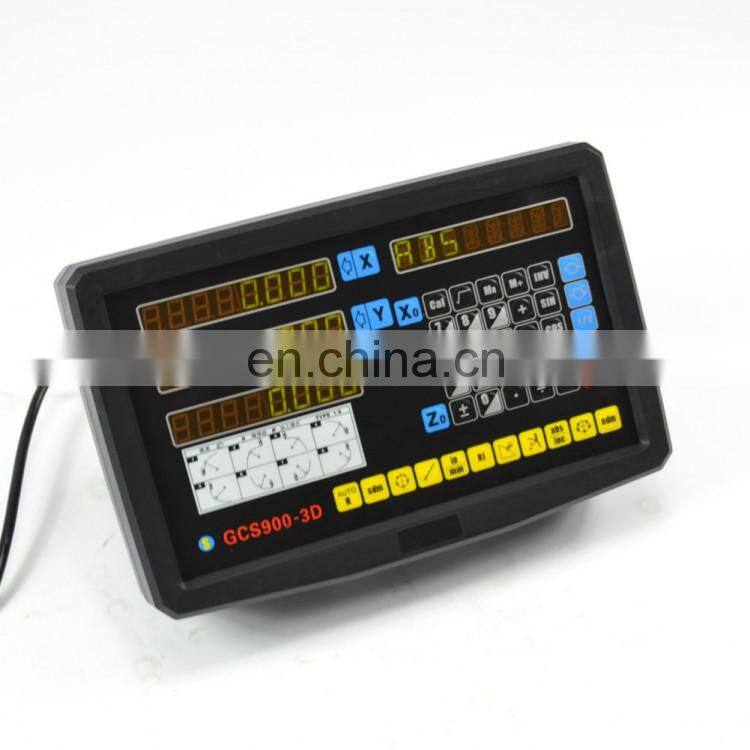

- Item name: Whole set 3 axis linear scale with 3 axis digital readout DRO
- Order include: 1 piece 3 axis DRO+ 3 pcs 5um linear scales+ mounting brackets
- Reslution: 5um
- Travel length: 50mm-1000mm ( if the travel length is over 1000 mm,it will cost extra fees.)
- Total length:Travel length+Mount distance(138 MM)
- Application: milling machine,lathe machine,cutting machine,drill machine,grinder machine,etc.
- This is for 0.005mm(5um) resolution.We also supply 0.001mm(1um) scale.

Basic functions:
1:zero clearing
2:reset
3:mm/inch mode
4:ABS/INC coordinate conversion
5: 200sets sub datum
6:power off Memory;
7:center of 1/2
8:liner error compensation
9:sleeping mode
10:Clear 200 sets Sdm datum;
11:ABS/INC mode
12:calculator
13:drilling of circumference
14:drilling of oblique line
15:machining of inclined plane
16:machining of circular arc
17:lathe function(match)
18:Rectangular lumen gradual processing
19:digital filtering
20.R function 21 R/D function

Specification:
1.Voltage Range: AC 85V~260V/50HZ~60HZ
2.Power Consumption: 25VA
3.Coordinates: 1/2/3/4
4.Display: 8 digits display
5.Input Signal: TTL square wave EIA-442
6.Input Signal frequency: 100KHZ
7.Length resolution: 5um
8.Operation Keyboard: pressure sensitive key pad

Feature:

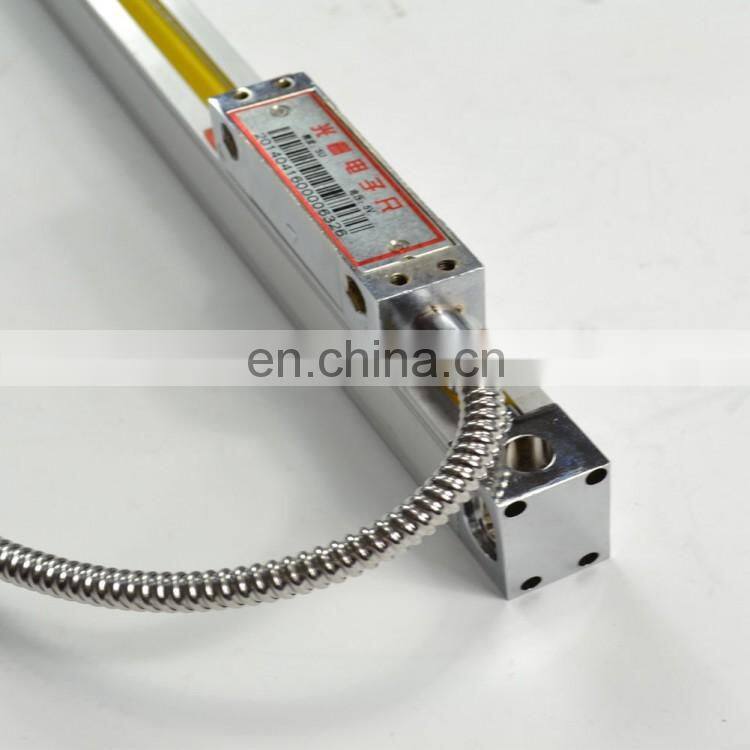

1.High Precision linear scale
2.Resolution: 5um (0.005mm) 0.0002"
3.Signal: TTL square /wave EIA-442
4.Grating pitch: 0.02mm (50LP/min)
5.Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
6.Reference marks at interval of 50mm
7.Response Speed: 60m/min or 40ins/sec
8.Cable length: 3.5 or 3 Meter

Scale Length:100,150,200,250,300,350,400,450,500,550,600,650,700,750,800,850,900,950,1000 MM (5um).  If the scale is more than 1000 MM,it costs extra money.

In fact,the scale can be made from 100-3000MM.Scale length above refers to the real travel of the linear scale.Actual physical length is 138 mm longer than travel.(1 inch equals to 25.4 milimeter).

Package List:
- 1 x 3 axis DRO
- 1 x English instruction

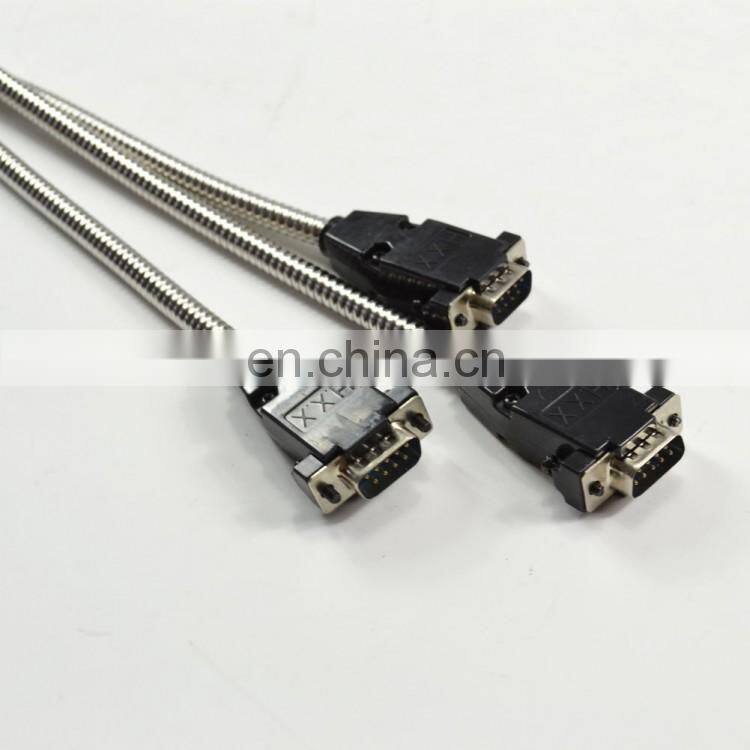

- 3 x (5um) linear scales with 3 meters cable

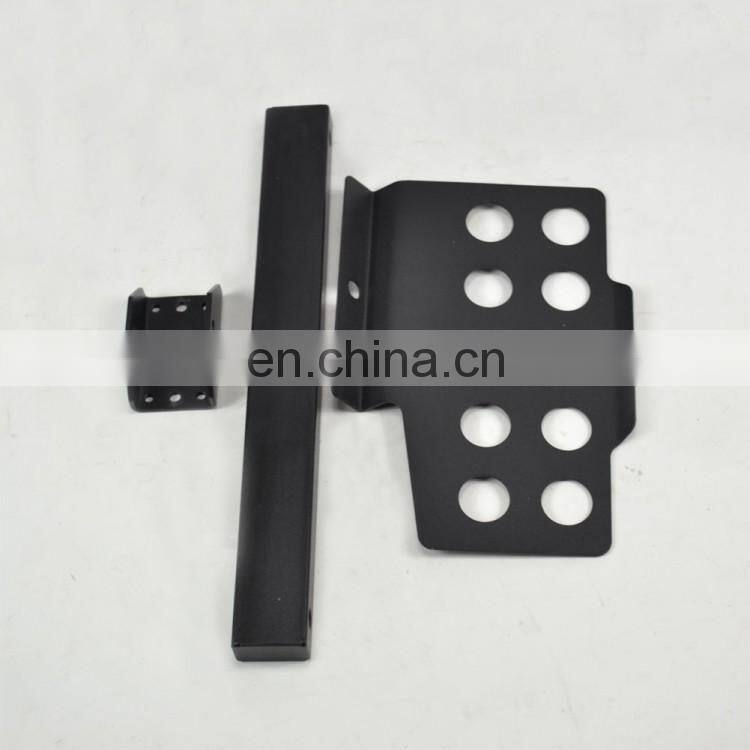

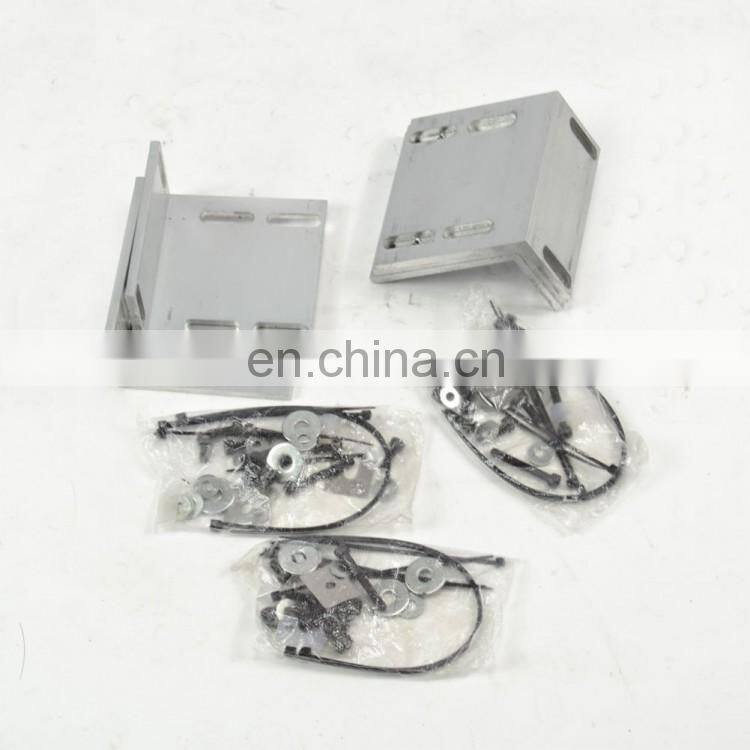

some mounting brackets and all accessories for installation
