CNC ROUTER MILLING Air Cooled ER11 12-48V 400W Spindle Motor & PWM Speed Controller & Mount

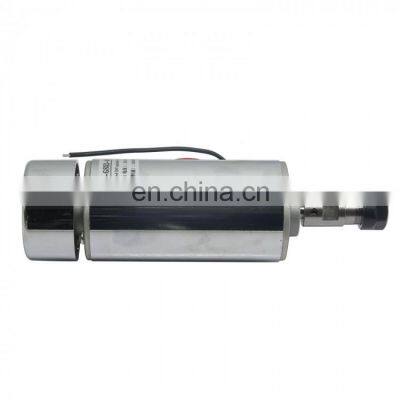

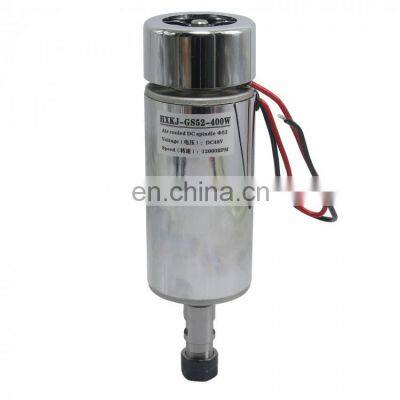

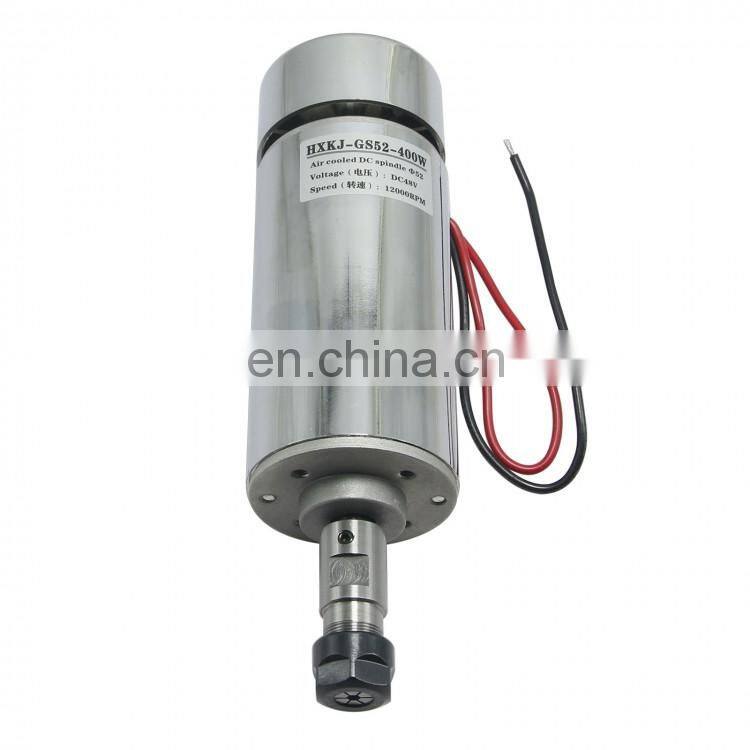

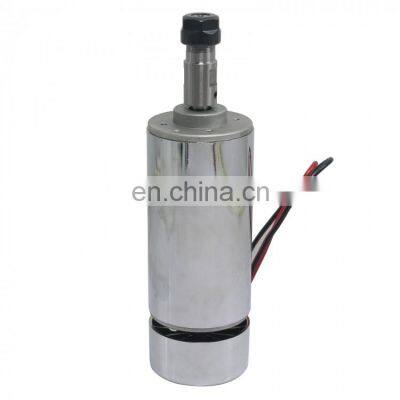

Spindle Motor:
- Work voltage: 12-48VDC
- Rotation speed: 3000-12000r/min
- spindle motor power: 400W
- Torque:500mN.m
- Insulation resistance:>2Megohm
- Dielectric strength:400V

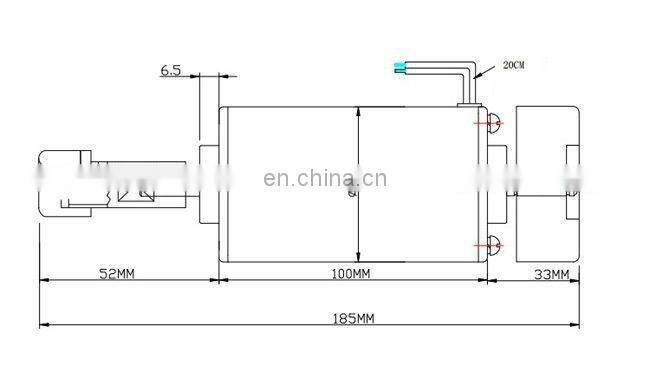

- Motor Length : 186mm
- Diameter:52mm
- Axis collet Length: 48mm
- Diameter of Axis collect holder:16mm
- Repeat accuracy: 0.01-0.03mm
- ER11 spindle motor collect: 3.175mm

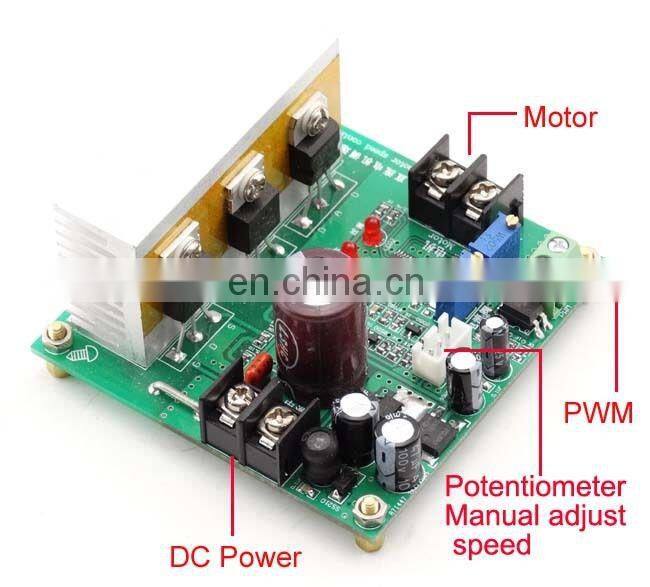

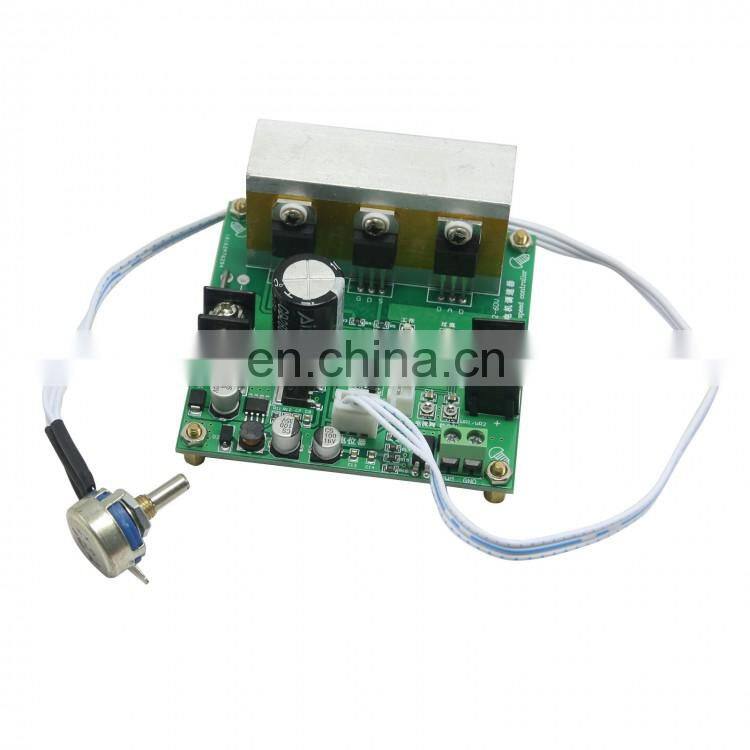

Wide voltage PWM DC brush motor speed controller:
- Applies to DC12-60V low voltage permanent magnet brushed DC motor
- Operating Voltage: Wide Voltage (DC) DC12V-DC60V (Max 65V)
- Control mode
A: Default potentiometer control (5K-100K),defaults 10K;
B: MACH3 -PWM speed control signal input, external PWM input requirements: level 3.5-12V VPP, frequency 1K-10KHZ, suitable for MACH3 spindle speed control.
- Rated current: 10A, overload and short circuit protection current 12A. (Over-current cut output, overcurrent indicator flashes, the potential light is off, overcurrent lift).
- Soft-start function. Prevent excessive current caused by the motor and power damage (default 0 seconds soft start), 0-5 seconds adjustable.6.Control power: 12V120W, 24V240W, 36V360W, 48V480W, 60V600W7.Dimensions: Length 75mm * Width 75mm * high 42mm 8.Pulse width modulation range: 0% -100%
Note: When using a PWM signal control mode, need to unplug Potentiometer, or it will be unable to use PWM mode).
Package Content:
- 1 * 0.4KW spindle motor with with ER11 3.175 collet
- 1 * Mach3 PWM speed controller

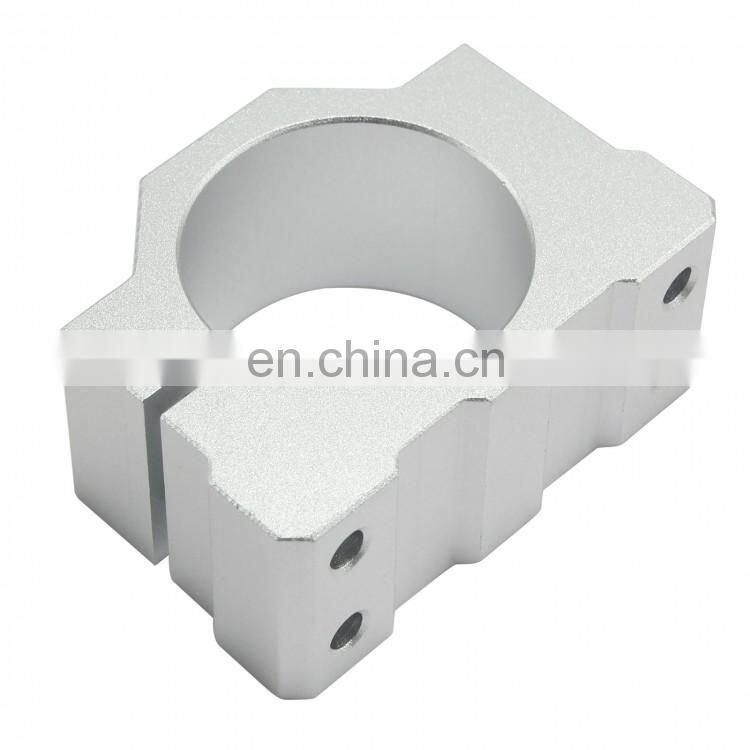

- 1 * Mount bracket with screws
Detail photo
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Samples arrived often need 3-5 days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.
Q8: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
