Specifications:
- Motor Type: 4 axis controller for stepper and servo motors
- Motor type: Stepper Motor

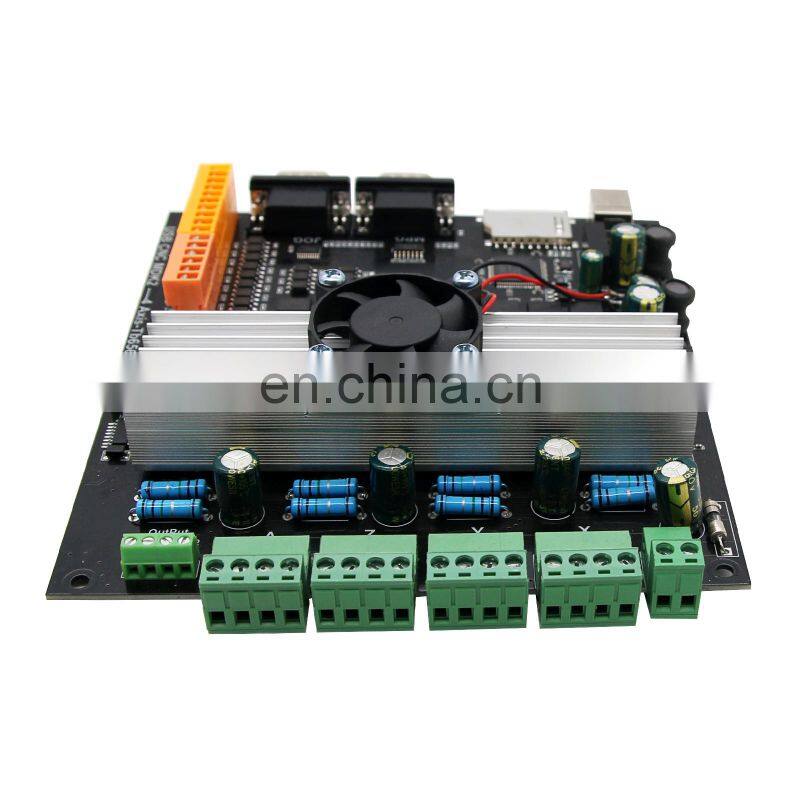

- Model Number:USB CNC MDK2 -4 Axis–Tb6560

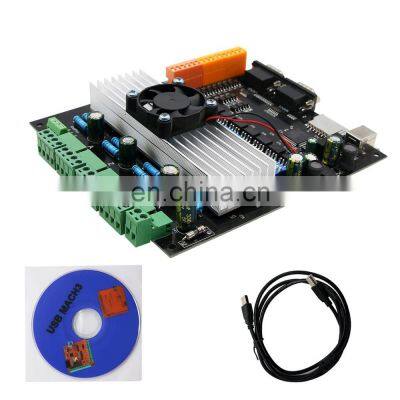

Package Included:
- 1 x USB CNC MDK2 -4 Axis –Tb6560 card
- 1 x USB cable
- 1 x CD

Features:
- 4 axis controller for stepper and servo motors
- USB connection
- 100 kHz maximum step frequency
- 12 μs minimum pulse width, 50% duty cycle at higher frequencies
- 7 digital outputs on board
- jogging keyboard support
- 8 limit switches with shift feature
- 5 inputs
- MPG pendant support
- Spindle encoder and index signal support for spindle synchronization
- SD card support for running g-code without computer
- control external devices with I2C and UART protocol
- Homing procedure
- Tool change procedure
- Tool length sensor support
- Sensor for capturing and measuring
- digitizing probe support
- Transformation matrix
- Soft limits
- Slave axes
- Backlash compensation
- API

Note:
- The controller should be powered with an external power supply.
- USB CNC MDK2 -4 Axis –Tb6560 requires 24V DC supply.
- Power supply should be at least 200mA.
- Please note that SD card in the pictures is not included. Thank you!

Basic connection diagram:

Package: Normally we use the standard exporting packaging. We also can according to clients' request .

 Shipping :

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier  we are co-operating at present.

2. By Air: Delivery from the Shanghai airport to customers’ destination city air port.

3. By Sea: Delivery from the Shanghai sea port .

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A: Samples arrived often need 3-5 days.

Q3. Do you have any MOQ (minimum order quality)limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed an order?

A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.

Q6. Is it acceptable to print my logo on the product?

A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer one-year warranty for our products.

Q8: How to deal with the flaw?

A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
