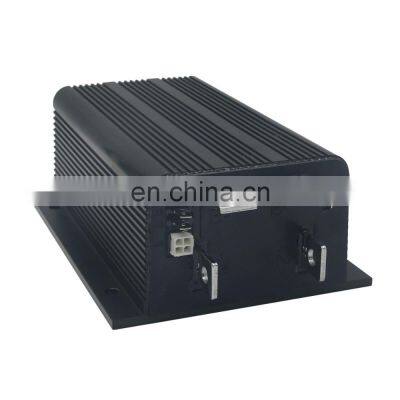

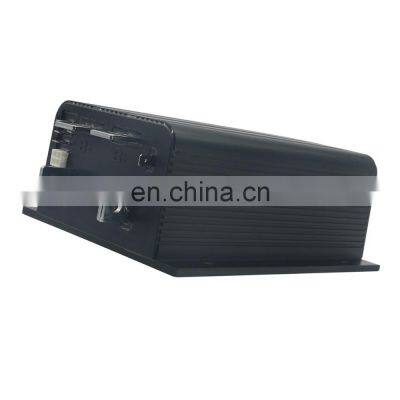

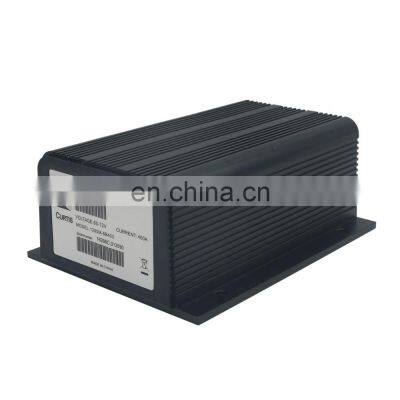

Replacing Curtis 60V 72V 1205M-6B403 PMC 400A DC Motor Controller
Product Description:
- CURTIS 1205M-6B403 DC Series Motor Controller
- Upgraded Version of 1205M-6B401 (Part Number: 17721701) & Fully Compatible
60/72V - 400A
EY Features:

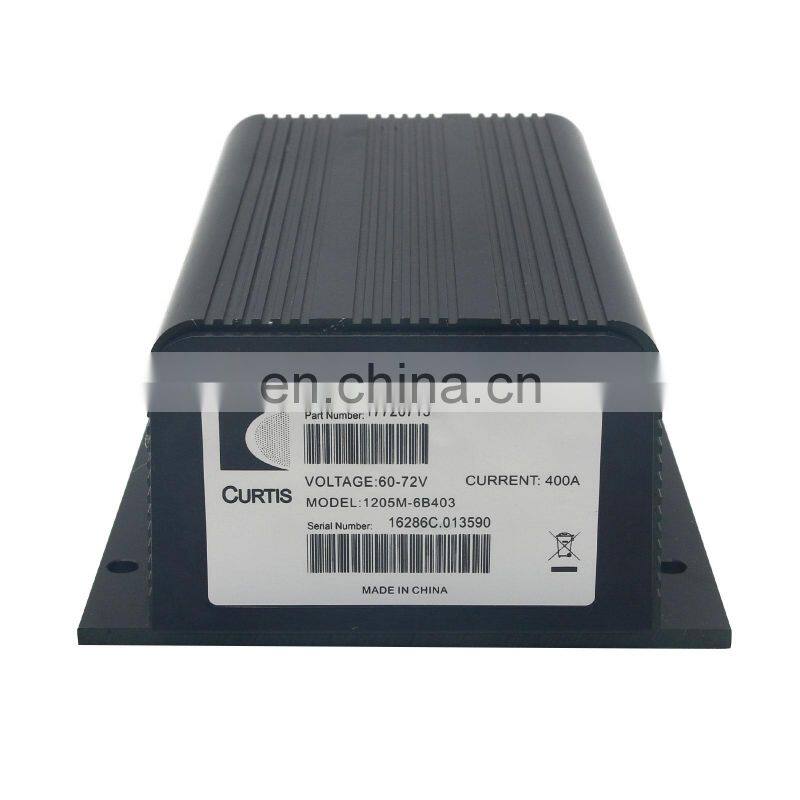

- Curtis Model: 1205M-6B403
- Norminal Battery Voltage (Volts): 60V / 72V (Two voltage settings are available. The voltage can be set to either 60 volts or 72 volts. By defaut, it is set as 72 volts, with an allowable working range 48-72V. If it is set as 60 volts, the allowable working range is 39-60V).
The buyer should confirm with the seller the battery system voltage and the throttle type (0-5kΩ, 5k-0Ω or 0-5V). There is no extra cost for reprogramming the controller or other CURTIS programmable devices.
By defaut, we will the controller of setting of 72V / 400A / 0-5kΩ (Throttle Type = 0).

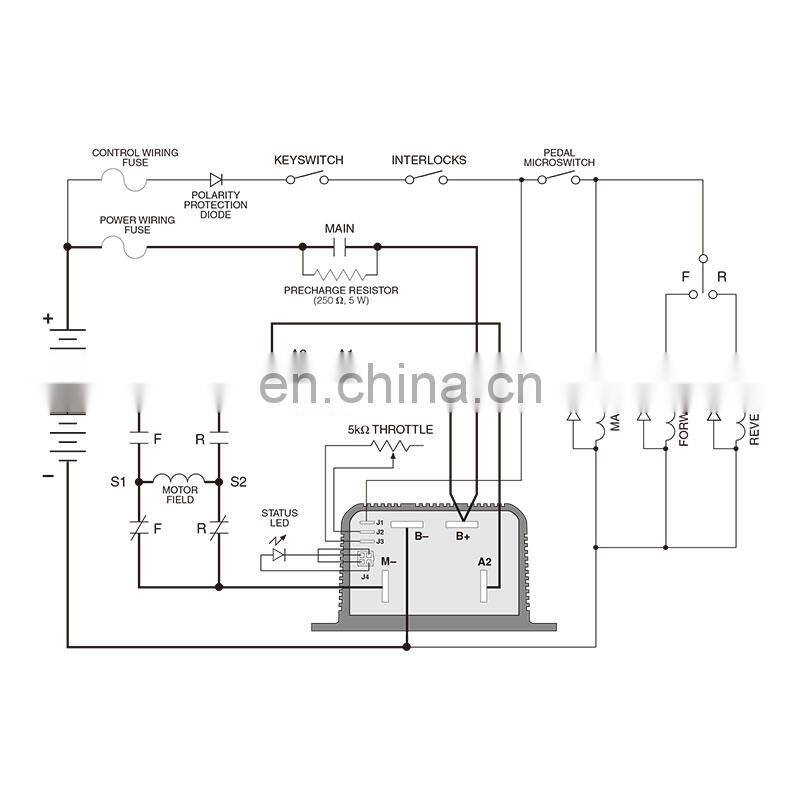

Wiring Diagram:By default, the J5 terminal of 1205M-6B403 controller is not activated. The controller wiring is same to the old 1204M controllers without J5 terminal.
The diagram (PDF format) Download : /product/curtis/manual/1204M_1205M_5K_Potentiometer_Wiring_Diagram.pdf
If you want to activate the J5 terminal for using the Rev Input / Main Driver functions, :/product/curtis/manual/1204m1205m_n.pdf
Main Features:
- 1 Minute Current Rating (amps): 400
- 5 Minute Current Rating (amps): 275
- 1 Hour Current Rating (amps): 175
- Plug Braking (A2 Busbar): Yes
The controller model 1205M-6B402 (without the plug breaking A2 Bushbar) is also available.
For the buyer without CONTROLLER APPLYING EXPERIENCE, please consult your cart/motor dealer and read carefully the CURTIS 1204M/05M/09M/21M Manual before making your purchase.
Other DC motor controller models are available:
- Model 1204M-4201 (24/36V 275A)
- Model 1204M-5203 (36/48V 275A)
- Model: 1204M-5305 (325A, 36/48V)
- Model 1205M-5603 (36/48V 500A)
- Model 1205M-6B402 (60/72V 400A, without the plug breaking A2 Bushbar)
Overview:
- Curtis 1205M programmable series motor controllers are designed to provide smooth, silent, cost-effective control of motor speed and torque. 1205M controllers are updated versions of the popular 1205 controllers, with the added functionality of being programmable—via the Curtis Model 1313-4431 Handhold Programmer or 1314-4402 PC Programming Station. This means the controllers can be tailored to the needs of specific applications. In addition to configuration flexibility, use of the programmer offers diagnostic and test capability.
- Curtis 1205M controllers are the ideal solution for a variety of electric vehicle applications, including industrial trucks, personnel carriers, material handing vehicles, golf cars, etc.
Features include:
- High-frequency switching and ultra-low voltage drops provide high efficiency and silent operation.
- Simple mounting and wiring with push-on connectors for control signals and plated solid copper buses for power connections.
- Compatible with either a two-wire potentiometer or a voltage throttle.
- Throttle fault protection circuitry disables controller if throttle wires become open.
- High pedal disable feature prevents controller operation if key is turned on while throttle is applied.
- Plug braking diode internal to controller.
- Thermal protection and compensation circuit provides constant current limit over operating range and during under/over temperature cutback; no sudden loss of power under any thermal conditions.
- Undervoltage cutback function protects against low battery voltage, including low voltage caused by external loads.
- Easily programmable through the Curtis Model 1313-4431 Handhold Programmer or 1314-4402 PC Programming Station.
- Rugged anodized aluminum extruded housing meets IP65 environmental sealing standards for use in harsh environments.
SPECIFICATIONS: 1205M-6B403 CONTROLLERS
- Nominal input voltage: 60/72 V (1205M-6B403 has two available battery voltage settings. The voltage can be set to either 60 volts or 72 volts.)
- PWM operating frequency: 15.6 kHz
- Electrical isolation to heatsink (min.): 500 V
- KSI input current (no contactors engaged): <70 mA without programmer; <130 mA with programmer
- Logic input current: <2 mA
- Status LED output current (max.): 2 mA

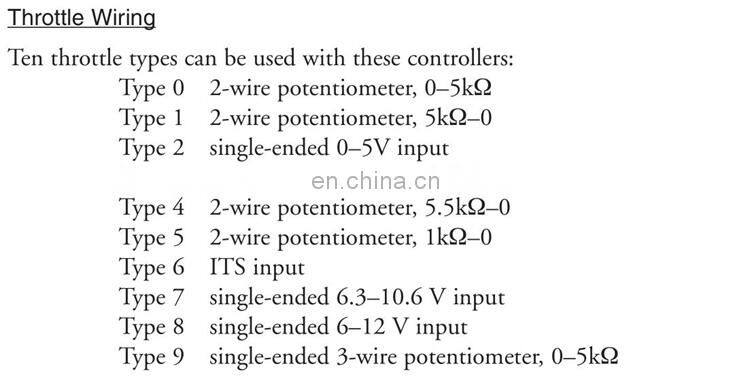

- Throttle type: 2-wire 0 – 5kΩ, 2-wire 5kΩ – 0, or 0 – 5V
- Storage ambient temperature range: -40°C to 85°C (-40°F to 185°F)
- Operating ambient temp. range: -40°C to 50°C (-40°F to 122°F)
- Package environmental rating: ISTA 2A; electronics sealed to IP65
- Weight: 2.7 kg
- Dimensions (L× W×H) : 199 × 146 × 77 mm
- Regulatory compliance: Safety — Designed to the requirements of EN 1175; EMC — - Designed to the requirements of EN 12895 and EN 61000
Attention:
- Accelerator type:0-5v;0-5k;5k-0
- Accelerator voltage:general 72V(You need to confirm with us)
Package List:
- 1 x CURTIS 1205M-6B403 60V 72V 400A
Note: If throttles are needed, please contact us for details and prices. Thank you!
Package: Normally we use the standard exporting packaging. We also can according to clients' request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shanghai airport to customers’ destination city air port.
3. By Sea: Delivery from the Shanghai sea port .
Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!
Our Advantages:
- Source only the best consumer goods and ensure the highest quality.
- Streamline the buying and payment process, and make it as easy as possible.
- Help the customers all over the world discover products and manufacturers in China.
- The Shortest order processed time and speed delivery.
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Samples arrived often need 3-5 days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.
Q8: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
Please do not hesitate to contact me if you need any further information
Whatsapp/Tel/Wechat: 8619902906050
Web:
Address: Room 303 Building 2,Youpin Cultural and Creative Park,Zhangkeng,Minzhi Street,Longhua District,518131,Shenzhen,China(Mainland)
Contact Us
