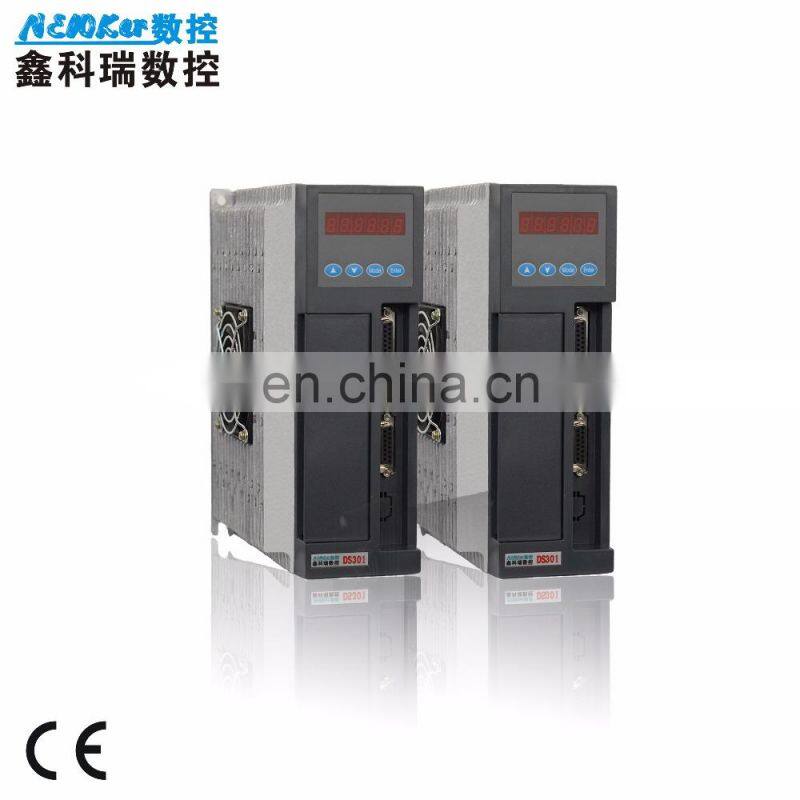

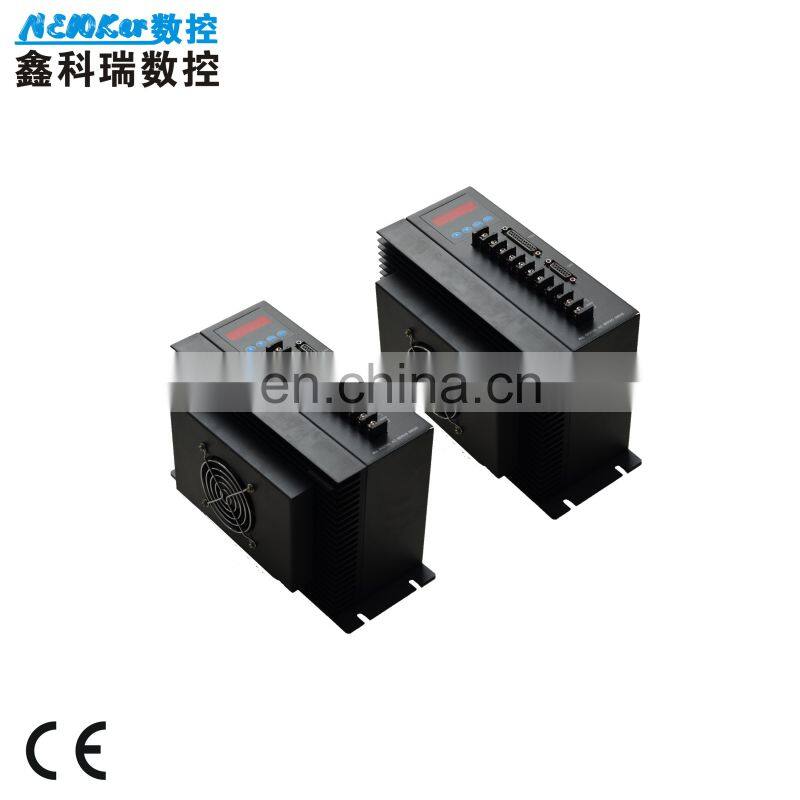

NewKer NEW302 ac Servo Drive ac Motor Drive Led Driver Retrofit Same as Fanuc
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Eco-friendly CNC Bus Led ac Driver NK302 for Industrial Machine
-
NewKer-CNC DS503 AC Servo Driver Cnc Similar Fanuc Cnc Control Card Driver
-
NewKer -CNC DS503 Series Servo Motor Drive Used in Automation Equipment
-
NewKer-CNC DS503 ac Servo Drive ac Motor Drive for CNC Turning Machine Similar Yaskawa Drive
-
NewKer-DS302 Best-quality Replace Nema23 Closed Loop Stepper Motor Driver for Industrial Cnc Controller Kit
-
NEWKer CNC Machine Driver DS301 for 220V Servo Motor in CNC Machine
Product Description
Poster
Products Description
Product: NewKer NEW302 ac servo drive ac motor drive led driver retrofit compare Panasonic
Single channel AC drive
Servo, absolute, modbus type
Dual channel AC drive
Servo, absolute, modbus type
380V AC drive
Servo, absolute, modbus type
Technical Parameters | ||||||||||
Servo Driver | Output Current | Output Power | Output Torque | Channels | Power Supply | |||||
NK301i | 30A | 2.3KW | 1~15NM | 1 bus absolute | ~220V | |||||
NK302i | 2x30A | 2x2.3KW | 1~15NM | 2 bus absolute | ||||||
NK501i | 50A | 3.7KW | 1~18NM | 1 bus absolute | ||||||
NK503i | 50A | 7.5KW | 1~55NM | 1 bus absolute | ~380V | |||||
NK753i | 75A | 11KW | 1~70NM | 1 bus absolute | ||||||
NK301iK | 30A | 2.3KW | 1~15NM | 1 bus absolute with full closed loop | ~220V | |||||
NEW301 | 30A | 2.3KW | 1~15NM | 1 absolute | ~220V | |||||
NEW202 | 2x20A | 2x1.2KW | 0.1~6NM | 2 absolute | ||||||
NEW302 | 2x30A | 2x2.3KW | 1~15NM | 2 absolute | ||||||
NEW501 | 50A | 3.7KW | 1~18NM | 1 absolute | ||||||
NEW503 | 50A | 7.5KW | 1~55NM | 1 absolute | ~380V | |||||
NEW753 | 75A | 11KW | 1~70NM | 1 absolute | ||||||
DS301 | 30A | 2.3KW | 1~15NM | 1 servo | ~220V | |||||
DS202 | 2x20A | 2x1.2KW | 0.1~6NM | 2 servo | ||||||
DS302 | 2x30A | 2x2.3KW | 1~15NM | 2 servo | ||||||
DS301K | 30A | 2.3KW | 1~15NM | 1 servo with full closed loop | ||||||
DS501 | 50A | 3.7KW | 1~18NM | 1 | ||||||
DS503 | 50A | 7.5KW | 1~55NM | 1 | ~380V | |||||
DS753 | 75A | 11KW | 1~70NM | 1 | ||||||
Product features
The motor power adapt 100W-11KW
Single channel, two-channels AC servo motor driver controlling system
Switch to torque, speed, position, locate with point to point and mixed mode
Position control, speed control, servo electrical tool rest and JOG controlling mode
With bulit-in 4 segment locating postion could control point to point locate freely
Accuracy of locating ±0.01%
Input frequency of pulse is less than 500KHZ
Analog input: 0~10V or 0~±10V
Modified the space vector algorithm, the torque is bigger than the normal SPWM, the sound is lower
Overload capacity 300%
The power supply adapt ~220V±20% or ~380V±20%
Pefect protection: Overload current, overload voltage, overload heat, short circuit and fault of encoder
Many kinds of display:Rotating speed, current and offset position of motor, number of pulse, pulse frequency, straight line speed,
diagnosis of input and output, history records of alarm and so on
The motor power adapt 100W-11KW
Single channel, two-channels AC servo motor driver controlling system
Switch to torque, speed, position, locate with point to point and mixed mode
Position control, speed control, servo electrical tool rest and JOG controlling mode
With bulit-in 4 segment locating postion could control point to point locate freely
Accuracy of locating ±0.01%
Input frequency of pulse is less than 500KHZ
Analog input: 0~10V or 0~±10V
Modified the space vector algorithm, the torque is bigger than the normal SPWM, the sound is lower
Overload capacity 300%
The power supply adapt ~220V±20% or ~380V±20%
Pefect protection: Overload current, overload voltage, overload heat, short circuit and fault of encoder
Many kinds of display:Rotating speed, current and offset position of motor, number of pulse, pulse frequency, straight line speed,
diagnosis of input and output, history records of alarm and so on
