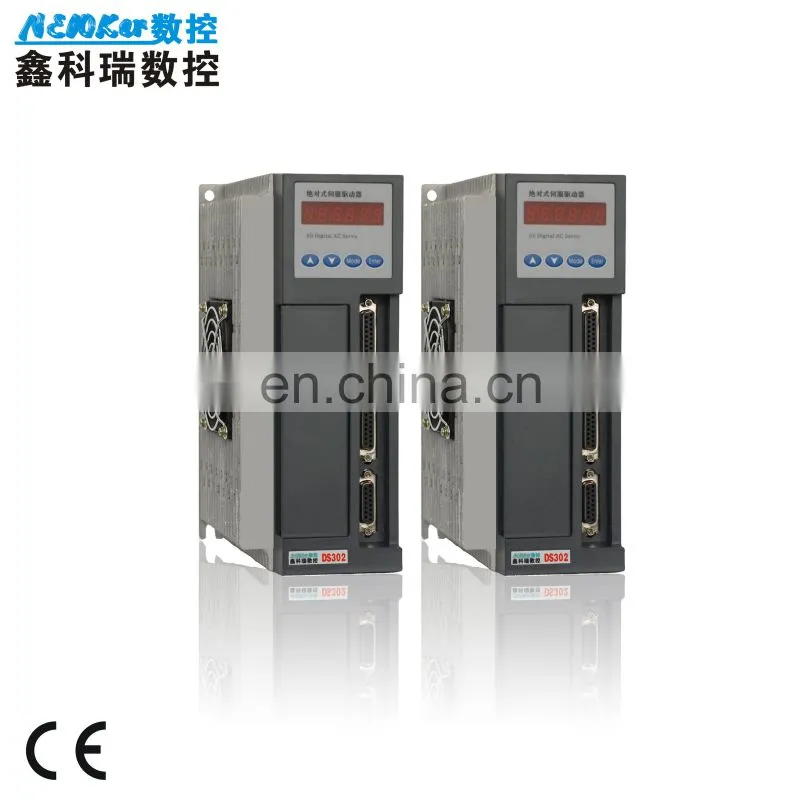

NEWKer Servo Driver DS301 for Servo Cnc Motion Controller
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2007
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NEWKer Original Digital AC Servo Drive DS301 Control 2.3kw Motor.NegotiableMOQ: 1 -
NEWker Servo Motor Drive Twin Channel ac Servo Driver for CNC MachinesNegotiableMOQ: 1
-
NewKer Servo Drive (NEWKer - DS302) AC 220VAC For 50W~1kW Servo MotorNegotiableMOQ: 1
-
New Model! NewKer Servo Driver Matching 200w-2.3kw Servo Motor for Cnc Controller KitNegotiableMOQ: 1
-
NewKer-DS301 Widely Used Control Mode Stepper Drive and Plc Control Servo Motor DriveNegotiableMOQ: 1
Poster
Products Description

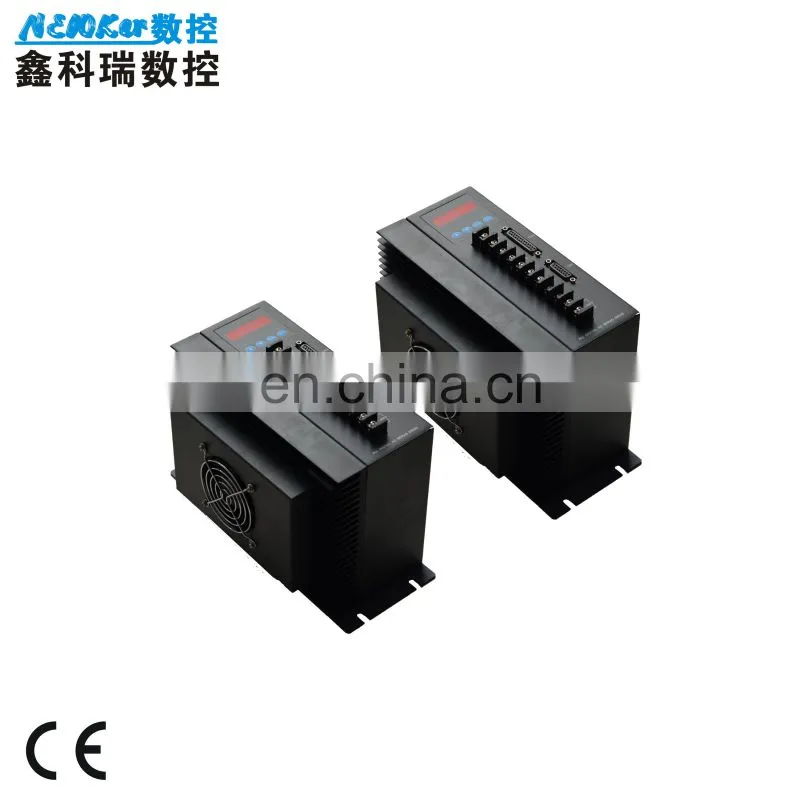

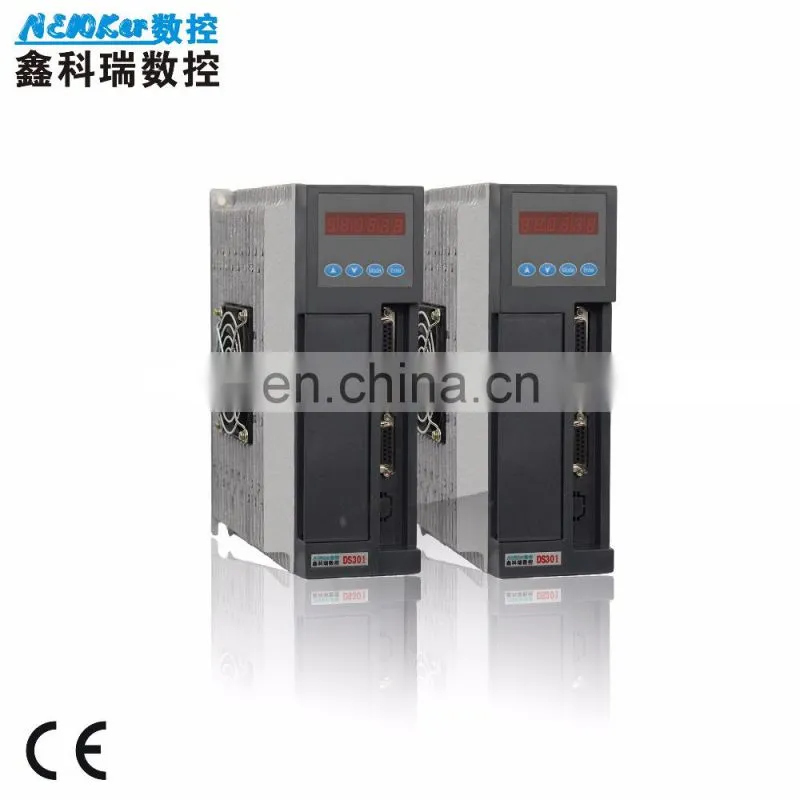

Product: NEWKer servo driver DS301 for servo cnc motion controller
Single channel AC drive
Servo, absolute, modbus type
Dual channel AC drive
Servo, absolute, modbus type
380V AC drive
Servo, absolute, modbus type
Technical Parameters |
||||||||||
Servo Driver |
Output Current |
Output Power |
Output Torque |
Channels |
Power Supply |
|||||
NK301i |
30A |
2.3KW |
1~15NM |
1 bus absolute |
~220V |
|||||
NK302i |
2x30A |
2x2.3KW |
1~15NM |
2 bus absolute |
||||||
NK501i |
50A |
3.7KW |
1~18NM |
1 bus absolute |
||||||
NK503i |
50A |
7.5KW |
1~55NM |
1 bus absolute |
~380V |
|||||
NK753i |
75A |
11KW |
1~70NM |
1 bus absolute |
||||||
NK301iK |
30A |
2.3KW |
1~15NM |
1 bus absolute with full closed loop |
~220V |
|||||
NEW301 |
30A |
2.3KW |
1~15NM |
1 absolute |
~220V |
|||||
NEW202 |
2x20A |
2x1.2KW |
0.1~6NM |
2 absolute |
||||||
NEW302 |
2x30A |
2x2.3KW |
1~15NM |
2 absolute |
||||||
NEW501 |
50A |
3.7KW |
1~18NM |
1 absolute |
||||||
NEW503 |
50A |
7.5KW |
1~55NM |
1 absolute |
~380V |
|||||
NEW753 |
75A |
11KW |
1~70NM |
1 absolute |
||||||
DS301 |
30A |
2.3KW |
1~15NM |
1 servo |
~220V |
|||||
DS202 |
2x20A |
2x1.2KW |
0.1~6NM |
2 servo |
||||||
DS302 |
2x30A |
2x2.3KW |
1~15NM |
2 servo |
||||||
DS301K |
30A |
2.3KW |
1~15NM |
1 servo with full closed loop |
||||||
DS501 |
50A |
3.7KW |
1~18NM |
1 |
||||||
DS503 |
50A |
7.5KW |
1~55NM |
1 |
~380V |
|||||
DS753 |
75A |
11KW |
1~70NM |
1 |
||||||
Product features
The motor power adapt 100W-11KW
Single channel, two-channels AC servo motor driver controlling system
Switch to torque, speed, position, locate with point to point and mixed mode
Position control, speed control, servo electrical tool rest and JOG controlling mode
With bulit-in 4 segment locating postion could control point to point locate freely
Accuracy of locating ±0.01%
Input frequency of pulse is less than 500KHZ
Analog input: 0~10V or 0~±10V
Modified the space vector algorithm, the torque is bigger than the normal SPWM, the sound is lower
Overload capacity 300%
The power supply adapt ~220V±20% or ~380V±20%
Pefect protection: Overload current, overload voltage, overload heat, short circuit and fault of encoder
Many kinds of display:Rotating speed, current and offset position of motor, number of pulse, pulse frequency, straight line speed,
diagnosis of input and output, history records of alarm and so on
The motor power adapt 100W-11KW
Single channel, two-channels AC servo motor driver controlling system
Switch to torque, speed, position, locate with point to point and mixed mode
Position control, speed control, servo electrical tool rest and JOG controlling mode
With bulit-in 4 segment locating postion could control point to point locate freely
Accuracy of locating ±0.01%
Input frequency of pulse is less than 500KHZ
Analog input: 0~10V or 0~±10V
Modified the space vector algorithm, the torque is bigger than the normal SPWM, the sound is lower
Overload capacity 300%
The power supply adapt ~220V±20% or ~380V±20%
Pefect protection: Overload current, overload voltage, overload heat, short circuit and fault of encoder
Many kinds of display:Rotating speed, current and offset position of motor, number of pulse, pulse frequency, straight line speed,
diagnosis of input and output, history records of alarm and so on
