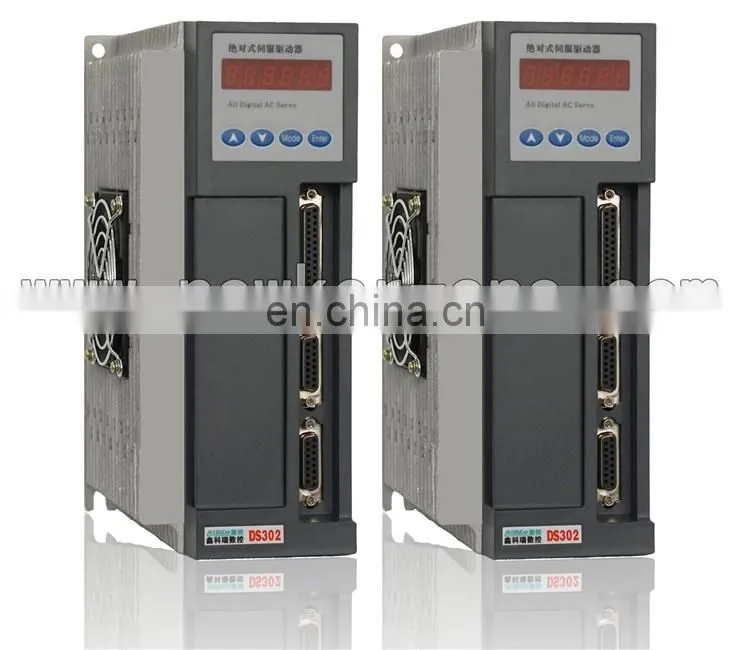

NEWker servo motor drive twin channel ac Servo Driver for CNC machines

Product features

The motor power adapt 100W-11KW

Single channel, two-channels AC servo motor driver controlling system

Switch to torque, speed, position, locate with point to point and mixed mode

Position control, speed control, servo electrical tool rest and JOG controlling mode

With bulit-in 4 segment locating postion could control point to point locate freely

Accuracy of locating ±0.01%

Input frequency of pulse is less than 500KHZ

Analog input: 0~10V or 0~±10V

Modified the space vector algorithm, the torque is bigger than the normal SPWM, the sound is lower

Overload capacity 300%

The power supply adapt ~220V±20% or ~380V±20%

Pefect protection: Overload current, overload voltage, overload heat, short circuit and fault of encoder

Many kinds of display:Rotating speed, current and offset position of motor, number of pulse, pulse frequency,

straight line speed, diagnosis of input and output, history records of alarm and so on
