Home > Manufacturing & Processing Machinery > Machine Tools > Machine Tools Accessories > NewKer-i6 New Teach Pendant for Second-hand or New Fanuc Robot Spare Parts

NewKer-i6 New Teach Pendant for Second-hand or New Fanuc Robot Spare Parts

NewKer-i6 New Teach Pendant for Second-hand or New Fanuc Robot Spare Parts thumbnail-1
NewKer-i6 New Teach Pendant for Second-hand or New Fanuc Robot Spare Parts thumbnail-2
NewKer-i6 New Teach Pendant for Second-hand or New Fanuc Robot Spare Parts thumbnail-3
NewKer-i6 New Teach Pendant for Second-hand or New Fanuc Robot Spare Parts thumbnail-4
NewKer-i6 New Teach Pendant for Second-hand or New Fanuc Robot Spare Parts thumbnail-5
NewKer-i6 New Teach Pendant for Second-hand or New Fanuc Robot Spare Parts photo-1
NewKer-i6 New Teach Pendant for Second-hand or New Fanuc Robot Spare Parts photo-2
NewKer-i6 New Teach Pendant for Second-hand or New Fanuc Robot Spare Parts photo-3
NewKer-i6 New Teach Pendant for Second-hand or New Fanuc Robot Spare Parts photo-4
NewKer-i6 New Teach Pendant for Second-hand or New Fanuc Robot Spare Parts photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2007
Annual Export Value:
US$50 Million - US$100 Million
Contact Supplier Request Quote Chat Now
Chengdu Newker CNC-Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

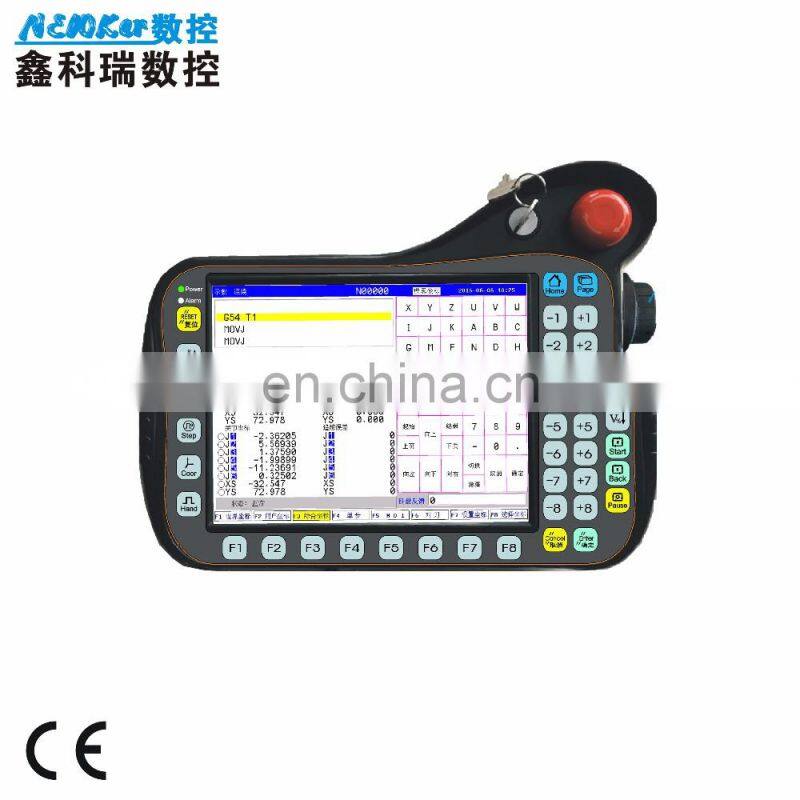

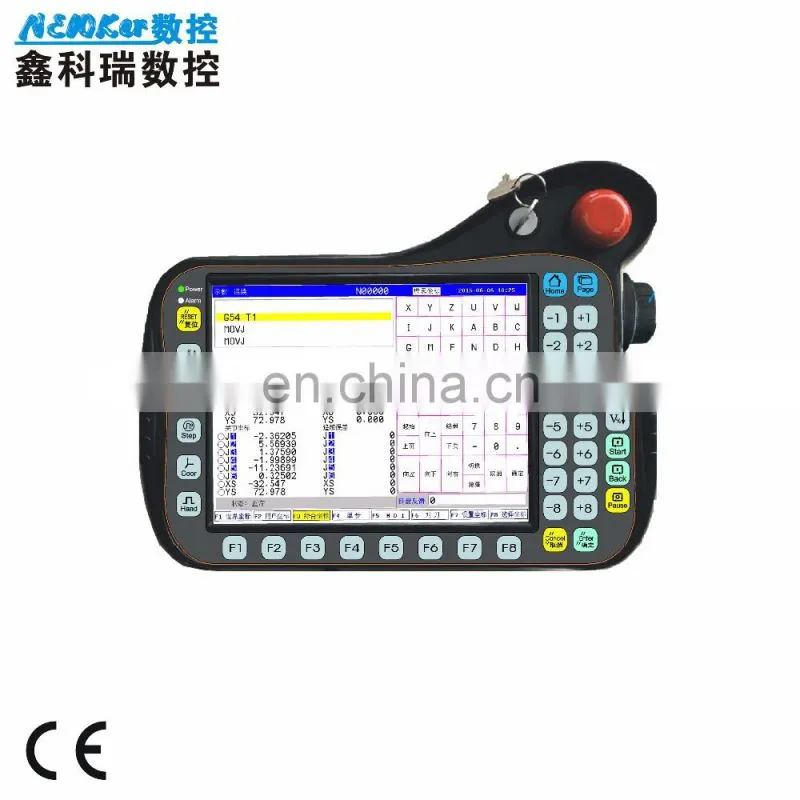

1.Product Name：NewKer-i6 New Teach pendant for Second-hand or New Fanuc Robot Spare Parts
2. Axis: 6 axis New Teach pendant for Second-hand or New Fanuc Robot
3. Application: Welding, pallatizing, painting, tending and other special

Products Show
System function
Program function
Number of control shaft：
6 axis New Teach pendant for Second-hand or New Fanuc Robot（J1, J2, J3, J4, J5, J6）
Specify the welding current:
AA/S
Type:
Bus absolute type and servo type
Specify the welding voltage:
VV/SS
The most programming：
±99999.999
Start welding:
AS*
Encoder of motor:
17 bits and 23 bits
End welding:
AE*
I/O points:
48X32 I/O
Start swing weld:
WS*
0~10V analog:
2 ways 0~10V analog
End swing weld:
WE
Operation:
Teach, Repaly, Remote
Movement of joint:
MJ or MOVJ or G0
Wifi function:
Connect with Phone to send program
Movement of straight line:
ML or MOVL or G1
RS232 function:
RS232 to connect with PC
Movement of arc:
MC or MOVC or G6
USB function:
Update and send program
Specify the speed:
V= to specify the feeding speed
Program mode:
Teach, G code, Technics parameter
Specify the ratio:
VJ= to specify the feeding ratio
Motion function:
Point to point, straight line, arc
The speed of changing track:(smoothness)
PL=
Instructions:
Movement, Logic, Calculation, Technics,         G code in CNC
Strat parallel translation：
SN*
Coordiante system:
Joint, User, Tool, World
End parallel translation:
SF
PLC function:
Edit the ladder, 8000 steps
Read the current position:
PK***
Alarm information:
Emergency, drive,  maintenance, error of starting arc and coordinate
Calculate the value of two position:
PX***=PT*** - PT***
Limit function：
Soft limit
Algorithm of controller:
1) Vertical multi joint serial robot;
2) Vertical articulated parallelogram robot;
3) Vertical multi joint L shape wrist robot;
4) Pole coordinate robot；
5) SCARA robot；
6) Delta robot；
7) Special robot；
The parallel value:
PX*** = PX*** + PX*** and PX*** = PX*** - PX***
Password protection：
Multilevel random password protection
G code:
The same as the standard cnc controller
User macro program：
Have
Start Searching:
ST* P*
Electrical gear function：
Have
End Searching:
SE
Application：
Welding, Palletizing, Painting, Tending, Laser cutting and other special robot arm
Macro program instructions:
IF.. THEN;
WHILE;
GOTO;
WAT

Product features

★ Never Crush the machine, the system with memorial function (Abosolute feature)

★ Needn't install hard limit in this 4-8 joint axis welding robot controller all kit and back to the zero point (Abosolute feature)


★ Use phone connect with controller by Wifi function, easier and more convenient to send program (NewKer feature)


★ G code program, only NewKer-CNC robot controller could work with G code program like cnc controller  (NewKer feature)


★ Teach function with technics parameter, easier to operate (NewKer feature)


★ PLC and macro program are all opened (NewKer feature)


★ Only one cable come out from controller, easier to connect (Bus type feature)


★ Multilevel random password protection, more safety (NewKer feature)

Our Service

Our Seller

Name:JinHua Chen
Tel:13981709850
QQ:706983380
E-mail:706983380 @qq.com

Our Techinical Service

Name:GuangCan Liao
Tel:13550063039
QQ:357022449
E-mail:357022449 @qq.com

Our Customer Service

Name:Xin Liao
Tel:13548198210
QQ:461536982
E-mail:461536982 @qq.com

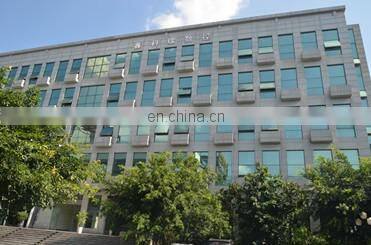

Our Company

Factory

Our Factory

Warehouse

Our Warehouse

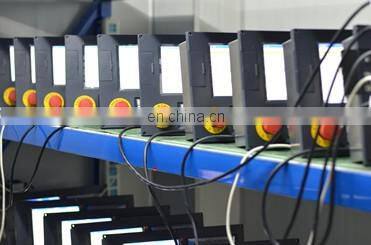

Test Room

24 hours work in different tempreture and humidity

Reception

Our Reception

Packing & Delivery

1.Industrial packing(NewKer-i6 New Teach pendant for Second-hand or New Fanuc Robot Spare Parts): plastic bag +styrofoam+ carton +wooden pallets
2.Commercial packing: plastic bag+styrofoam+ carton
3.As the clients' requirement
Delivery Detail: Normally ready goods and stock within 1-3days

1. Special logistics packaging
2. Suitable carton size
3. Shock bubble film
4. Professional placement
5. Professional shock
6. Complete package

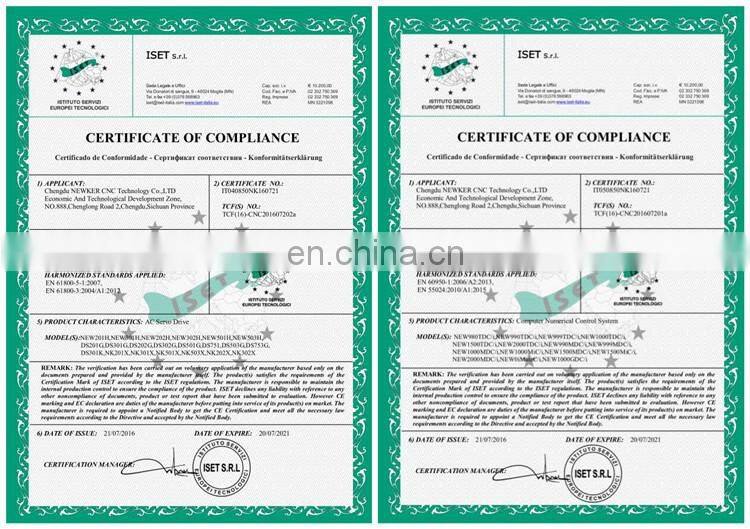

Our Certifications

Our product after strict many test and examine
Our purpose:
Make the most practical ideal CNC system
Casting the high-quality goods to service the world

Customer Photo

Our customer

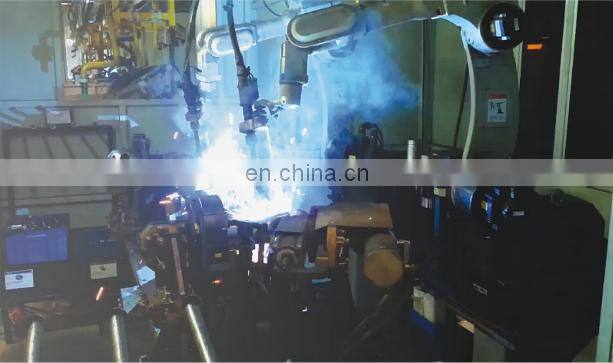

Our customer is using our set of controller kit to control welding robot arm (NewKer-i6 New Teach pendant for Second-hand or New Fanuc Robot Spare Parts).

Our customer

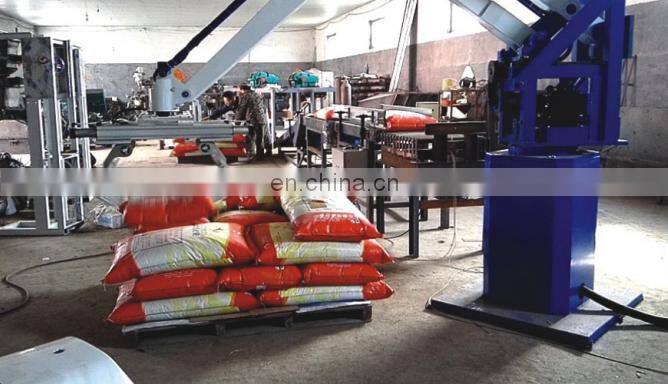

Our customer is using our set of controller kit to control palletizing robot arm (NewKer-i6 New Teach pendant for Second-hand or New Fanuc Robot Spare Parts).

Our customer

Our customer is using our set of controller kit to control tending robot arm (NewKer-i6 New Teach pendant for Second-hand or New Fanuc Robot Spare Parts).

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: 100% in advance.
