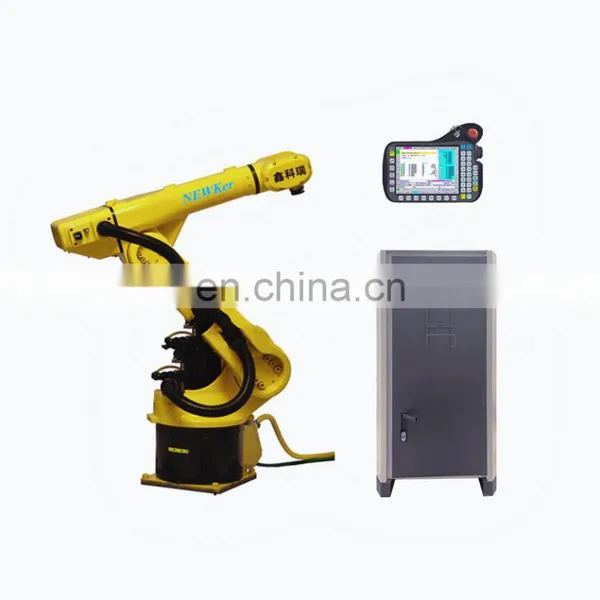

low cost China industrial robot arm 6 axis with robot controller for palletizing

Name: low cost China industrial robot arm 6 axis with robot controller for palletizing
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Poster

Products Description

Robot Specification

Parameter details

No. of controller shaft	4-8 axiscontrol panelof industrial automatic motoman arc welding robot(j1,j2,j3,j4,j5,j6)	Specify the welding current:	AA/S
Type:	Bus absolute type and servo type	Specify the welding voltage:	VV/SS
The most programminng:	±99999.999	Start welding:	AS*
Encoder of motor:	17bits and 23bits	End welding:	AE*
I/O points:	48*32 I/O	Start swing weld:	WS*
0-10V analog:	2 ways 0-10V analog	End swing weld:	WE
Operation:	Teach,Repaly,Remote	Movement of joint:	MJ or MOVJ or GO
Wifi function:	Connect with phone to send program	Movement od straight line:	ML or MOVL or G1
RS 232 function:	RS232 to connect with PC	Movement of arc:	MC or MOVC or G6
USB function:	Update and send program	Specify the speed:	V=to specify the feeding speed
Program mode:	Teach,G code,Technics parameter	Specify the ratio:	VJ= to specify the feeding ratio
Motion function:	Point to point,straight line,arc	The speed of changing track:(smoothness	PL=
Instructions:	Movement,Logic,Calculation,Technics,G code in CNC	Start parallel translation:	SN*
Coordinate system:	Joint,User,Tool,World	End parallel translation:	SF
PLC function:	Edit the ladder,8000 steps	Read the current position:	PK***
Alarm information:	Emergency,drive,maintenance,error of starting arc and coordinate	Calculate the value of two position:	PX*=PT-PT**
Limit function:	Soft limit	Start searching:	STP
Algorithm of controller:	1)Vertical multi joint serial tobot; 2)Vertical articulated parallelogram robot; 3)Vertical multi joint L shape wrist robot; 4)Pole coordinate robot; 5)SCARA robot; 6)Delta robot; 7)Special robot;	End searching	SE
Password protection:	Multilevel random password protection	Straight earching instruction:	SX+/-,SY+/-,SZ+/-,
User macro program:	Have	The parallel value:	PX*=PX+PX and PX=PX-PX*
Electrical gear function:	Have	G code:	The same as the standard cnc controller
Application:	Welding,palletizing,Painting,Tending,Laser cutting and other special robor arm	Marco program instructions:	If..THEN;WHILE;GOTO;WAT

Function advantage

Product features
Never Crush the machine, the system with memorial function (Abosolute feature)

Needn't install hard limit in this 4-8 joint axis welding robot controller all kit and back to the zero point (Abosolute feature)

Use phone connect with controller by Wifi function, easier and more convenient to send program (NewKer feature)

G code program, only NewKer-CNC robot controller could work with G code program like cnc controller (NewKer feature)

Teach function with technics parameter, easier to operate (NewKer feature)

PLC and macro program are all opened (NewKer feature)

Only one cable come out from controller, easier to connect (Bus type feature)

Multilevel random password protection, more safety (NewKer feature)
