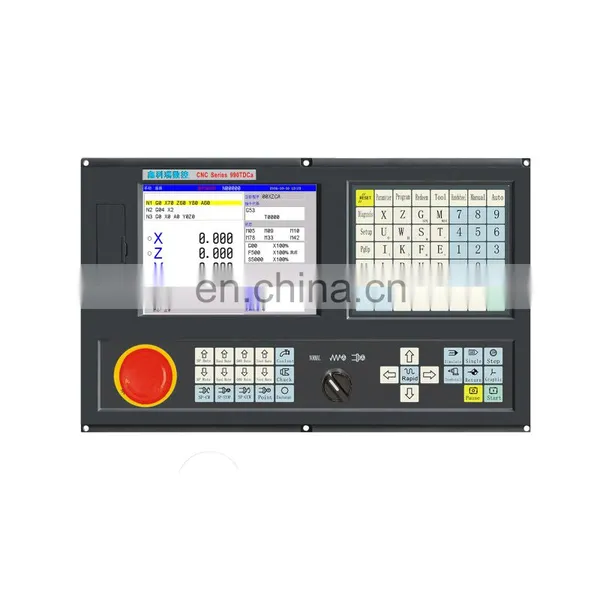

Best price CNCkit NEW990MDCa 4 axis for cnc milling machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- CNC kit NEW990MDCa 4 axis for cnc machine all replace for gsk cnc controller
- mesa de control cnc Pci machine standalone cnc lathe controller same as Szgh motion control system for cnc milling
- axis cnc controller linear or glass scale same as fagor three axis cnc control usb router controller box
- NewKer-CNC economical 2 axis cnc turning controller for cnc wood lathe retrofit machine
- NEW990TDCa series CNC Center Milling Machine Console 2 axis CNC console kit similar Fanuc
- NEW990TDCa 3 axis low price cnc controller kit for cnc lathe machine
Product Description
Poster
Product
Product detail:Best price CNCkit NEW990MDCa 4 axis for cnc milling machine
Parameter details | ||||||
System Function | G code shows | |||||
number of control axis | 3~4 (X,Y,Z,A) | Locate rapidly: | G00 | |||
The smallest programming: | 0.001mm | Straight line interpolation | G01 | |||
The most programming: | ±99999.999mm | Arc interpolation: | G02/03 | |||
The highest speed: | 30m/min | Thread cut: | G02/03 | |||
Feed speed: | 0.001~15m/min | high speed deep drilling loop | G73 | |||
Continuous manual: | one axis or two axis at the same time | point drilling loop | G81, G82 | |||
Line interpolation: | Straight line, arc, screw thread interpolation | Line cutting drilling loop | G73 | |||
Cutter compensation: | Length of the compansation、nose of tool compensation | Boring loop | G85, G86, G89 | |||
Spindle function: | gear、Double analog control、Rigid tapping | Tapping loop | G74, G84 | |||
Handwheel function: | panel、handheld | program loop | G22, G800 | |||
handwheel processing: | The handwheel processing function | local coordinate system: | G52 | |||
Screen protection: | The screen protection function | check skip | G31, G311 | |||
Communication function: | RS232、USB interface | polar programming | G15/16 | |||
Compensation function: | cutter, clearance, screw, radius compensation | metric and inch programming | G20/21 | |||
Edit program: | relative/absolute programming, hybird programming | program mode | G90/91 | |||
Preread function: | Preread 10,000 short straight lines | processing plane | G17, G18, G19 | |||
limit position function | hard limit, soft limit | workpiece coordinate system: | G54~G59 | |||
Password protection: | Multilevel password protection | tool length compensation | G43, G44, G49 | |||
Input/output: | I/O 24*24 | tool radius compensation | G45~G48 | |||
PLC programme: | All open PLC design | C tool radius compensation | G40, G41, G42 | |||
Acceleration and deceleration control: | Straight line、Index | Accurate positioning/continuous path processing | G60/G64 | |||
Number of encoder: | any setting | returns the starting point | G26, G261~G264 | |||
User macro program: | Have | returns the fixed point | G25, G61, G60 | |||
Electrical gear function: | Have | returns the reference point | G28, G281~G284 | |||
delay function | G04 | |||||
auxiliary function: | S、M、T |
Function advantages
Product features
Never Crush the machine, the system with memorial function (Abosolute feature)
Needn't install hard limit with this 3 axis control wood drilling and milling machine and back to the zero point (Abosolute
feature)
Adapt bus modbus technology, ARM + DSP + FPGA technology
USB and RS232 port, DNC function of USB (NEW)
Network remote technology and could diagnose the system online (NEW)
User's storage is 128M and could be infinite number of program (NEW)
Abosolute type of motor (17bits multi circle) controlling technology (NEW)
The most moving rapid speed is 300m/min, processing speed reaches 0.01 ~ 30m/min (NEW)
The cycle of interpolation is 2ms, controlling accuracy is 0.1um (NEW)
All closed-loop with grating ruler control and the accuracy is <2um (NEW)
Preread the short line program to satisfy with high speed engraving and cutting (NEW)
Intelligent Man-Machine dialog interface (NEW)
Needn't install hard limit with this 3 axis control wood drilling and milling machine and back to the zero point (Abosolute
feature)
Adapt bus modbus technology, ARM + DSP + FPGA technology
USB and RS232 port, DNC function of USB (NEW)
Network remote technology and could diagnose the system online (NEW)
User's storage is 128M and could be infinite number of program (NEW)
Abosolute type of motor (17bits multi circle) controlling technology (NEW)
The most moving rapid speed is 300m/min, processing speed reaches 0.01 ~ 30m/min (NEW)
The cycle of interpolation is 2ms, controlling accuracy is 0.1um (NEW)
All closed-loop with grating ruler control and the accuracy is <2um (NEW)
Preread the short line program to satisfy with high speed engraving and cutting (NEW)
Intelligent Man-Machine dialog interface (NEW)
