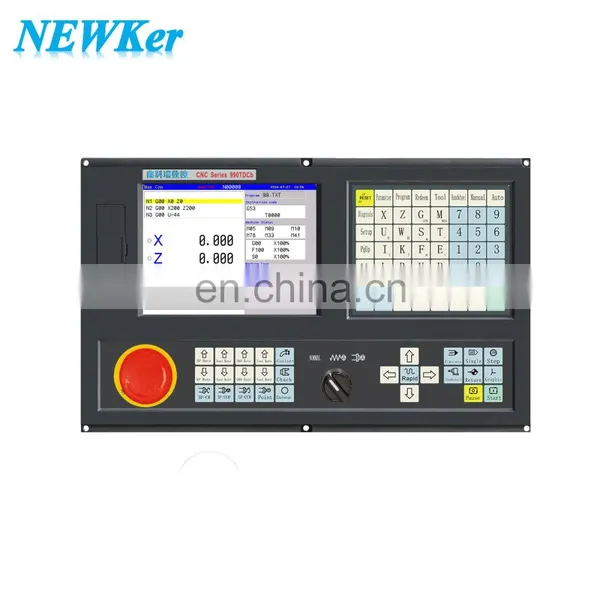

3 Axiscontroller Similar Adtech Drilling Cnc Controller 4 Axis Cnc Lathe Controller
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
NEWKer Mini 2 Axis Cnc Controller With PLC Function for Mini Milling Machine Used Cnc Controller GSK Cnc Control System
-
NEWKer CNC 2 Axis Controller for Retrofitting Old Turning and Tapping Machinery
-
CNC Lathe Controller NEW990TDCa 4 Axis Turning Machine Controller
-
2 Axis Cnc Control System NEW990TDCa Controller for Teaching Turning Lathe Machine
-
High Quality NEWKer CNC Controller Model NEW990TDCa 3 Axis for Wood Cnc Router Lathe Machine System
-
NEWKer Computerized Numerical Controller for 3 Axis Router and Cutting Machine
Product Description
Poster
Product
Product detail:NEWKer Professional compatible 3 axis CNC Controller with cnc punch controller for microstep control cnc
Parameter details | ||||||
System Function | G code shows | |||||
number of control axis | 2-4 (X,Y, C,A) | Locate rapidly: | G00 | |||
The smallest programming: | 0.001mm | Straight line interpolation | G01 | |||
The most programming: | ±99999.999mm | Arc interpolation: | G02/03 | |||
The highest speed: | 30m/min | Thread cut: | G32 | |||
Feed speed: | 0.001~15m/min | Cycle of cutting cyliner or cone: | G90 | |||
Continuous manual: | one axis or two axis at the same time | Cycle of cutting end face: | G94 | |||
Line interpolation: | Straight line, arc, screw thread interpolation | cycle of cutting thread | G92 | |||
Cutter compensation: | Length of the compansation、nose of tool compensation | Fixed cycle of tapping | G93 | |||
Cutter compensation input: | Try to cut measuring input mode | Cycle of rough cut in excircle | G71 | |||
Spindle function: | gear、Double analog control、Rigid tapping | Cycle of rough cut at end face: | G72 | |||
Handwheel function: | panel、handheld | Cycle of closed cut | G73 | |||
handwheel processing: | The handwheel processing function | Cycle of drill deep hole at end face | G74 | |||
Screen protection: | The screen protection function | Cycle of cutting groove with external diameter | G75 | |||
Tool rest function: | Row tool rest、Electric too post 99 knife | Cycle of cutting compound thread | G76 | |||
Communication function: | RS232、USB interface | Cycle of program | G22,G800 | |||
Compensation function: | cutter, clearance, screw, radius compensation | Local coordinate system: | G52 | |||
Edit program: | relative/absolute programming, hybird programming | Detect the instruction of skip | G31,G311 | |||
limit position function | soft limit, hard limit | Pole coordinate | G15,G16 | |||
Thread function | metric and inch format, straight thread, taper thread and so on | Metrical/Imperial programme: | G20,G21 | |||
Preread function: | Preread 10,000 short straight lines | Set coordinate, offset | G184,G185 | |||
Password protection: | Multilevel password protection | Workpiece coordinate system: | G54~G59 | |||
Input/output: | I/O 24*24 | Tool radius C | G40,G41,G42 | |||
PLC programme: | All open PLC design | Accurate locating/continuous path process: | G60/G64 | |||
Acceleration and deceleration control: | Straight line、Index | Constant linear cutting: | G96/G97 | |||
Number of encoder: | any setting | Feeding mode: | G98,G99 | |||
User macro program: | Have | Backing to start point of program: | G26 | |||
Electrical gear function: | Have | Backing to the fixed point: | G25,G61,G60 | |||
Backing to the datum point: | G28 | |||||
Suspend: | G04 | |||||
Auxiliary function: | S、M、T | |||||
Function advantages
Product features
Never Crush the machine, the system with memorial function (Abosolute feature)
Needn't install hard limit with this 3 axis control wood drilling and milling machine and back to the zero point (Abosolute
feature)
Adapt bus modbus technology, ARM + DSP + FPGA technology
USB and RS232 port, DNC function of USB (NEW)
Network remote technology and could diagnose the system online (NEW)
User's storage is 128M and could be infinite number of program (NEW)
Abosolute type of motor (17bits multi circle) controlling technology (NEW)
The most moving rapid speed is 300m/min, processing speed reaches 0.01 ~ 30m/min (NEW)
The cycle of interpolation is 2ms, controlling accuracy is 0.1um (NEW)
All closed-loop with grating ruler control and the accuracy is <2um (NEW)
Preread the short line program to satisfy with high speed engraving and cutting (NEW)
Intelligent Man-Machine dialog interface (NEW)
Needn't install hard limit with this 3 axis control wood drilling and milling machine and back to the zero point (Abosolute
feature)
Adapt bus modbus technology, ARM + DSP + FPGA technology
USB and RS232 port, DNC function of USB (NEW)
Network remote technology and could diagnose the system online (NEW)
User's storage is 128M and could be infinite number of program (NEW)
Abosolute type of motor (17bits multi circle) controlling technology (NEW)
The most moving rapid speed is 300m/min, processing speed reaches 0.01 ~ 30m/min (NEW)
The cycle of interpolation is 2ms, controlling accuracy is 0.1um (NEW)
All closed-loop with grating ruler control and the accuracy is <2um (NEW)
Preread the short line program to satisfy with high speed engraving and cutting (NEW)
Intelligent Man-Machine dialog interface (NEW)
