NEWKer CNC Kit High Stability 2 Axis CNC Router Controller Kit CNC for Milling/router/lathe/turning Machine

NEWKer CNC Kit High Stability 2 Axis CNC Router Controller Kit CNC for Milling/router/lathe/turning Machine thumbnail-1
NEWKer CNC Kit High Stability 2 Axis CNC Router Controller Kit CNC for Milling/router/lathe/turning Machine thumbnail-2
NEWKer CNC Kit High Stability 2 Axis CNC Router Controller Kit CNC for Milling/router/lathe/turning Machine thumbnail-3
NEWKer CNC Kit High Stability 2 Axis CNC Router Controller Kit CNC for Milling/router/lathe/turning Machine thumbnail-4
NEWKer CNC Kit High Stability 2 Axis CNC Router Controller Kit CNC for Milling/router/lathe/turning Machine thumbnail-5
NEWKer CNC Kit High Stability 2 Axis CNC Router Controller Kit CNC for Milling/router/lathe/turning Machine photo-1

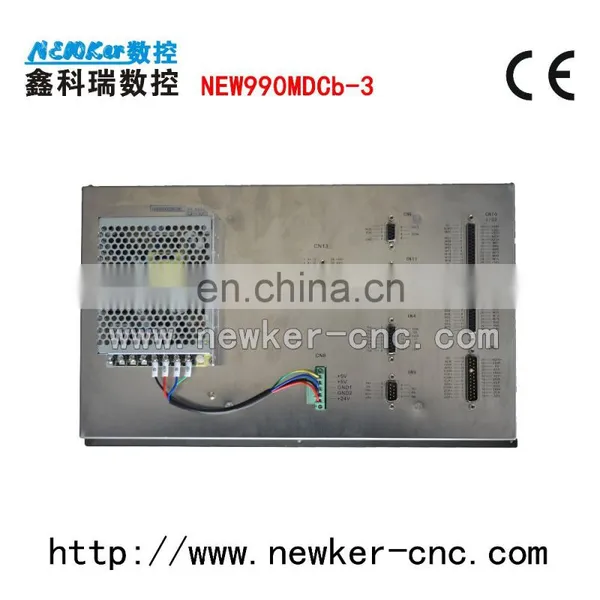

NEWKer CNC Kit High Stability 2 Axis CNC Router Controller Kit CNC for Milling/router/lathe/turning Machine photo-2

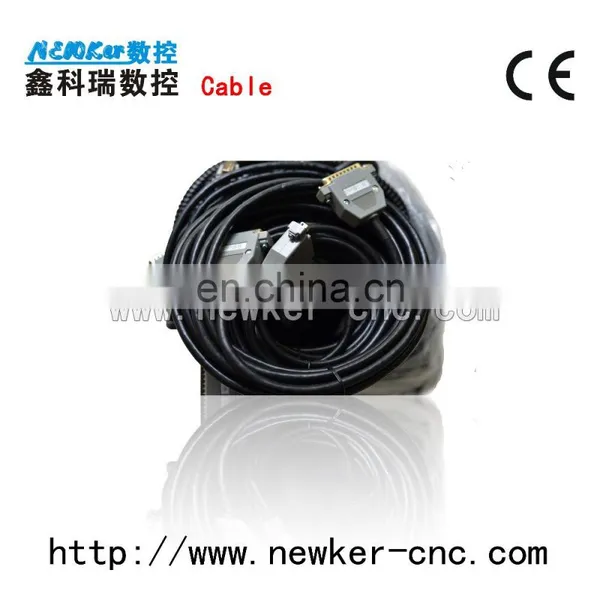

NEWKer CNC Kit High Stability 2 Axis CNC Router Controller Kit CNC for Milling/router/lathe/turning Machine photo-3
NEWKer CNC Kit High Stability 2 Axis CNC Router Controller Kit CNC for Milling/router/lathe/turning Machine photo-4
NEWKer CNC Kit High Stability 2 Axis CNC Router Controller Kit CNC for Milling/router/lathe/turning Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2007
Annual Export Value:
US$50 Million - US$100 Million
Contact Supplier Request Quote Chat Now
Chengdu Newker CNC-Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

1.Product Name：High stability 2 axis CNC router controller kit for cnc plasma cutting machine
2. Axis: 2 axis cnc controller board
3. For machine tools：cnc lathe、special machine tools

Products Show
System function
G code shows
Number of control shaft：
2 axis （X、Z）
Locate rapidly：
G00
The smallest programming：
0.001mm
Straight line interpolation：
G01
The most programming：
±99999.999mm
Arc interpolation：
G02/G03
The highest speed：
30m/min
Thread cut：
G32
Feed speed：
0.001～15m/min
Cycle of cutting cylinder or cone：
G90
Continuous manual：
one axis or multi axis at the same time
Cycle of cutting end face：
G94
Line interpolation：
Straight line, arc, screw thread interpolation
Cycle of cutting thread：
G92
Cutter compensation：
length of the compensation、nose of tool compensation
Fixed cycle of tapping：
G93
Cutter compensation input：
Try to cut measuring input mode
Cycle of rough cut in excircle：
G71
Spindle function：
gear、Double analog control、Rigid tapping
Cycle of rough cut at end face：
G72

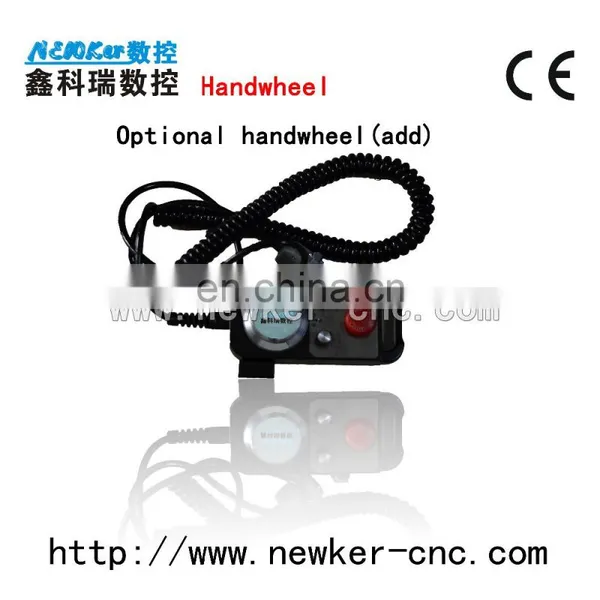

Handwheel function：
panel、handheld
Cycle of closed cut：
G73
Handwheel processing：
The handwheel processing function
Cycle of drill deep hole at end face：
G74
Screen protection：
The screen protection function
Cycle of cutting groove with external diameter:
G75
Tool rest function：
Row tool rest、Electric tool post 99 knife
Cycle of cutting compound thread：
G76
Communication function：
RS232、Usb interface
Cycle of program：
G22、G800
Compensation function：
Tool compensation、Space compensation、 Screw pitch compensation、Radius compensation
Local coordinate system：
G52
Edit program：
Metric/Imperial、Relative/Absolute
Detect the instruction of skip：
G31、G311
Limit function：
Soft limit、Hard limit
Pole coordiante programme：
G15、G16
Thread function：
Metric/Imperial、Straight thread、taper thread and so on
Metrical/Imperial programme：
G20、G21
Preread function：
Preread 10000 short straight lines
Set coordinate、offset
G184、G185
Password protection：
Multilevel password protection
Workpiece coordiante system：
G54~G59
Input/output：
I/O 24X24
Tool radius C compensastion：
G40、G41、G42
PLC programme:
All open PLC design
Accurate locating/continuous path process：
G60/G64
Acceleration and deceleration control：
Staight line 、Index
Constant linear cutting：
G96/G97
Number of encoder：
Arbitrary set
Feeding mode：
G98、G99
User macro program：
Have
Backing to start point of progarm：
G26
Electrical gear function：
Have
Backing to the fixed point：
G25、G61、G60
Application：
Lathe、special machine tools
Backing to the datum point：
G28
Suspend：
G04
Auxiliary function：
S、M、T

Product features

★Never Crush the machine, the system with memorial function (Abosolute feature)

★Needn't install hard limit in this 2 axis cnc controller board and back to the zero point (Abosolute feature)

★Adapt bus modbus technology, ARM + DSP + FPGA technology

★USB and RS232 port, DNC function of USB (NEW)

★Network remote technology and could diagnose the system online (NEW)

★User's storage is 128M and could be infinite number of program (NEW)

★Abosolute type of motor (17bits multi circle) controlling technology (NEW)

★The most moving rapid speed is 300m/min, processing speed reaches 0.01 ~ 30m/min (NEW)

★The cycle of interpolation is 2ms, controlling accuracy is 0.1um (NEW)

★All closed-loop with grating ruler control and the accuracy is <2um (NEW)

★Preread the short line program to satisfy with high speed engraving and cutting (NEW)

★Intelligent Man-Machine dialog interface (NEW)

Our Service

Our Seller

Name:JinHua Chen
Tel:13981709850
QQ:706983380
E-mail:706983380 @qq.com

Our Techinical Service

Name:GuangCan Liao
Tel:13550063039
QQ:357022449
E-mail:357022449 @qq.com

Our Customer Service

Name:Xin Liao
Tel:13548198210
QQ:461536982
E-mail:461536982 @qq.com

Our Company

Factory

Our Factory(High stability 2 axis CNC router controller kit for cnc plasma cutting machine)

Warehouse

Our Warehouse

Test Room

24 hours work in different tempreture and humidity

Reception

Our Reception

Packing & Delivery

1.Industrial packing(High stability 2 axis CNC router controller kit for cnc plasma cutting machine): plastic bag +styrofoam+ carton +wooden pallets
2.Commercial packing: plastic bag+styrofoam+ carton
3.As the clients' requirement
Delivery Detail: Normally ready goods and stock within 1-3days

1. Special logistics packaging(High stability 2 axis CNC router controller kit for cnc plasma cutting machine)

2. Suitable carton size

3. Shock bubble film

4. Professional placement

5. Professional shock

6. Complete package

Our Certifications

Our product after strict many test and examine
Our purpose:
Make the most practical ideal CNC system
Casting the high-quality goods to service the world

Customer Photo

Our customer

Our customer is delivering the machines with our compelete set of system (High stability 2 axis CNC router controller kit for cnc plasma cutting machine).

Our customer

Processing customer is using our set of system to reduce their manual work.(High stability 2 axis CNC router controller kit for cnc plasma cutting machine)

Our customer

Our customer is on an exhibition with our set of system and our mechanical hand to realize non-manual control.(High stability 2 axis CNC router controller kit for cnc plasma cutting machine)

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

NEWKer kit High stability 2 axis CNC router controller kit for milling/router/lathe/turning machine NEWKer kit High stability 2 axis CNC router controller kit for milling/router/lathe/turning machine NEWKer kit High stability 2 axis CNC router controller kit for milling/router/lathe/turning machine NEWKer kit High stability 2 axis CNC router controller kit for milling/router/lathe/turning machine NEWKer kit High stability 2 axis CNC router controller kit for milling/router/lathe/turning machine NEWKer kit High stability 2 axis CNC router controller kit for milling/router/lathe/turning machine NEWKer kit High stability 2 axis CNC router controller kit for milling/router/lathe/turning machine NEWKer kit High stability 2 axis CNC router controller kit for milling/router/lathe/turning machine

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A:100% in advance.
