CNC Lathe Machine Control System NEW1000TDCb 2axis is Similar to Mitsubishi Cnc Controller

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Poster

Product

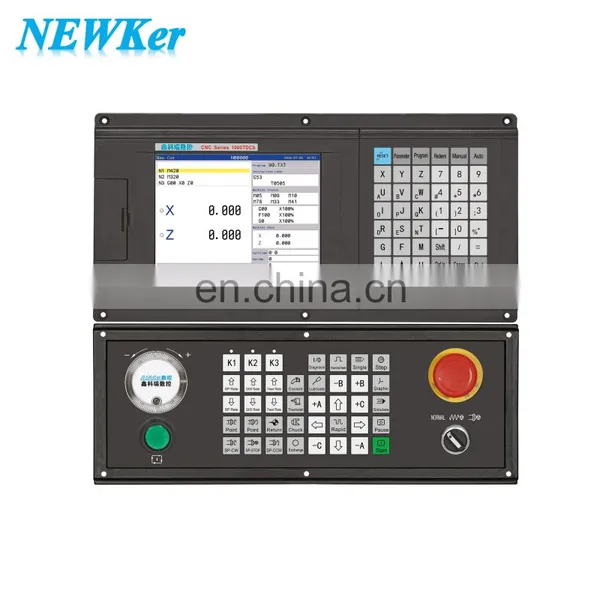

Product detail:CNC lathe machine control system NEW1000TDCb 2axis is similar to mitsubishi cnc controller

Subpanel

Parameter details
System Function			G code shows
Number of control axis	2~8(X,Z,C,A,B,Y,Xs,Ys)	Locate rapidly:	G00
The smallest programming:	0.001mm	Straight line interpolation	G01
The most programming:	±99999.999mm	Arc interpolation:	G02/03
The highest speed:	60m/min	Thread cut:	G32
Feed speed:	0.001~30m/min	Cycle of cutting cyliner or cone:	G90
Continuous manual:	one axis or multiple axis at the same time	Cycle of cutting end face:	G94
Line interpolation:	Straight line, arc, screw thread interpolation	cycle of cutting thread	G92
Cutter compensation:	Length of the compansation、radius nose of tool compensation	Fixed cycle of tapping	G93
Cutter compensation input:	Try to cut measuring input mode	Cycle of rough cut in excircle	G71
Spindle function:	gear、Double analog control、Rigid tapping	Cycle of rough cut at end face:	G72
Handwheel function:	panel、handheld	Cycle of closed cut	G73
handwheel processing:	The handwheel processing function	Cycle of drill deep hole at end face	G74
Screen protection:	The screen protection function	Cycle of cutting groove with external diameter	G75
Tool rest function:	Row tool rest、Electric too post 99 knife	Cycle of cutting compound thread	G76
Communication function:	RS232、USB interface	Cycle of program	G22,G800
Compensation function:	Tool compansation、Space compensation、Screw pitch compensation、Radius compensation	Local coordinate system:	G52
Edit program:	Metric/Imperial、Straight thread、taper thread and so on	Detect the instruction of skip	G31,G311
Limit position function	soft limit, hard limit	Pole coordinate	G15,G16
thread function	metric and inch format, straight thread, taper thread and so on	Metrical/Imperial programme:	G20,G21
Preread function:	Preread 10,000 short straight lines	Set coordinate, offset	G184,G185
Password protection:	Multilevel password protection	Workpiece coordinate system:	G54~G59
Input/output:	I/O 56*24	Tool radius C	G40,G41,G42
PLC programme:	All open PLC design	Accurate locating/continuous path process:	G60/G64
Acceleration and deceleration control:	Straight line、Index	Constant linear cutting:	G96/G97
Number of encoder:	any setting	Feeding mode:	G98,G99
User macro program:	Have	Backing to start point of program:	G26
Electrical gear function:	Have	Backing to the fixed point:	G25,G61,G60
Subpanel	A type with handwheel; B type with band switch; C type with both A and B, E type	Backing to the datum point:	G28
Application:	Lathe, special machine	Suspend:	G04
		Macro Program:	G65,G66,G67
		Auxiliary function:	S、M、T

Function advantages

Product features

Never Crush the machine, the system with memorial function (Abosolute feature)

Needn't install hard limit with this 3 axis control wood drilling and milling machine and back to the zero point (Abosolute
feature)

Adapt bus modbus technology, ARM + DSP + FPGA technology

USB and RS232 port, DNC function of USB (NEW)

Network remote technology and could diagnose the system online (NEW)

User's storage is 128M and could be infinite number of program (NEW)

Abosolute type of motor (17bits multi circle) controlling technology (NEW)

The most moving rapid speed is 300m/min, processing speed reaches 0.01 ~ 30m/min (NEW)

The cycle of interpolation is 2ms, controlling accuracy is 0.1um (NEW)

All closed-loop with grating ruler control and the accuracy is <2um (NEW)

Preread the short line program to satisfy with high speed engraving and cutting (NEW)

Intelligent Man-Machine dialog interface (NEW)
