SZGH 18N.m ac Brushless Servo Motor 220V High Precision Servo Motor 1.5kw Servo Motor Controller
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1991
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SZGH CE Standard Electric Motors of ac Servo Motor 400wNegotiableMOQ: 1 -
SZGH High Quality 220v 750w Three-phase 3000rpm High Power AC Servo MotorNegotiableMOQ: 1
-
The Powerful High Torque ac Electric Motor Drive Controller Servo Motors With 24V Breaker ac MotorNegotiableMOQ: 1
-
220v 750w ac Engine 3-phase 3000rpm 3.5Nm High Power AC Servo Motor and Driver Cnc Amplifier KitNegotiableMOQ: 1
-
110mm Flange AC Servo Motor and Driver 1.2kw 4Nm 2500rpm Servo Engine and Amplifier High Speed Cnc KitNegotiableMOQ: 1
powerful 2500rpm and 1.5kw servo motor
Product Description
SZGH-13150CC is 1500W AC servo motor, middle inertia , high rotation speed, with extremely high performance price ratio and use reliability .
Rated Power (W): 1500 W
Continuous Torque:6.0Nm
Peak Torque: 18Nm
Rated Rotation speed (r/min): 2500 RPM
Encoder Resolution (PPR): 2500
Continuous Torque:6.0Nm
Peak Torque: 18Nm
Rated Rotation speed (r/min): 2500 RPM
Encoder Resolution (PPR): 2500
Rated Voltage (V): 220
Rated Current (A): 6.0
Rotor Inertia (kg.m2x10-4): 12.6
Application Environment:
Work temperature: 0°C~ 40°C
Relative Humidity: < 90% RH
Altitude : < 1000 m
Non corrosive ,non flammable gas and dust and oil-mist
Matched Driver: SZGH-302 SERVO DRIVER
Feature

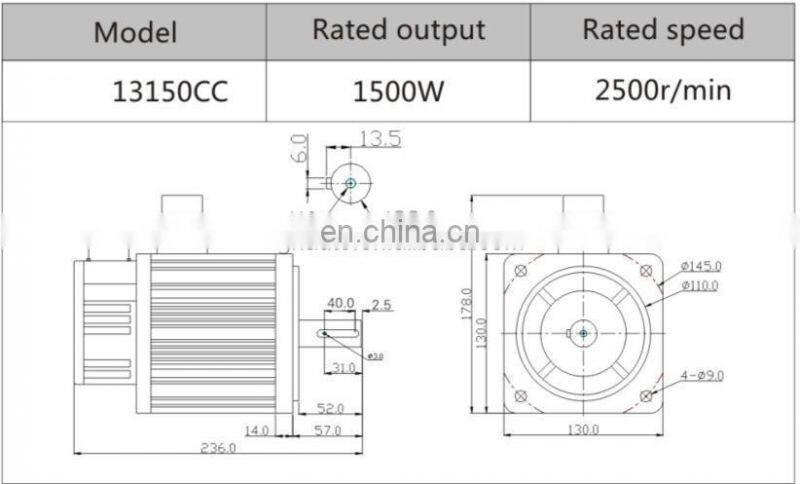

Mechanical Dimensions (mm)
Packaging & Shipping
Our Services
Company Information
Our Partners
Certifications
Contact Us
FAQ
| 1.How about your screen displayer? |
| SZGH CNC controller is bigger display interface. Compare with other supplier’ controller normally is 7.0 inch display , our controller is 8.0 inch real color LCD displayer . |
| 2.Does your CNC controller have PLC function? |
| Yes,it does.We have two kinds different configuration,one is 24*24 I/Os,the other is 32*32 I/Os.We support specified PLC software for free.Other supplier’ CNC controller does not have the PLC programming function, but our CNC1000M series has the function, also in order to convenient to our clients operation, our CNC can work programming by the computer directly, after you finished , you can copy to controller , so that you do not need stay at front of machinery , very tire to work. |
| 3.Do you support customized manufacturing? |
| Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo. |
| 4.Does your cnc control system support ATC function? |
| Yes,our cnc control system support ATC function , our control system can be with many kinds of tool magazine according to customer's askes. |
| 5.How about after-sales service? |
| We have a professional technology team that support best ,fast and professional technological support for our cusomter. |
