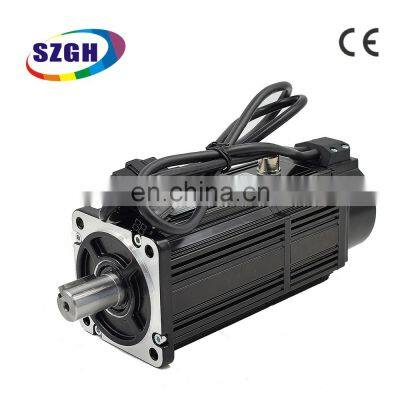

SZGH Economic 3kW 380V AC Servo Spindle Motor
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1991
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SZGH Multifunctional 1.5kw Servo Motor AC Servo Motor And Servo DriveNegotiableMOQ: 1 -
Low Price Inertia Servo Motor 600w dc MotorNegotiableMOQ: 1
-
5HP 3 Phase 380V,2500RPM 3.8kw CNC Servo Motor With AC Drive EncoderNegotiableMOQ: 1
-
Powerful 3000W 380V AC Servo Motor With EncoderNegotiableMOQ: 1
-
High Quality Electric Motor Brushless ac Servo MotorNegotiableMOQ: 1
Economic 3kW 380V AC Servo Spindle Motor
Product Description

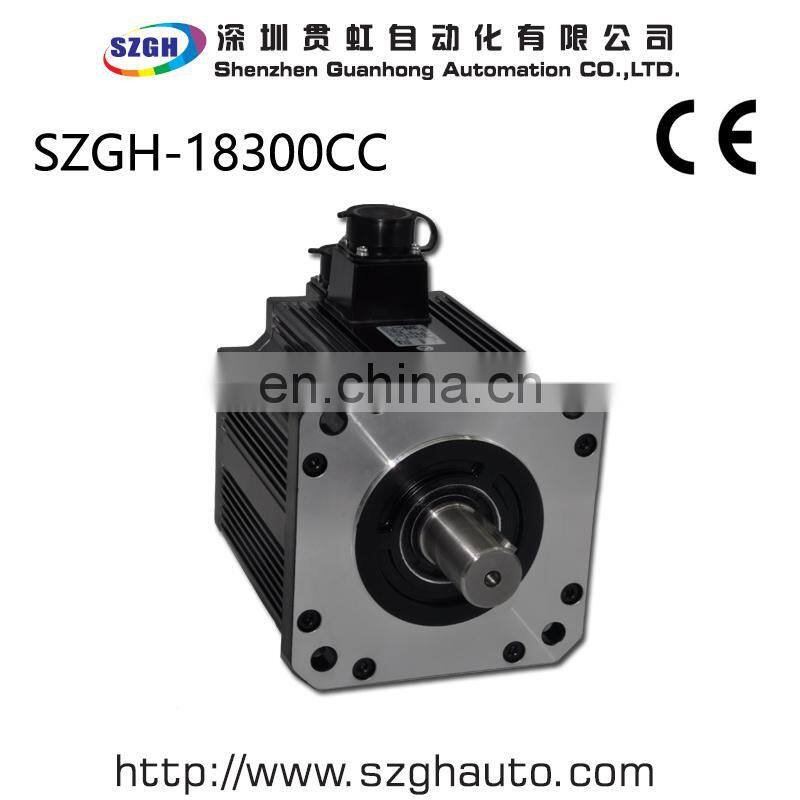

| Motor Model | SZGH-18300CC |
| Rated Power(KW) | 3 |
| Rated Voltage (V) | 220/380 |
| Rated Current (A) | 12/7.5 |
| Rated Speed (RPM) | 1500 |
| Rated Torque (NM) | 19 |
| Peak Torque (NM) | 47 |
| Voltage Counstant(v/1000r/min) | 97/170 |
| Torque Coefficient(NM/A) | 2.25/3.6 |
| Rotor Inertia(Kg.m2) | 6.1*10 |
| Line-Line Resistance(Ω) | 0.48/1.37 |
| Line-Line Inductance(mH) | 3.26/8.6 |
| Machanical Time-Constant(Ms) | 6.79/6.27 |
| Encoder Resolution (PPR) | 2500 |
| Insulation Class | Class F |
| Safet Class | IP65 |
| The Operating of Evironmenal Condition | Temperature:-20℃- +45℃ |
| Weight(Kg) | 20.5 |
| Package | with air bag +polyfoam +carton+wooden |

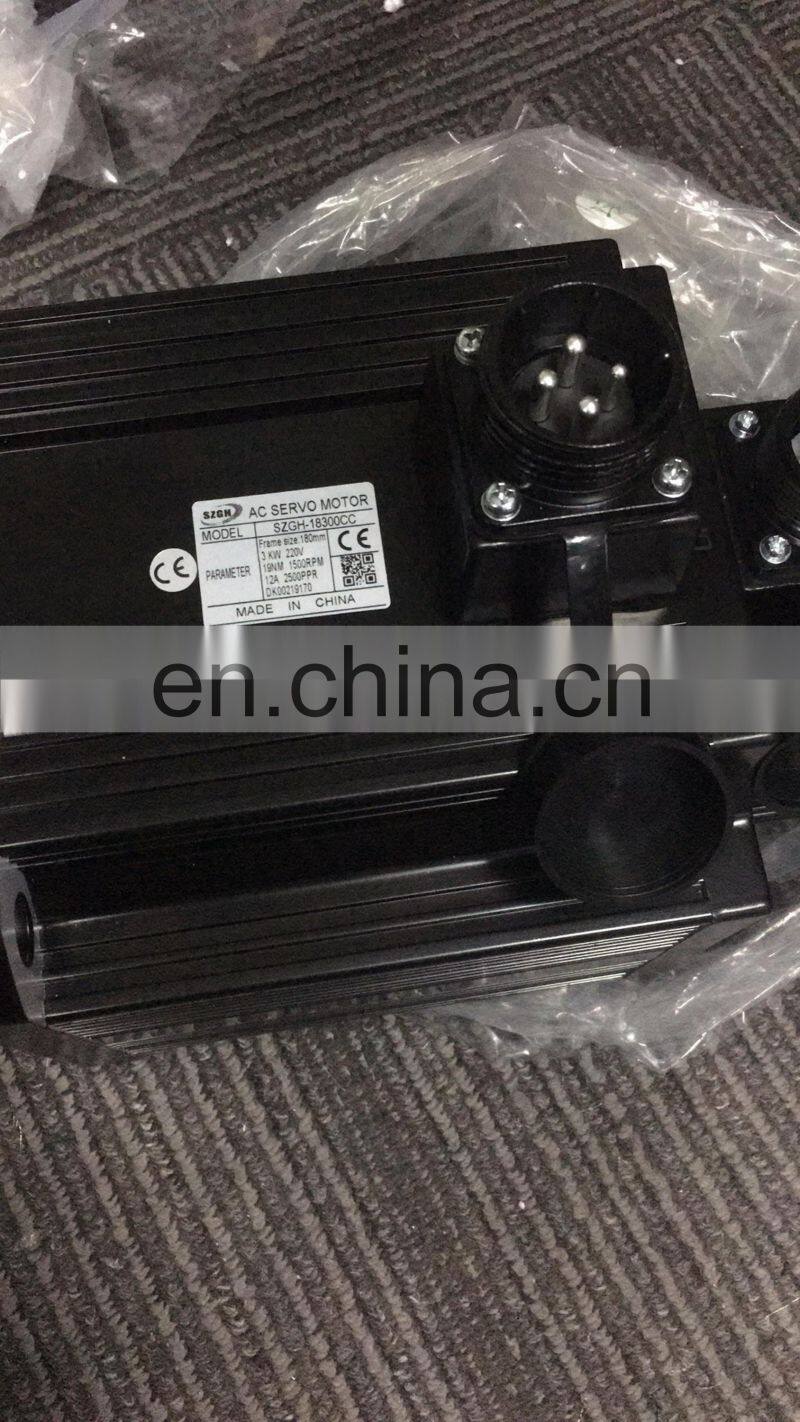

3.0KW servo motor:

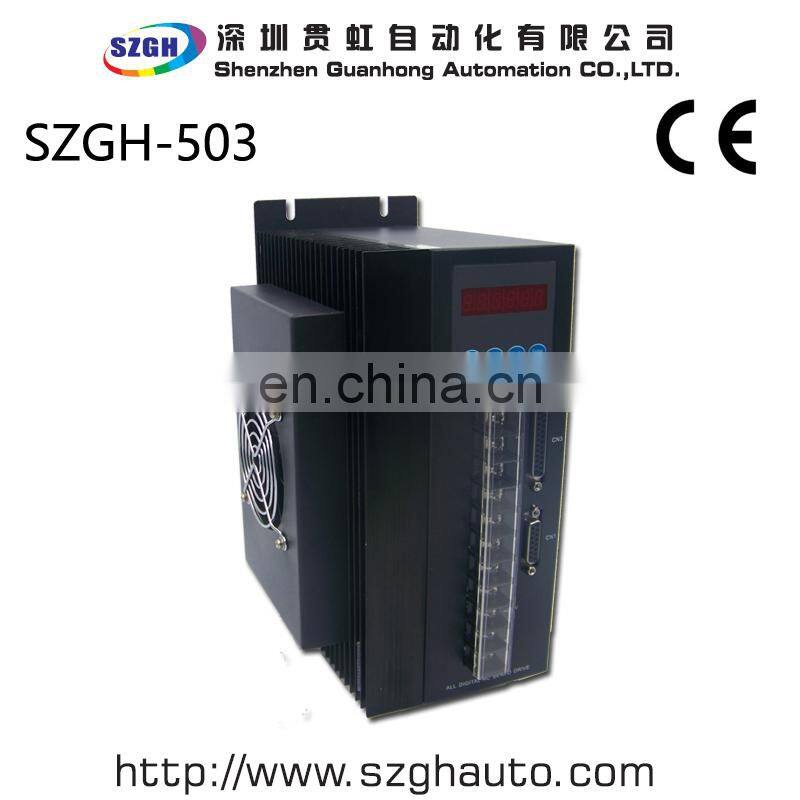

Matching driver:
Packaging & Shipping
1.Industrial packing: plastic bag +foam boxes+ carton +wooden pallets
2.Commercial packing: plastic bag+ foam boxes + carton
3.As the clients’ requirement
Delivery Detail: Normally ready goods and stock within 2-5days
