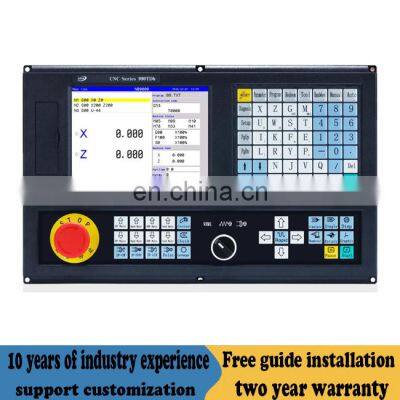

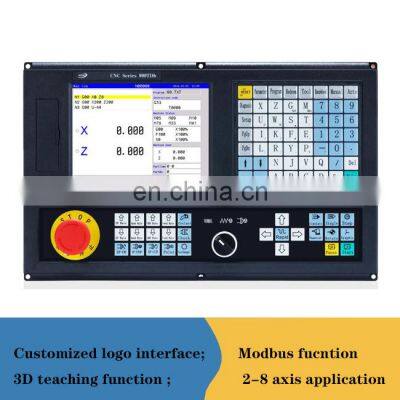

SZGH-CNC990TDb-2 two axis(X,Z) lathe CNC system is universal&economic type and
800*640 8.4 inches real color LCD displayer, base on ARM microprocessor and PDF, support
automatic tool change function. Matching with Servo system and Stepper system, total product
solution can be provide by Shenzhen Guanhong Automation CO.,LTD (short name:SZGH ).
Features:
1)Adopt ARM and DSP, FPGA and hardware interpolation technology .

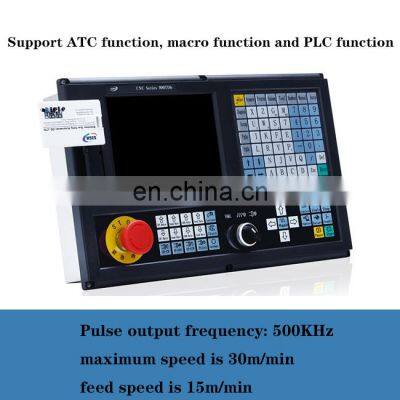

2)The max speed is 30 m/min, feeding speed is 0.001~15m/min
3)32Mb user store room.
4) 8.4 inches real color LCD displayer (resolution: 800*640).
5)Touch screen main and sub panel.
6)High anti-jamming switch power.
7)USB movable U disc copy interface.
8)RS232 interface.
9)Spindle servo speed control/spindle frequency convenient speed control.
10)max screw processing thread pitch is 1000MM
Technical specification:
•X,Z two axis lathe
•liner, circular, spiral line interpolation instruction.
•min input unit:0.001mm.
•program size range:± 99999.999.
•Feeding speed:0.001-10m/min
•Max speed: is 20 m/min
• length Compensation
•tool radius automatic compensation
•RS232 and U flash connection port
•Spindle servo speed control/spindle frequency convenient speed control.
•max screw processing thread pitch is 1000MM

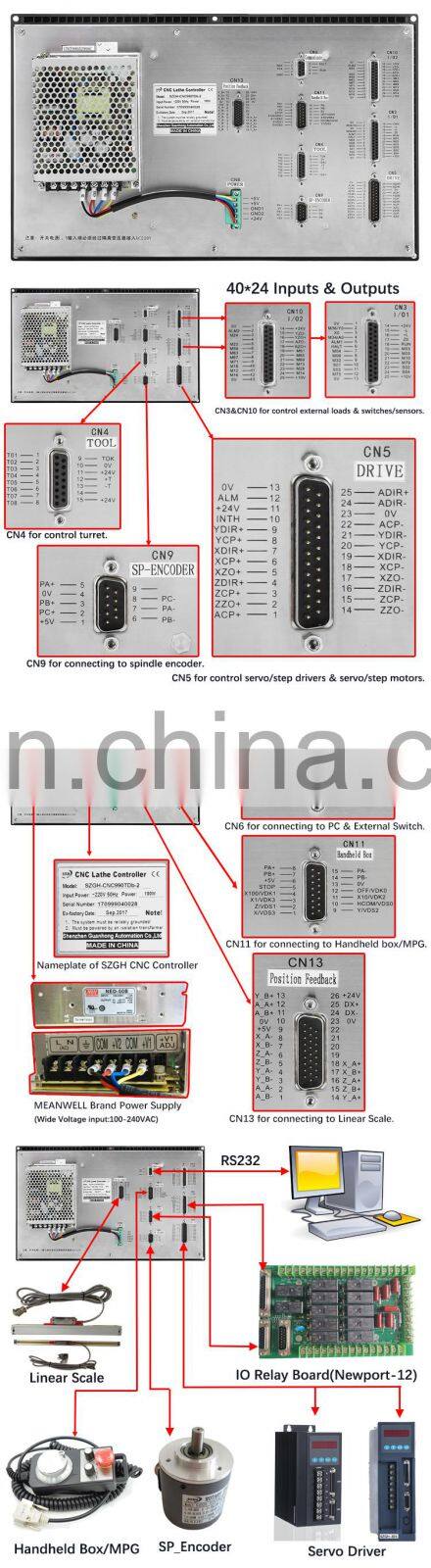

•I/O 24X24 input and output
System operation condition:
1) Power supplying
AC 220V(+10%/-15%), Frequency 50Hz±2%. power:≤ 200W.
Note:it must use isolation transform to supply power,first input:380V
2) Climate condition
operation condition:temperature 0~45°C,relative moisture 40-80%.
storage & transportation condition:temperature -40~55°C,relative moisture <93%(40°C).
atmosphere pressure:86-106kpa.
3) operation environment :
No excessive flour dust, no acid, no alkali gas and explosive gas, no strong electromagnetic interference.

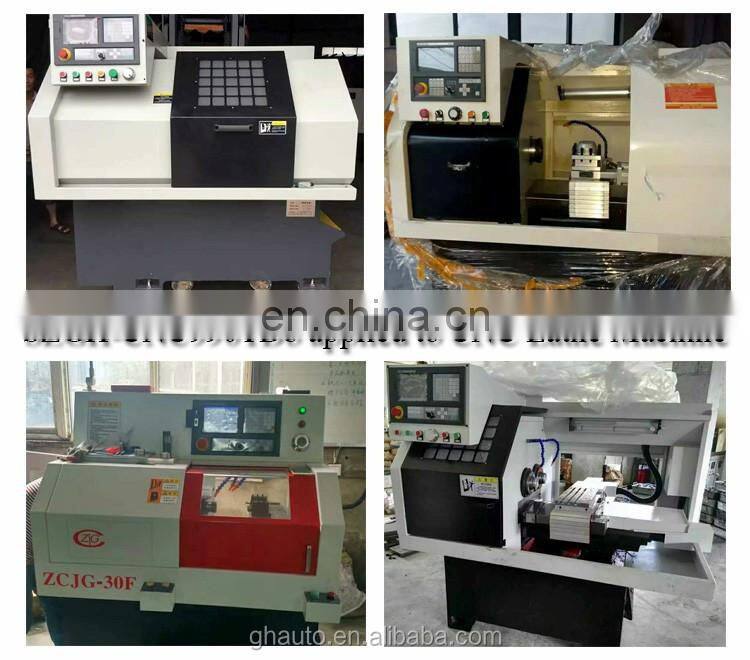

Application: Mini-type special lathe machinery, instrument lathe,Grinder machine.

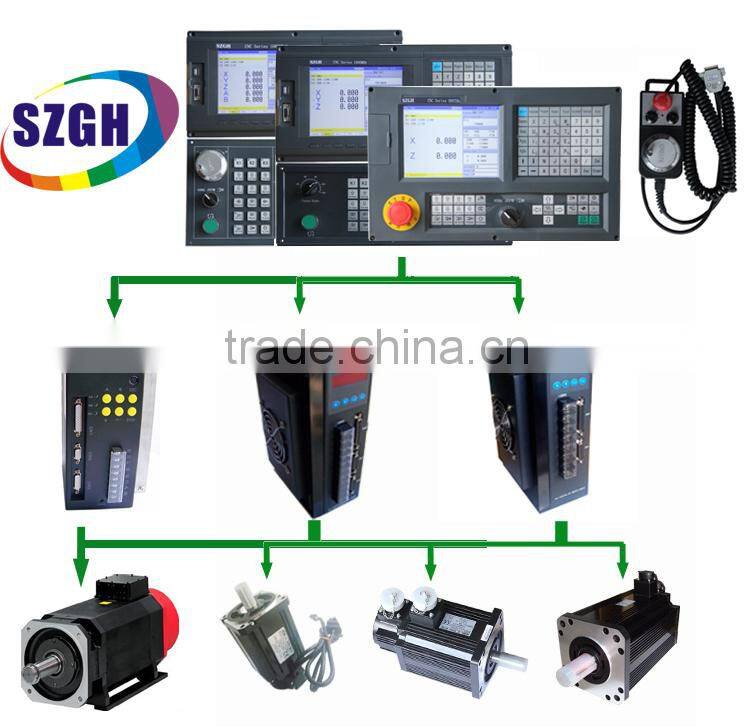

♦We Can Provide The Total CNC Control System Solution!!
1)Certified actual products - We have a zero-tolerance policy for asset recovery vendors.
2)Lowest package prices -Always offer lower price than other companies.
3) Professional technical engineer team- possible fastest response and support to client’ application demand.
4)Quality guarantee – Free, one-years warranty and life-long maintenance. Any quality problem, SZGH promise to refund.
5) Fast, professional and reliable International delivery – flexible and low cost delivery solution for clients.
6) Free payment mode by T/T, L/C, Western union ,Escrow and Paypal can be available.
1.How about your screen displayer?
SZGH CNC controller is bigger display interface. Compare with other supplier’ controller normally is 7.0 inch display , our controller is 8.0 inch real color LCD displayer .
2.Does your CNC controller have PLC function?
Yes,it does.We have two kinds different configuration,one is 24*24 I/Os,the other is 32*32 I/Os.We support specified PLC software for free.Other supplier’ CNC controller does not have the PLC programming function, but our CNC1000M series has the function, also in order to convenient to our clients operation, our CNC can work programming by the computer directly, after you finished , you can copy to controller , so that you do not need stay at front of machinery , very tire to work.
3.Do you support customized manufacturing?
Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.

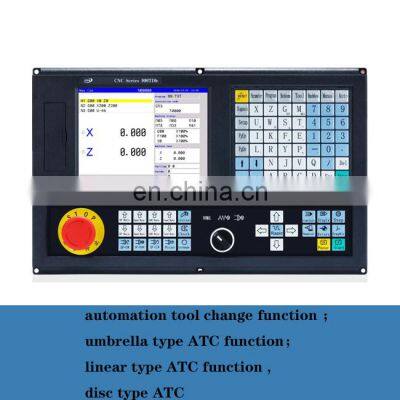

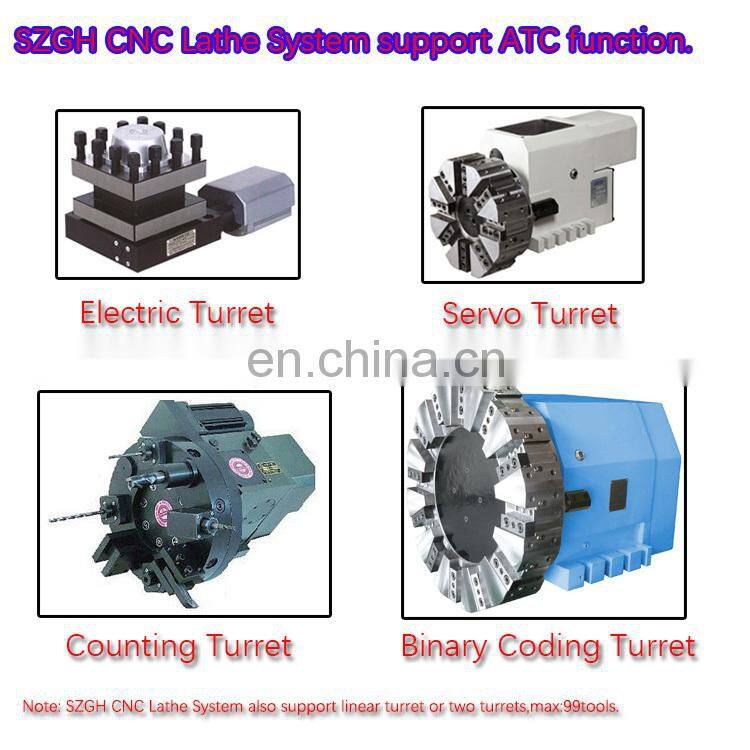

4.Does your cnc control system support ATC function?
Yes,our cnc control system support ATC function , our control system can be with many kinds of tool magazine according to customer's askes.
5.How about after-sales service?
We have a professional technology team that support best ,fast and professional technological support for our cusomter.
