Professional factory design and produce wood cabinet cutting cnc router machine

Name: Professional factory design and produce wood cabinet cutting cnc router machine
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

3 axia cnc milling controller with DSP+USB function

SZGH-CNC990TDb-3 axis lathe CNC controller is 8 inch display(800x600) and 2-channel analog, with cutter offset,I/O 24X24, PLC and macro function. Matching with Servo motor and driver , total product solution can be provide by Shenzhen Guanhong Automation CO.,LTD (short name:SZGH ).

Feature :

2) Support PLC and macro function, and automatic tool exchange function .

3) 32Mb user store room, 2-channel analog

4) The max speed is 30 m/min, feeding speed is 15m/min

5) Touch screen main and sub panel.

6) High anti-jamming switch power.

7) USB movable U disc copy interface.

8) RS232 interface.

9) Spindle servo speed control/spindle frequency convenient speed control.

10) Max screw processing thread pitch is 1000MM

11) 32 bits high performance, low power consumption industrial grade ARM microprocessor.

12) I/O : 24X24

13) cutter offset : C

14) English menu, program and interface, full screen edition

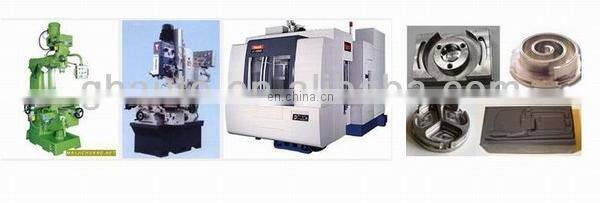

Application:

CNC lathe machinery; lathe machine center;TDC applied to engraving CNC machine.

Product Picture:

Technical Specifications

System constructions:

32 bits high performance, low power consumption industrial grade ARM microprocessor.

64MB memory.

32Mb user store room.

640x480 8 inch real colour LCD displayer.

Touch screen main and sub panel.

High anti-jamming switch power.

USB movable U disc copy interface.

RS232 interface.

Spindle servo speed control/spindle frequency convertion speed control.

Manual pulse generator.

System technical parameter:

controllable axes:X,Z,C/Y,A,B five axes.

linkage axes:Arc 2-3 axes, liner 2-5 axes.

pulse equivalent:X,Z,C/Y,A,B axes:0.001mm.

max speed:X,Z,C/Y,A,B:60000mm/min.

cutting speed:1-10000mm/min.

min input unit:0.001mm.

program size range:± 99999.999.

99 tools management.

controllable liner vertical type or revolving disc type tool changer.

program code:ISO-840 international standard.

program coordinate system definition:ISO-841.

chassis protection complies with regulation of IP43.

System function:

1.Auto-diagnosis function

All around diagnosis of CPU, storer, LCD, I/O interface, parameter status, coordinates, machining program etc. shall execute when the system starts or resets. In operation, it makes real time diagnosis of power, spindle, limit and all I/O interface.

2. Compensation function

automatic backlash compensation.

tool radius automatic compensation.

tool radius automatic offset and sharp angle transition.

leading screw pitch error automatic compensation.

3 .Abundant instruction system

scaling up/down instruction.

mirror machining instruction.

mutiple tool offset instruction.

program cycle, jump, call and different program ending.

multiple positioning instruction:starting point,setting fixed point,etc.

linera, circular,spiral line interpolation instruction.

program management instructions: program cycle, call, transfer and different program ending method, etc.

6 workpeices coordinates system .

Packaging & Shipping

1.Industrial packing: plastic bag +foam boxes+ carton +wooden pallets

2.Commercial packing: plastic bag+ foam boxes + carton

3.As the clients’ requirement

Delivery Detail: Normally ready goods and stock within 2-5days
