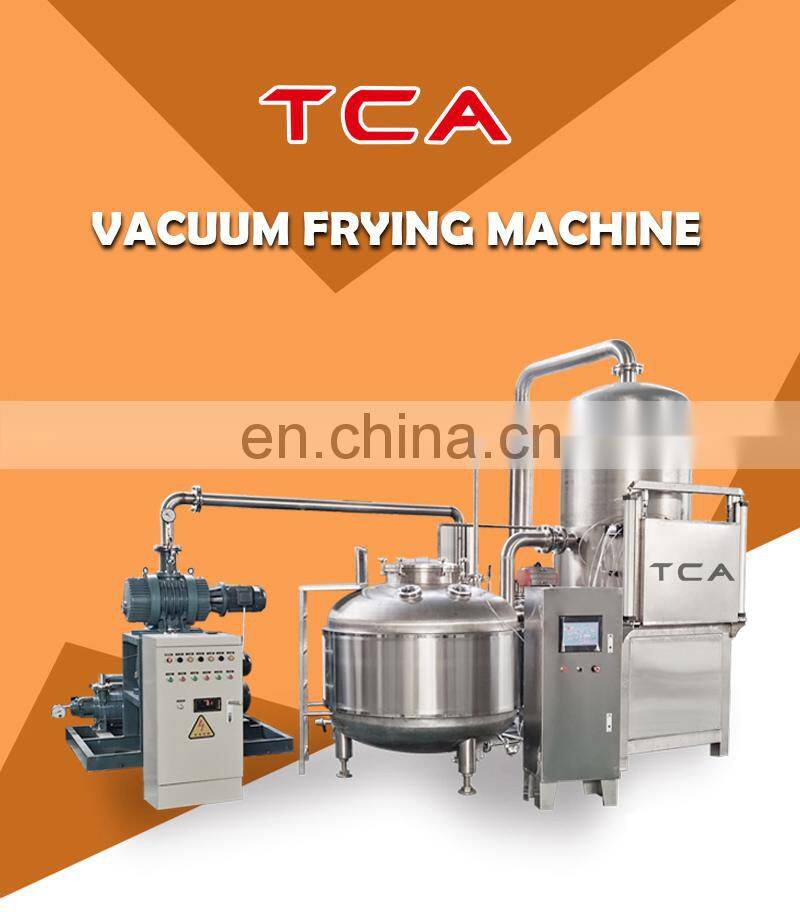

50-300KG/H Industrial Continuous Vacuum Fryer Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2013
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
industrial continuous vacuum fryer machine

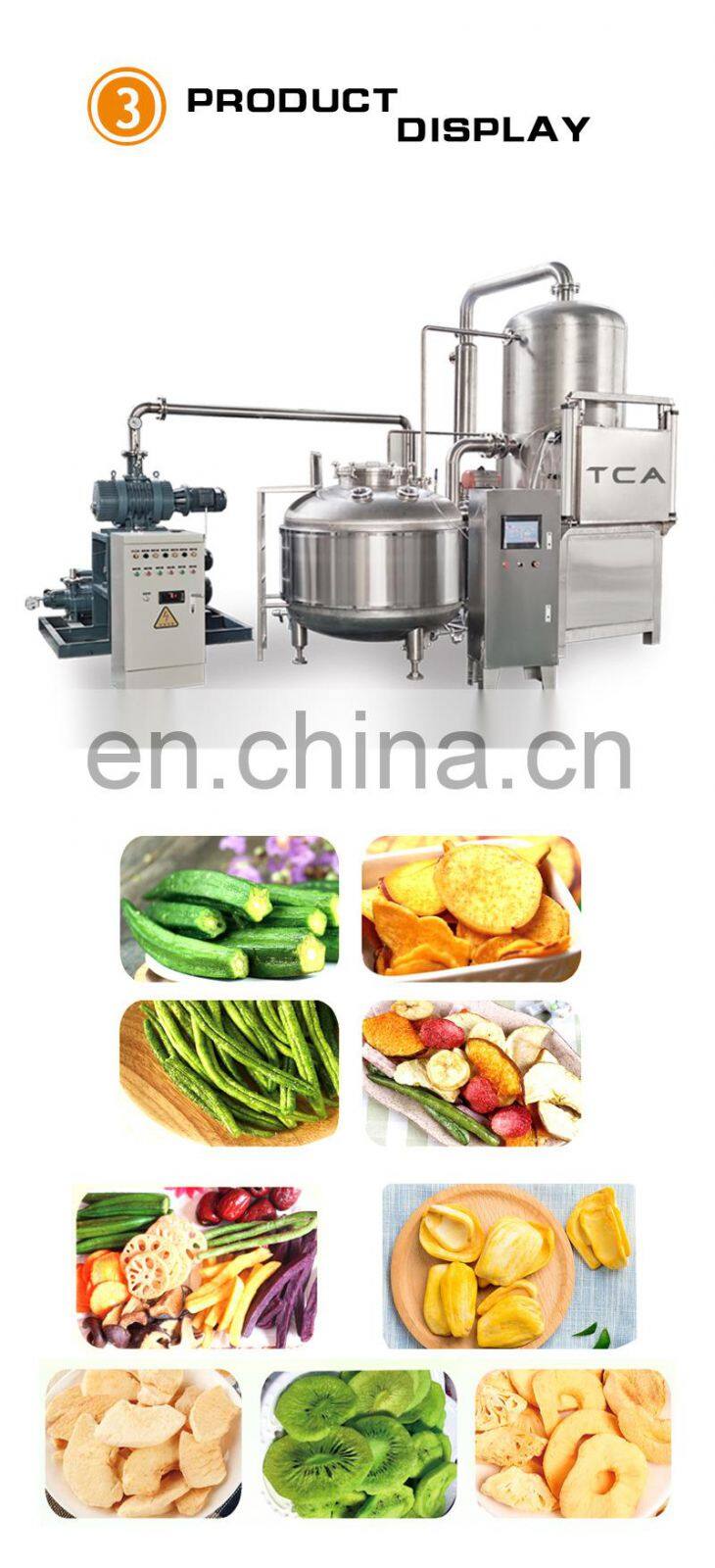

Vacuum frying machine
Vacuum frving refers to frving and dehvdrating food in a negative pressure environment. The temperature is generally between 80 and 100 ℃. which can effectively reduce the damage of high temperature to food nutrients. Vacuum frying technology is known as the color revolution of this century. The finished product has lower oil content and is healthicr.
Combared with ordinary frving,vacuum frving has other obvious advantages. Since the internal pressure of the cquipment is lower than the atmospheric pressure, food processing under this relativelv hvpoxic condition can reduce or even avoid oxidation such as fatty acid failure and enzymatic browning, and has the effect of preserving food color and flavor. Vacuum frving has a very wide range of applications in the food industry, and can process many products such as vegetables and fruits, dried fruits, and livestock and poultry meat.
Model | Size | Input capacity | Oil needed | Frying basket size |
XD-800 | 4800*3200*3200mm | 50kg per batch | 750 L | φ600*160mm |
XD-1000 | 4800*3500*3200mm | 100kg per batch | 1100 L | φ800*520mm |
XD-1200 | 5000*3500*3300mm | 200kg per batch | 1400 L | φ1000*580mm |
XD-1400 | 5000*3500*3500mm | 300kg per batch | 1800 L | φ1200*580mm |

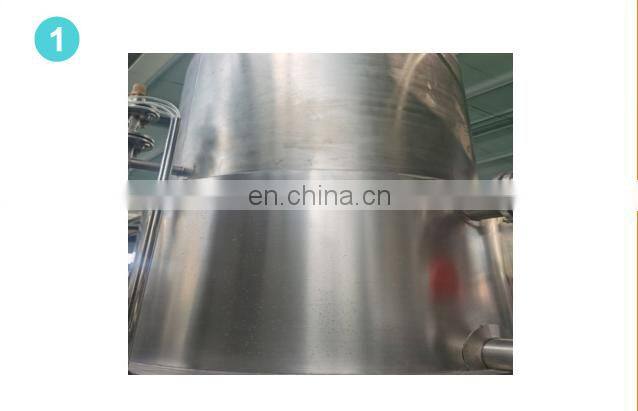

Oil tank
1. The pot body is made of 6mm stainless steel plate and the material is 304
2. The bpttom plate of the pot body is 16mm stainless stee late. made of 304.
2. The bpttom plate of the pot body is 16mm stainless stee late. made of 304.
3. The quter shell of the pot is made of 1.5mm stainless tesl plate and the material is 304,
4. After the pot body is weldad, perform a water leakage ast to ensure that it does not leak.
4. After the pot body is weldad, perform a water leakage ast to ensure that it does not leak.
5. The main material of the oot body is made of stainless steel and other materials conforminn to the food industry.
6. A 50mm thick aluminum silicate plate is installed beween the pot body and the shell.
6. A 50mm thick aluminum silicate plate is installed beween the pot body and the shell.

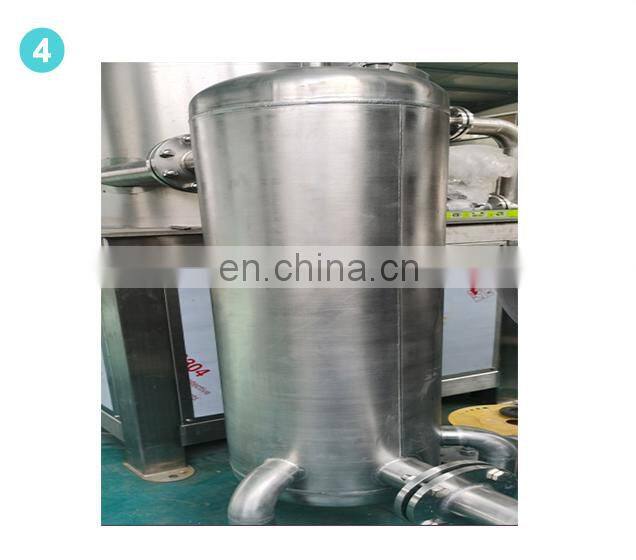

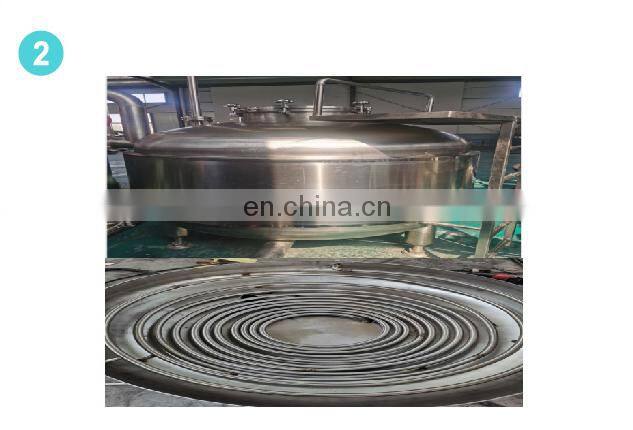

Vacuum frying machine oil tank
1. The body of the vacuum oil tank is made of 6mm stainless steel plate and the material is 304.
2. The shell of the vacuum oil tank is made of 1.5mm stainless steel plate and the material is 304
3. The heating coil is made of 25"3mm seamless 304 stainless steel pipe with a working pressure of 0.5Mpa and a test pressure of 0.65Mpa.
4. A 50mm thick aluminum silicate plate is installed betweer the pot body and the shell
5. The vacuum oil tank uses quick-opening 304 stainless steel manhole, which is convenient for cleaning the long-term grease in the oil tank.
2. The shell of the vacuum oil tank is made of 1.5mm stainless steel plate and the material is 304
3. The heating coil is made of 25"3mm seamless 304 stainless steel pipe with a working pressure of 0.5Mpa and a test pressure of 0.65Mpa.
4. A 50mm thick aluminum silicate plate is installed betweer the pot body and the shell
5. The vacuum oil tank uses quick-opening 304 stainless steel manhole, which is convenient for cleaning the long-term grease in the oil tank.

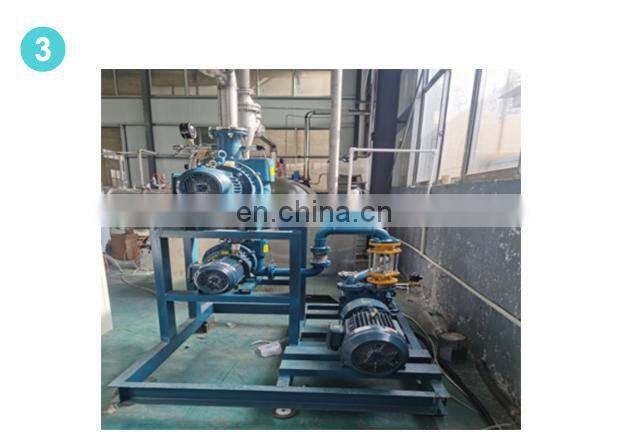

Vacuum unit
Our company uses Roots water ring vacuum unit which is connected in series with Roots pump as the main pump and water ring pump as the front pump. Roots water ring vacuum unit uses water ring pump as the backing pump, which is more advantageous than other vacuum pumps. It overcomes the ultimate pressure difference when a single water ring pump is used (the ultimate pressure of the unit is much higher than that of the water ring pump)
Heat exchanger
1. The head of the heat exchanger is made of 5mm stainless steel plate and the material is 304.
2. Hundreds of 12*1.2mm stainless steel seamless tubes are used in the heat exchanger, the material is 304.
3. The heat exchanger plays the role of auxiliary heating in the frying process
2. Hundreds of 12*1.2mm stainless steel seamless tubes are used in the heat exchanger, the material is 304.
3. The heat exchanger plays the role of auxiliary heating in the frying process

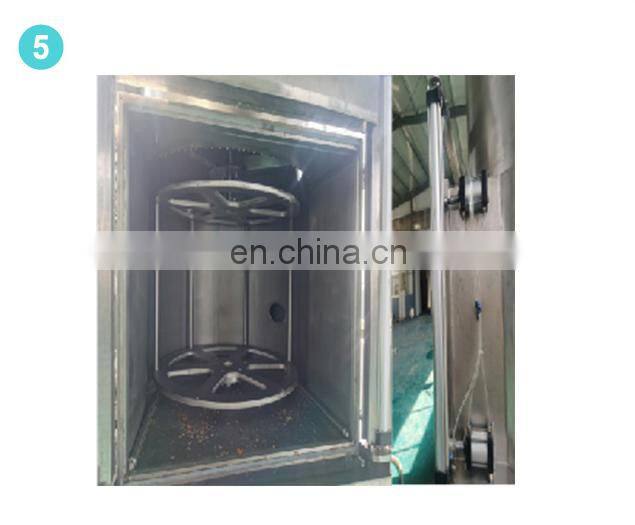

Opening part of vacuum frying machine chamber
1. Automatic door opening device. Composed of six cylinders, the door is pressed outside, and the door is lifted and opened.
2. When the equipment enters the initial frying stage, the door will be closed automatically, and the next step of frying cannot be entered without closing the door. The door will open automatically after the oil dump.
2. When the equipment enters the initial frying stage, the door will be closed automatically, and the next step of frying cannot be entered without closing the door. The door will open automatically after the oil dump.

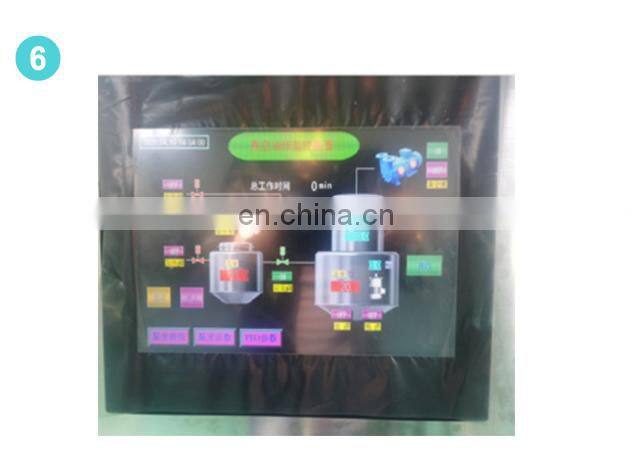

Control system
The control cabinet is made of stainless steel, made of 304.The main control circuit adopts Mitsubishi PLC, Mitsubishi touch screen, Mitsubishi inverter, Mitsubishi temperature control module, and Mitsubishi analog output module Schneider circuit breaker, Schneider circuit breaker, Jiegu terminal block, Schneider AC contactor, Weidm ù ller relay, Siemens switch, Siemens warning light.

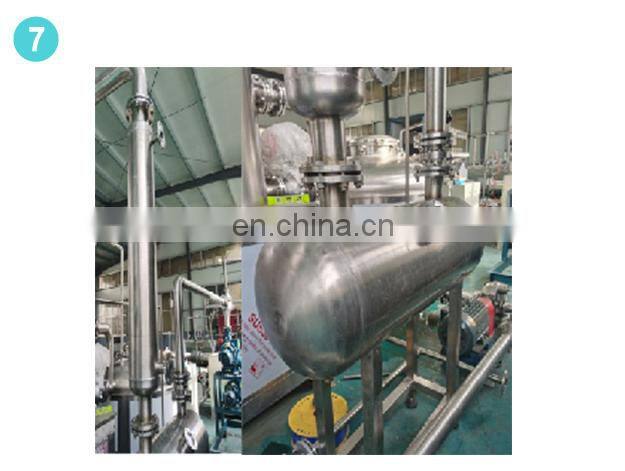

Condenser buffer tank
The water-cooled condenser uses water as the cooling medium, which is a kind of heat exchanger, which can convert gas or vapor into liquid, and the liquid enters the buffer tank.The buffer tank should regularly drain the condensate in the tank to avoid being pumped into the vacuum pump.
Fruit and vegetables washing machine
IQF Quick freezing machine
Cutting machine
Small belt continuous frying machine
Continuous frying machine
Vegetables cutter,slicer
Shandong Xindaxin Food Industrial Equipment CO., LTD is a professional global supplier of food industry equipment. Company is focused on R&D manufacturing and sales of food industry equipment including processing line for snacks frozen French fries, potato chips, meat food, cake baking vegetable process ing ,corn processing and so on. We provide a compete production line to our customers, corn processing. Company's products have been certified by CB and IS09000(1)-2000 international quality management system certification.and in accordance with the OS standard food enterprise. After many years of efforts and innovation. "TCA"brand food equipment has been exported to Russia, Canada. Australia, USA, Britain, France and other 80 countries, enjoy high reputation in the same industry.
