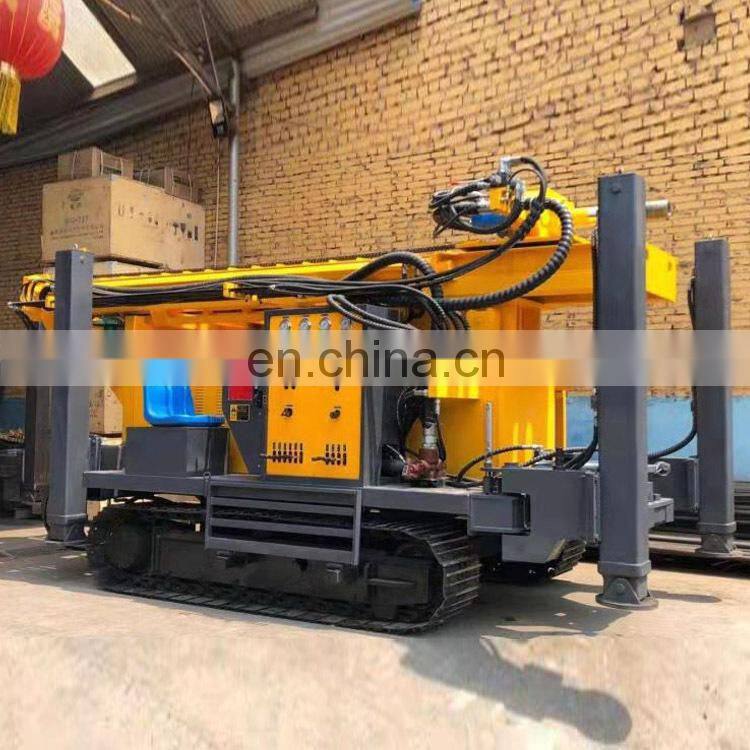

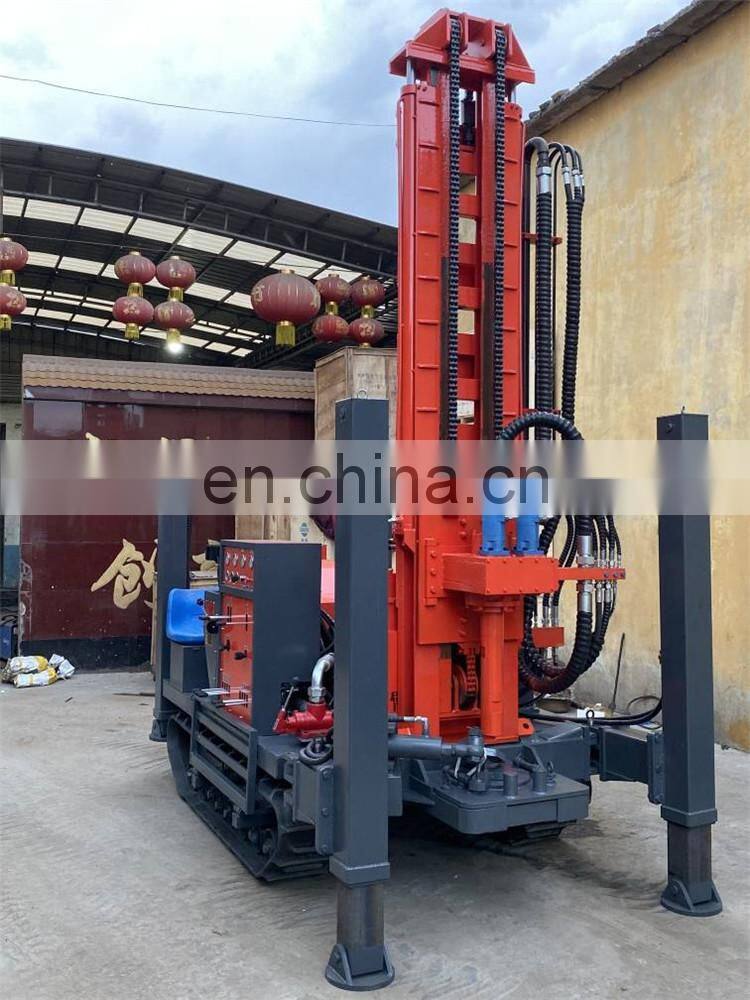

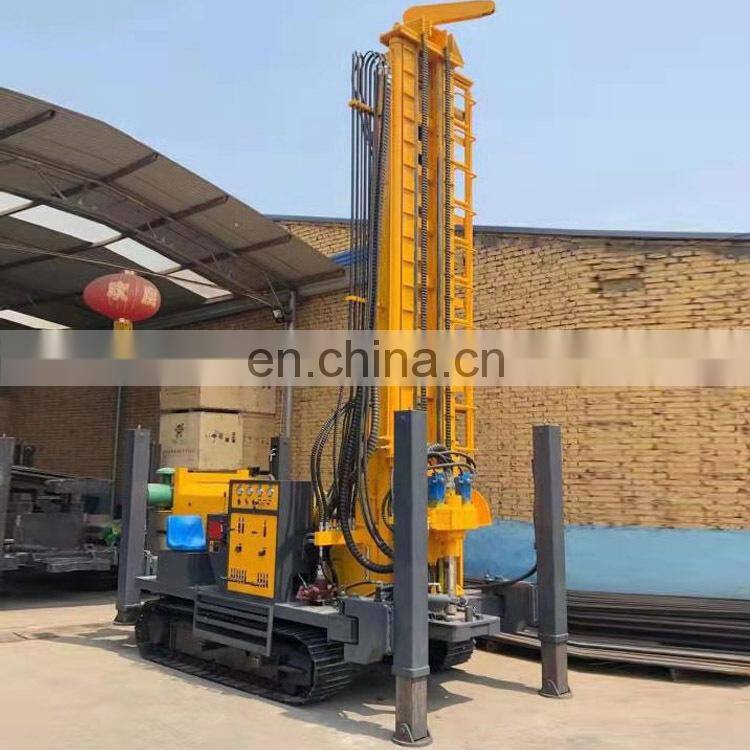

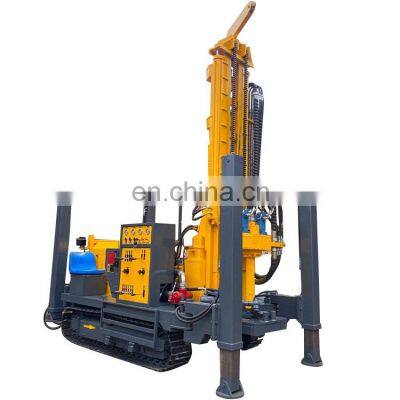

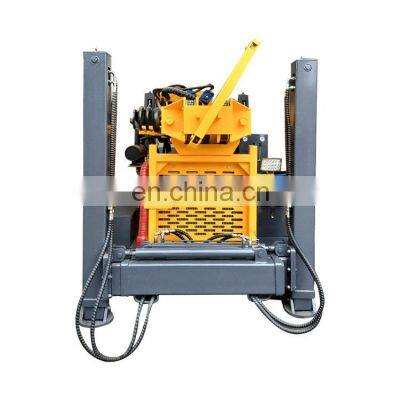

2022 new design 200m pneumatic water well drilling rig for sale
The drilling rig is a highly efficient and versatile drilling rig that is mainly used to drill wells, agricultural irrigation wells, ground heat pump wells and other wells. It is especially suitable for water intake projects in mountainous and rock formations.. The new hydraulic rig technology, supporting high hydraulic torque and a large rotating hydraulic propulsion diameter. Centralized control of the hydraulic console for easy operation. This series of platforms uses excavator crawler chassis for off-road performance. The independent module design allows the platform to be easily mounted on the truck for greater maneuverability.
|
1 |
Drilling depth (m) |
200 |
|
2 |
Drilling speed |
10~35m/h |
|
3 |
Engine power(kw) |
77 |
|
4 |
Rotary torque (N*m) |
4200~5600 |
|
5 |
Rotary speed (rpm) |
48~70 |
|
6 |
Drill bit diameter (mm) |
Ø90~Ø315 |
|
7 |
Lifting force (Ton) |
12 |
|
8 |
Lift speed(m/min) |
2.5 |
|
9 |
Max lift speed(m/min) |
18 |
|
10 |
Propulsion force (kN) |
4 |
|
11 |
Walking speed (km/h) |
0~2.5 |
|
12 |
Hydraulic outrigger stroke(m) |
1.5 |
|
13 |
Climbing ability (°) |
20 |
|
14 |
Working air pressure (MPa) |
1.05~2.46 |
|
15 |
Total air consumption (m3/min) |
16~30 |
|
16 |
Drill pipe diameter (mm) |
Ø76 |
|
17 |
Drill pipe length (mm) |
3000 |
|
18 |
Whole weight (kg) |
4700 |
|
19 |
Machine size (mm) |
3600*1700*2150 |
|
20 |
Working conditions |
Soil layer and bedrock layer |
|
21 |
Drilling method |
Top drive hydraulic rotation and propulsion, down-the-hole impactor or mud drilling |
If you want to purchase,you can contact as below information
