Lawn mower with mini hay baler

Lawn mower with mini hay baler  whatsapp/wechat/mobile: 0086 18939583282 Skype: sale09-orange   QQ: 2936190983

I. Application of lawn mower with mini hay baler:

This lawn mower with mini hay baler is widely used in collecting and bundling dry and green grass, straw,

wheat stalk, corn stalk. It is convenient for transportation, reserve and deep processing, and it is match with

envelop machine to achieve the enveloping of ensile.

II. working theory of lawm mower with mini hay baler:

This lawm mower with mini hay baler is suitable for the tractor with more than 18-45 horse power. This machine is composed of the picking system, rolling pressing system, threading system and bale locating system which bales the soft culm and grasses(rice straw, wheat straw, grass etc) fully automatic. The finished density of the bale is about 90kg/m³.

III. Procedure of lawn mower with mini hay baler:

The Power conveyor driven shaft releases the power to bundling machine's power-input shaft through universal drive shaft, chain sprocket, and rotary platen system and picking system. Hydraulic power driving joint controls the cylinder piston to enable the bale putting. The baling machine is already adjusted into the suitable height. When the machine is going along with the tractor, the hay is picked into rotary

platen chamber and rotating bigger and bigger, then get into very tight round bale. When the density of the bale is OK, the alarming system will start to sound, driver should stop forwarding, push the threading clutch.When find the speed of threading is faster, looses clutch, keeps the power conveyor driven shaft working to start thread. Driver should pull the hydraulic controlling stick to change the direction of the hydraulic valve,and then the cylinder will work and throw the bale out. After throwing the bale out, correct the hydraulic valve, open rear rack to forwarding again for the second cycle.

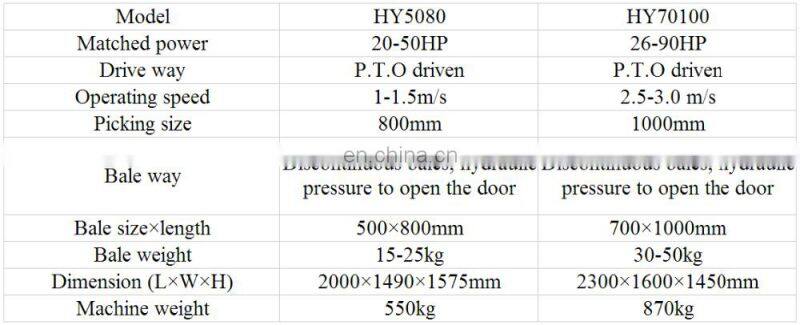

IV. Parameters of lawn mower with mini hay baler:

Name: lawn mower with mini hay baler

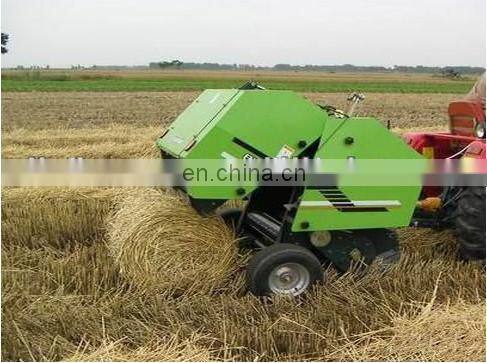

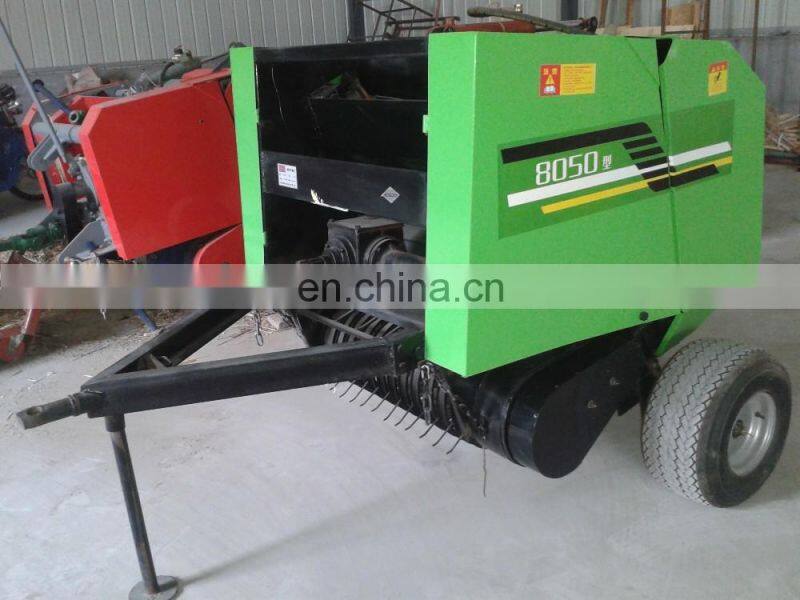

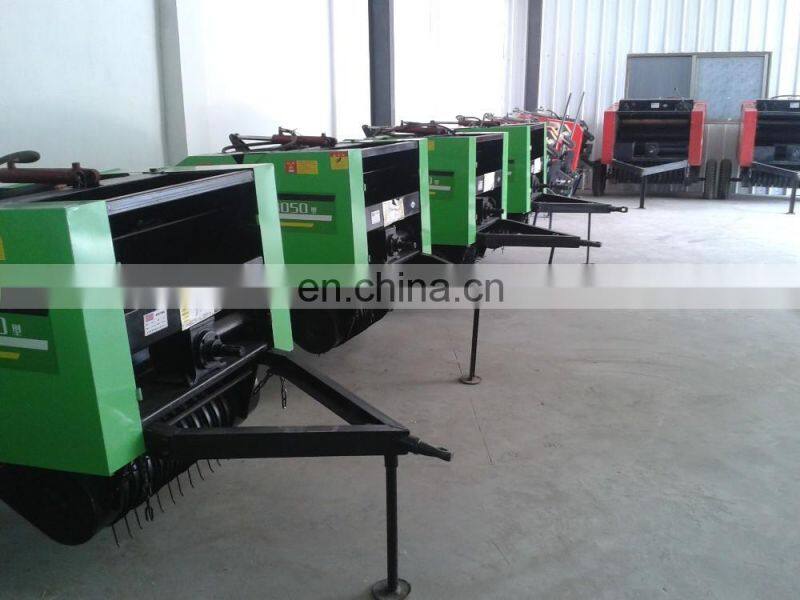

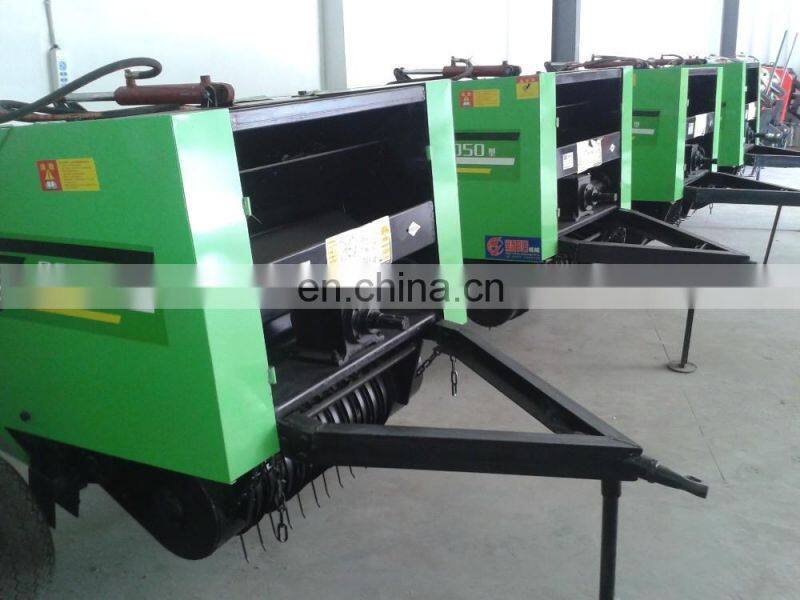

FAQIV. Pictures of Lawn mower with mini hay baler:
