 Full Auto High Speed Wet Tissue Folding Wet Wipes Making Machine Baby Wet Wipes Making Machine Wet Tissue Manufacturing Machine

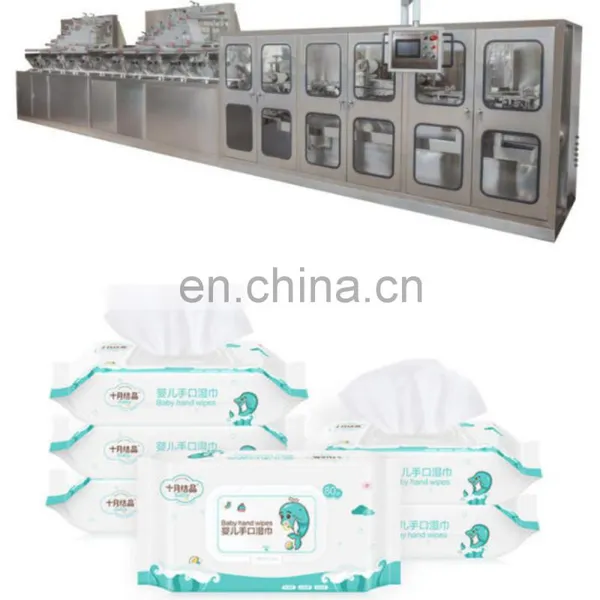

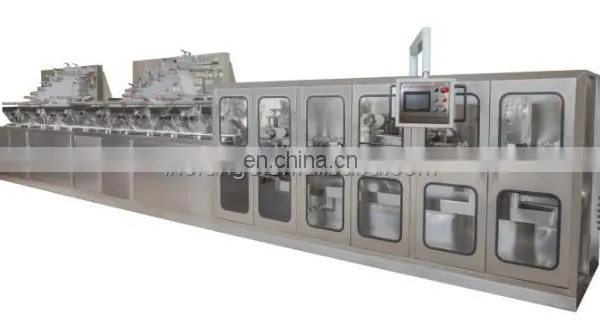

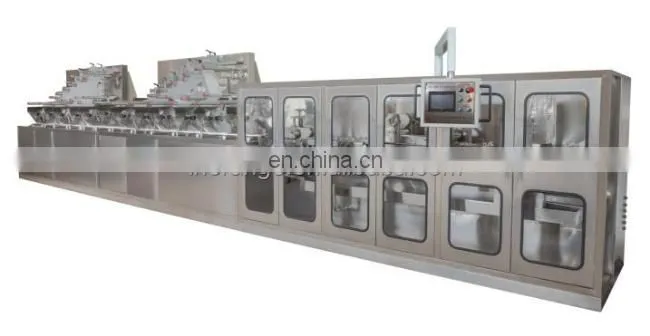

High SPEED WET WIPES FOLDING MACHINE

 Full Auto High Speed Wet Tissue Folding Wet Wipes Making Machine Baby Wet Wipes Making Machine Wet Tissue Manufacturing Machine

Production flow: unrolling - slitting fabric into lanes - folding - wetting - cutting - pile&counting - delivering



Main technical parameter(suitable to wet tissue for large size packing)

Product type: wet wipes(non cross folding)

Product speed: 250-380 cuts/min (3000-4500 pcs/min )

Suitable raw material: air laid paper, spunlace/hot-rolling nonwoven fabric

Weight of raw material : 40-80g/m

Folding way : “Z” shape (pop up and non-pop up)

Cutting unite:.  a.double paper shelves

 B.10 lanes or 12 lanes,2 rolls

 c. raw material roll width :900~1000mm

Length of wet tissue:140-220mm (setting via touchscreen)

Size of raw material: (1000-1250)×Ø1000 (mm,W×Dia)

Wet tissue unfolded size: (140-220)×(150-250) (mm,L×W)

Wet tissue folded size: (140-220)×(90-110) (mm,L×W)

Material supply system: Servo motor

Cutting system: Converter motor

Piling system: Servo Motor

Power supply: 380V 50HZ

Power: 10KW

Size of machine: 10200×3300×2000(mm,L×W×H)

Weight of machine:5000 kg

Water Tank:400L   2pcs

Optional making :HY-360 WET WIPES PACKING MACHINE

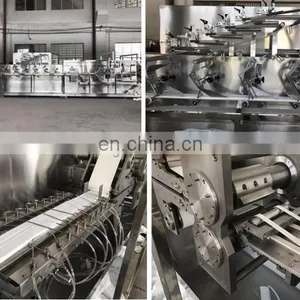

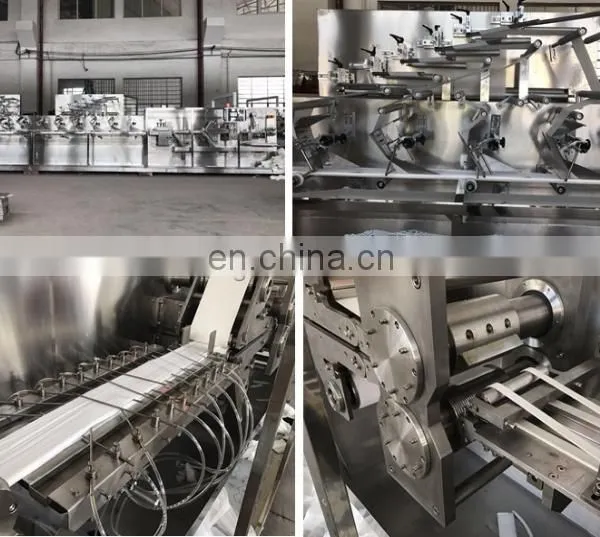

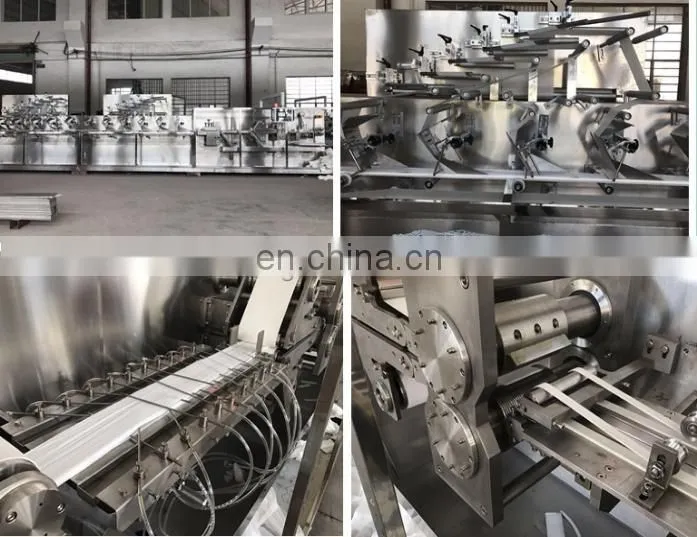

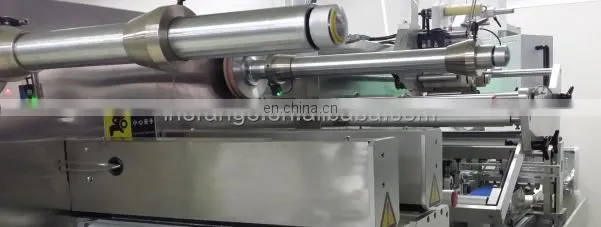

MACHINE IN DETAILS



Full Auto High Speed Wet Tissue Folding Wet Wipes Making Machine Baby Wet Wipes Making Machine Wet Tissue Manufacturing Machine

Full-auto wet wipes Packing Machine(auto-splicing packing film)

Full Auto High Speed Wet Tissue Folding Wet Wipes Making Machine Baby Wet Wipes Making Machine Wet Tissue Manufacturing Machine

Production type: baby wet tissue

Tip: equipped with 8 units of servo motors

Production process : connect to 2700AB/12 folding machine → feeding wipe automatic  →conveying to packing machine → setting packing film → setting window hole label  → Central sealing →End sealing and reciprocating cut → Output finished products.

MainTechnical parameter:(Suitable to pack :40-120pcs/bag)

Product speed:30-60bag/min

Diameter of raw film roll:≤380mm

Width of raw film roll:≤420mm

Wrapping material:PP,OPP,PET,PE, and all suitable films

Shapes of packing:pillow type packaging

Packing length:100-300mm(touch screen setable)

Packing Width:80~150mm(adjustable)

Height of packing:10-100mm (adjustable)

Horizontal sealing pattern:reciprocation heat sealing

Drive motor pattern: all servo drive

Control pattern:Yaskawa MOTION control system

Operation interface:7 inch LCD

Film supply system:servo drive

Horizontal system:servo drive

Feeding system:servo drive

Labeling system:servo drive

Punching system:servo drive

Horizontal protection:Torque overload protection

Air requirements:0.5-0.8Mpa  0.01m3/min

Electric power requirements:380VAC  50/60HZ

General power:7.6KW

Dimension of Machine :  5410×1150×1900mm

Standard equipment:Date printing unit,Punching unit,Labelling unit,Inserting corner unit,Electrical eye tracking automatically

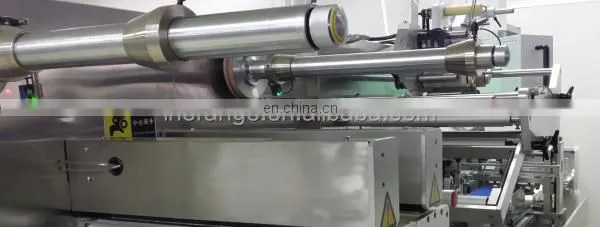

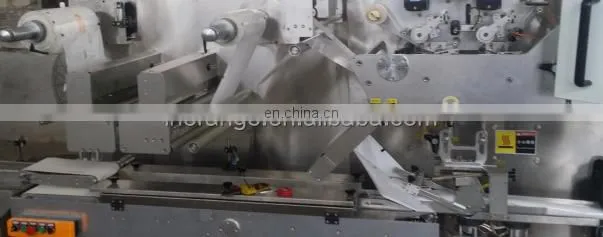

MACHINER IN DETAIL AFS:
