Most popular Mini round hay baler machine / compact hay baler machine
- 1000 per Month
- T/T Credit Card
You May Like
-
Best price of the wheat harvester walking tractor reaper binder
-
Cheap price factory manufacture maize milling machine for sale in uganda
-
wholesale best price maize mill machine of uganda
-
High Efficiency Nut Colloid Mill Cocoa Bean Grinding Production Line Peanut Butter Making Machine
-
hot selling machine to make rice cracker
-
coconut husk corn tiger nuts grinding machine in india
Product Description
Most popular Mini round hay baler machine / compact hay baler machine !
Specifications:
1. Hay ,grass, straw Bundling Machine
2. Round hay bale wrapper, match with tractor
3. ISO certification
Introduction:
mini round hay baler machine applications
This straw collecting and baling machine is widely used in collecting and bundling dry and green grass,
straw, wheat stalk, corn stalk. It is convenient for transportation, reserve and deep processing, and it
is match with envelop machine to achieve the enveloping of ensile.
mini round hay baler machine working theory
This mini hay baler machine is suitable for the tractor with more than 18-45 horse power. This machine
is composed of the picking system, rolling pressing system, threading system and bale locating system
which bales the soft culm and grasses (rice straw, wheat straw, grass etc) fully automatic. The finished
density of the bale is about 90kg/m³.
mini round hay baler machine working procedure
The Power conveyor driven shaft releases the power to bundling machine's power-input shaft through
universal drive shaft, chain sprocket, and rotary platen system and picking system. Hydraulic power
driving joint controls the cylinder piston to enable the bale putting. The baling machine is already adjusted
into the suitable height. When the machine is going along with the tractor, the hay is picked into rotary
platen chamber and rotating bigger and bigger, then get into very tight round bale. When the density of the
bale is OK, the alarming system will start to sound, driver should stop forwarding, push the threading clutch.
When find the speed of threading is faster, looses clutch, keeps the power conveyor driven shaft working to
start thread. Driver should pull the hydraulic controlling stick to change the direction of the hydraulic valve,
and then the cylinder will work and throw the bale out. After throwing the bale out, correct the hydraulic
valve, open rear rack to forwarding again for the second cycle.
mini round hay baler machine parameters
Pickup Width(mm) | 800mm |
Size of bale H*W(cm) | Dia610*700mm |
Length of bale(cm) | 700mm |
Density of bale(kg/m³) | Adjustable |
Efficiency(bales/hour) | 2-5km/h |
Weight(kg) | 440kg |
Power(HP) | 25~50HP |
Bale release | Alert, discontinuous bale and release, hand hydraulic release |
Packaging & Delivery:
Packaging Detail: | Export Standard |
Delivery Detail: | 15 working days |

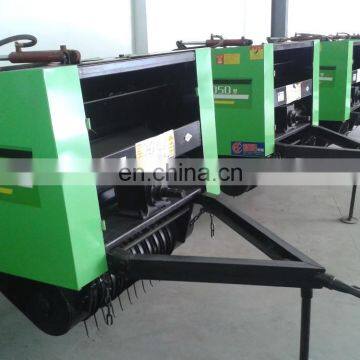

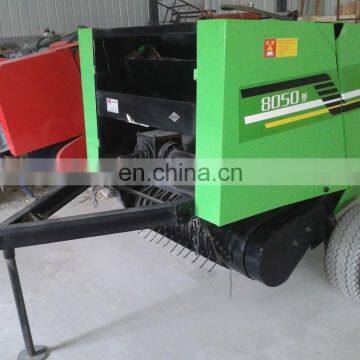

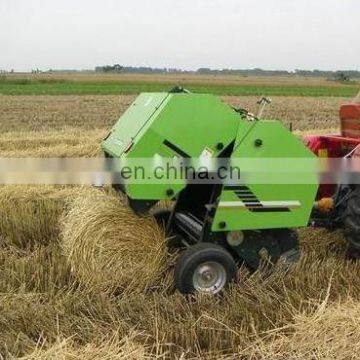

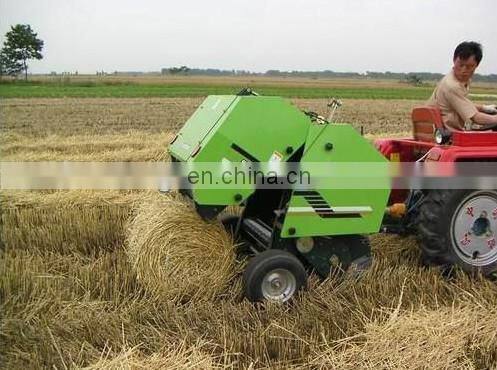

Picture:
Q1: What are the payment terms?
A: We usually accept payment by T/T, L/C, Western Union or Escrow.
Q2 : Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be custom. Or if you have your own designed idea and that will be our honor to customize for you.
Q3: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are alibaba legitimate certification company (VIP), and we support payment terms like L/C, Escrow, to ensure your safety.
Q4: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!
Q6 : Where will the orders be shipped from?
A: It will ship from the main ports China. And We will find the shipping company which will offer the best and most economical freight for our customers.
After Sales Service:
1.All the products have one year guarantee.
2.Providing professional installation instructions and video of troubleshoot.
3.We supply after sales service for 24 hours, 7 days per week. Customer can contact us any time.
4.When some problems can’t be solved by customers, our engineer can go to door to support.
