Diesel Engine Small Water Well Drilling Rig Machine Bore Well Drilling Machine Price
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Hard Rock Water Well Drill Machine Track-type Water Well Drilling Rig Drilling Equipment
-
Cheap Water Well Drilling Equipment 100 Meter Water Well Drilling Rig
-
Well Drilling Machine Portable Diesel Water Well Drilling Rig
-
Water Well Rotary Drilling Machine Deep Drilling Equipment Water Well Drilling Rig
-
Small Water Well Drilling Rig Machine Well Drilling Rig 300 Meter
-
230m Deep Portable Water Well Drilling Machines Cheap Water Well Drilling Rig
Product Description

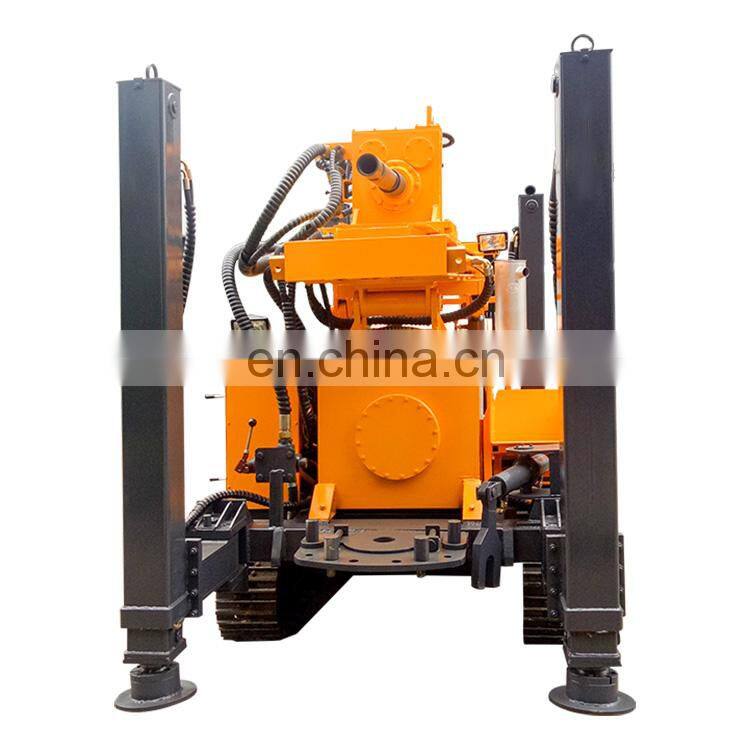

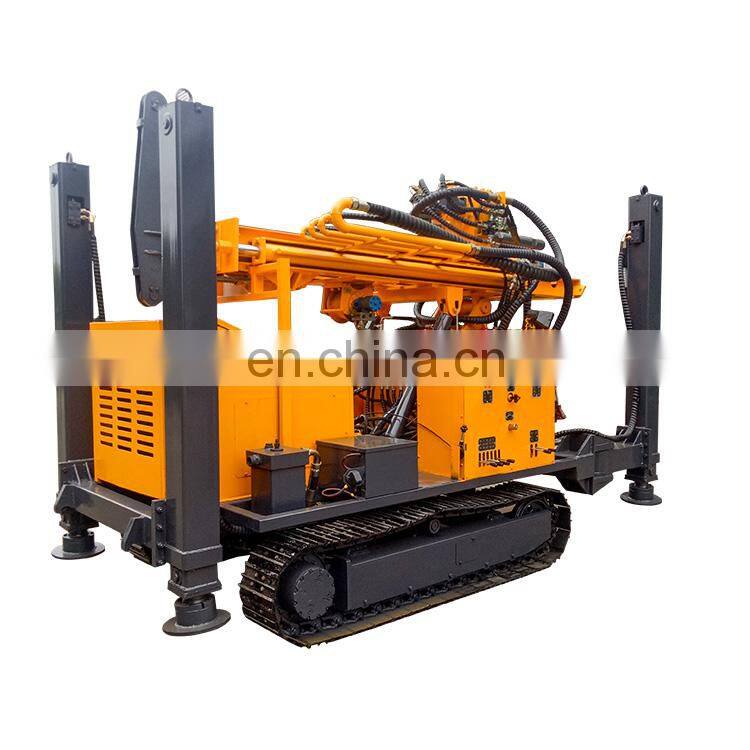

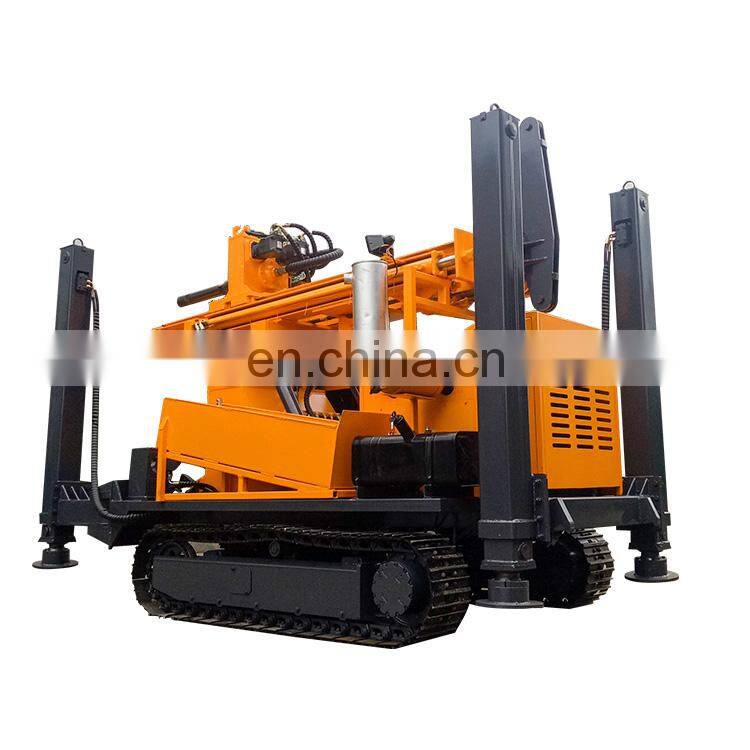

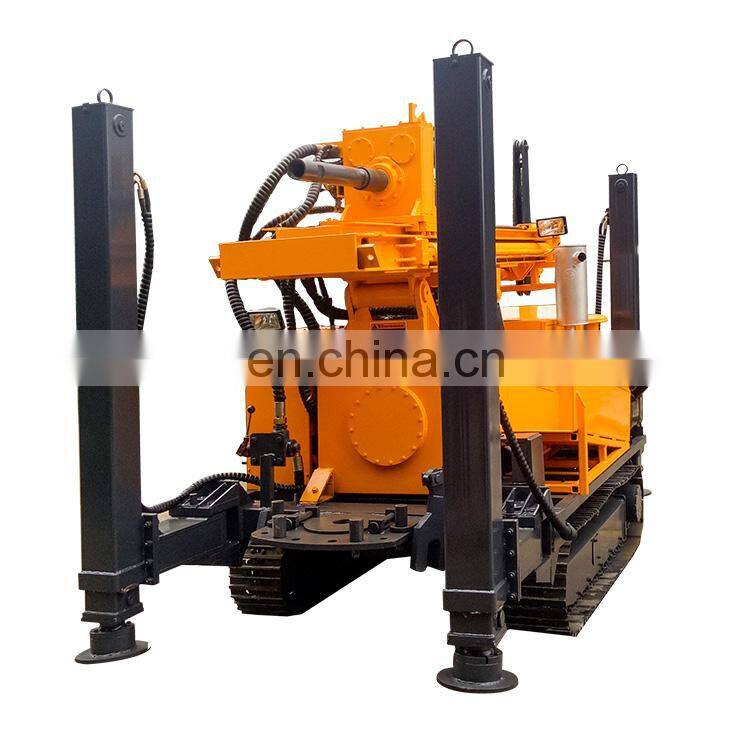

Diesel engine small water well drilling rig machine bore well drilling machine price
Product Overview
Features of pneumatic water well drilling rig:
1. The engine uses a high-power engine;
2. Walking device: the walking motor is equipped with a gear box, which is durable and has a long life;
3. Hydraulic oil pump; parallel gearbox design with separate oil pump units, sufficient power supply and reasonable distribution, unique hydraulic system design, simple maintenance and low cost;
4. Power head device; gearbox is cast in one piece, dual motors provide power, large torque, durable, and low maintenance cost;
5. Drilling rig chassis; professional excavator chassis, durable, large load-bearing, wide chain plate, little damage to hard roads;
6. Lifting force; patented design composite boom, the boom is small in size, long stroke, double cylinder lifting, large lifting tonnage;
7. The lifting boom of each drilling rig is equipped with a stopper to protect the safety of the oil cylinder and ensure the safety of work;
8. Each hydraulic oil pipe is covered with a protective jacket to make the service life of the oil pipe longer.
Product Paramenters
Machine weight (kg) | 6000 |
Overall size (mm) | 3800*1800*2400 |
Walking speed (km/h) | 0～2.5 |
Dynamic parameters | 65kW/2400rpm |
Ground clearance (mm) | 250 |
Gradeability (°) | 20 |
Drilling depth (m) | 200 |
Working wind pressure (MPa) | 1.05～2.46 |
Total air consumption (m3/min) | 16～35 |
Drill rod diameter (mm) | Ø76/Ø89/ Ø102 |
Drill rod length (mm) | 3000 |
Drilling (drill) diameter (mm) | Ø115～Ø350 |
Propulsion (kN) | 8 |
Lifting force (kN) | 16 |
Rotating speed (rpm) | 40-160 |
Rotation torque (N·m) | 4000 |
