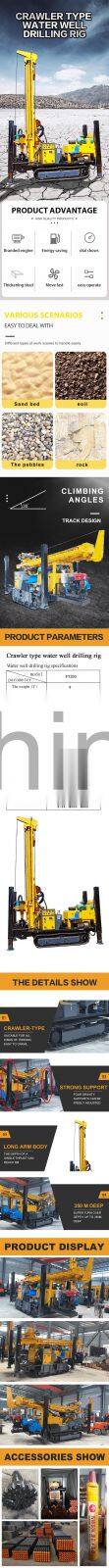

180m Drilling Depth High Quality Mobile Water Well Drilling Rig Machine FYX180 for Sale
- T/T Credit Card
You May Like
-
High Quality 250m Portable Crawler Truck Mounted Water Well Drilling Rigs / Water Well Drilling Machine
-
FYX180 180 Meter Depth Borehole Drilling Equipment Core Drilling Water Well Drilling Rig
-
Multi-function Crawler Type Water Well Drilling Rig
-
Hard Rock Mining Water Well Drilling Rig Blasting Hole 300m 400m Well Drilling Rig Machine
-
300m 400m 500m Pneumatic Drill Rig Mountain Rock Soil Underground Water Well Drilling Rig Machine
-
Borewell Water Well Drilling Rig Machine Price for Sale
Product Description
Crawler type air penumatic drilling mud drilling hydraulic DTH FYX180 water well drilling rig
FX series water well drilling rig is a lightweight, efficient and multifunctional drilling equipment, The water well drilling rig is mainly applicable to industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc.. Pneumatic well drill is especially suitable for water intake in mountainous and rocky strata.
* Fully hydraulic control is convenient and flexible: can adjust the drilling speed, torque, and promote axial pressure, anti-axial pressure, propel and improve the speed to meet the different conditions use of drilling tools and different construction needs.
* Top drive rotary drilling: easy to install and remove the drill rod, shorten the auxiliary time, and fasten the drilling of follow-pipe.
* Multi-function drilling: A variety of drilling processes can be used on this rig, such as: DTH drilling, mud drilling, roller cone drilling, drilling with the follow-pipe and the being developed core drilling, etc. This drilling machine can be installed, according to user needs, mud pump, generator, welding machine, cutting machine. Meanwhile, it also comes standard with a variety of winch.
* High working efficiency: thanks to full hydraulic and top drive rotary drilling, this drilling rig is adapt to a variety of drilling technology and drilling tools, has convenient and flexible control, fast drilling speed, short auxiliary time, and thus high operating efficiency.
* Low cost: drilling on the rock is dominated by DTH drilling technology, DTH hammer rock drilling operation is high efficiency, drilling cost of per meter is lower.
* High leg crawler type: high leg is easy for loading and unloading, no need of crane in truck loading. Crawler walking is more adapt to the movement in muddy field.
* The role of the oil mist: drilling on the rock is dominated by DTH drilling technology, DTH hammer rock drilling operation is high efficiency, lubricated impactor has longer service life, drilling cost of per meter is lower.
* Drilling rig chassis: It can be crawler chassis, and also be truck-mounted chassis.
Technical parameters for Water well Drilling Rig FYX180 Pneumatic well drill rig
|
Model |
FYX180 |
|
Total weight |
1.5t |
|
The hole diameter |
140-254mm |
|
Drilling depth |
180m |
|
One time advance length |
3.3m |
|
Walking speed |
2.5kg per hour |
|
Climbing angles |
30 |
|
Equipped capacitor |
55kw |
|
Using air pressure |
1.7-2.5MPA |
|
Air consumption |
17-31 m³/min |
|
Drilling pipe diameter |
Φ76 |
|
Drilling pipe length |
1.5m 2m 3m |
|
Rig lifting force |
10T |
|
Swing speed |
45-65rpm |
|
Swing torque |
3200-4500NM |
|
Dimension |
4000*1600*2200mm |





Sherry
Luohe Orange Mechanical Equipment Co.,Ltd
Mobile/wechat/whatsapp:+8615939556928
Skype:sales02-orange; E: sales02(at)
Address: F5, Fortune PlazaSongshan Road, Luohe, Henan, China.
